5.08mm Pitch Pl able Terminal Block

Model:	YC100-508-4P
Brand:	DERKS
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Terminal
Label:	terminal block , cable connector , PCB connector
Price:	US $0.14 / pc
Min. Order:	100 pc

Inquire Now Add to Basket

Member Information

Zhejiang Deerkesi Electrical Co.,Ltd

Free MemberZhe Jiang - China

Live Chat:

Last Online:03 Jan, 2021

Product Description

5.08 pitch 2~24 pole 4 way YC100-508 PCB terminal connector

Product Features:

1.ROHS

2.Made of PA66,UL94V-0

3. Good performance in quick connection of wires

Material and plate		Electrical Specifications
Crimping frame	Brass nickel plate	Rated Voltage	300V
Plastic Parts	PA66,UL94V-0	Rated Current	16A
Screw	M2,steel zin plate	Contact resistance	20MΩ
Color	Green	Insulation resistance	5000 MΩ DC500V
Working Conditions		Insulation withstand voltage	AC2000V/1Min
Operation temperature	-40°C ~105°C	Wire range	28-12 AWG 1.5MM2
Instantaneous temperature	250°C 5SEC	Stripping Length	5-7MM

Payment Terms:	TT

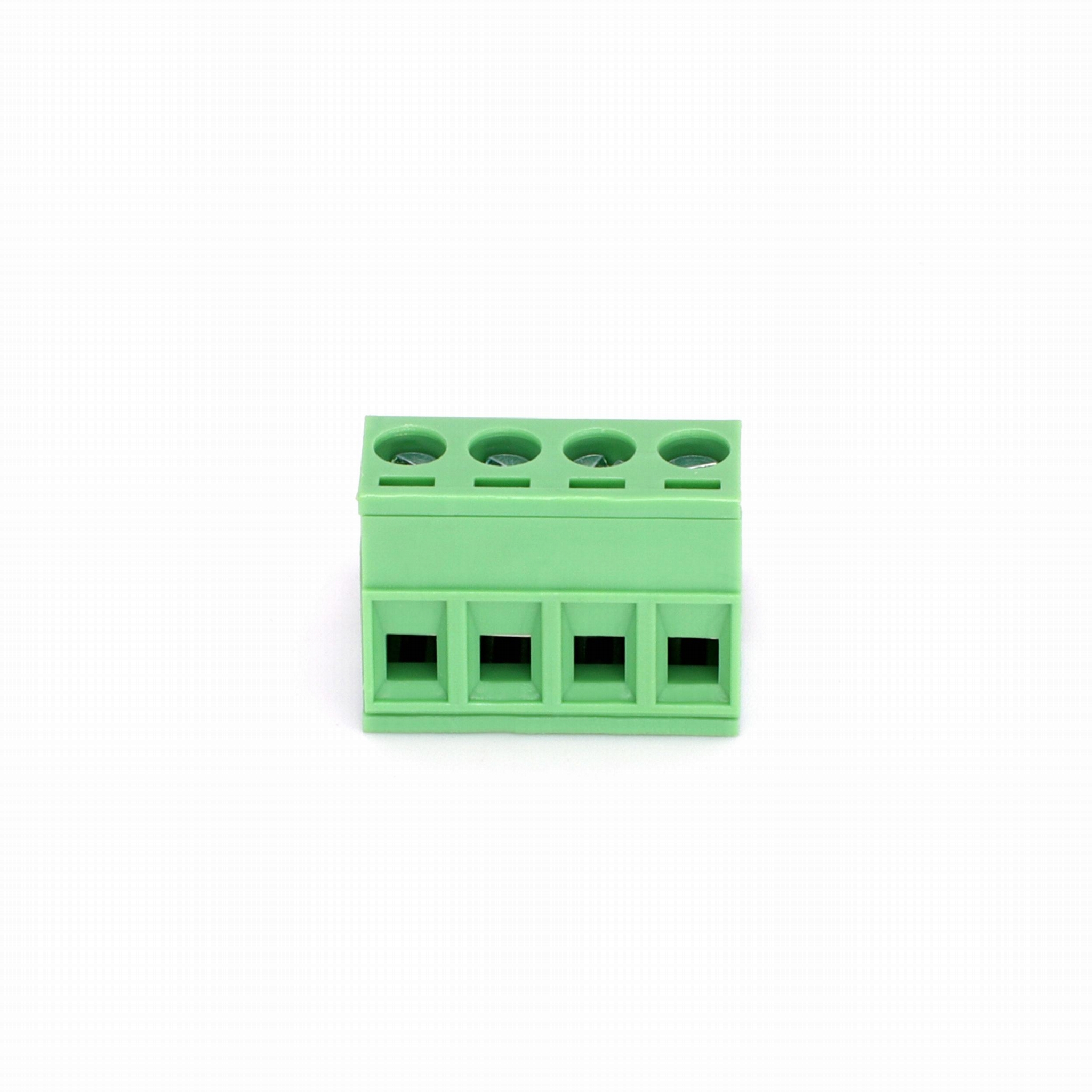

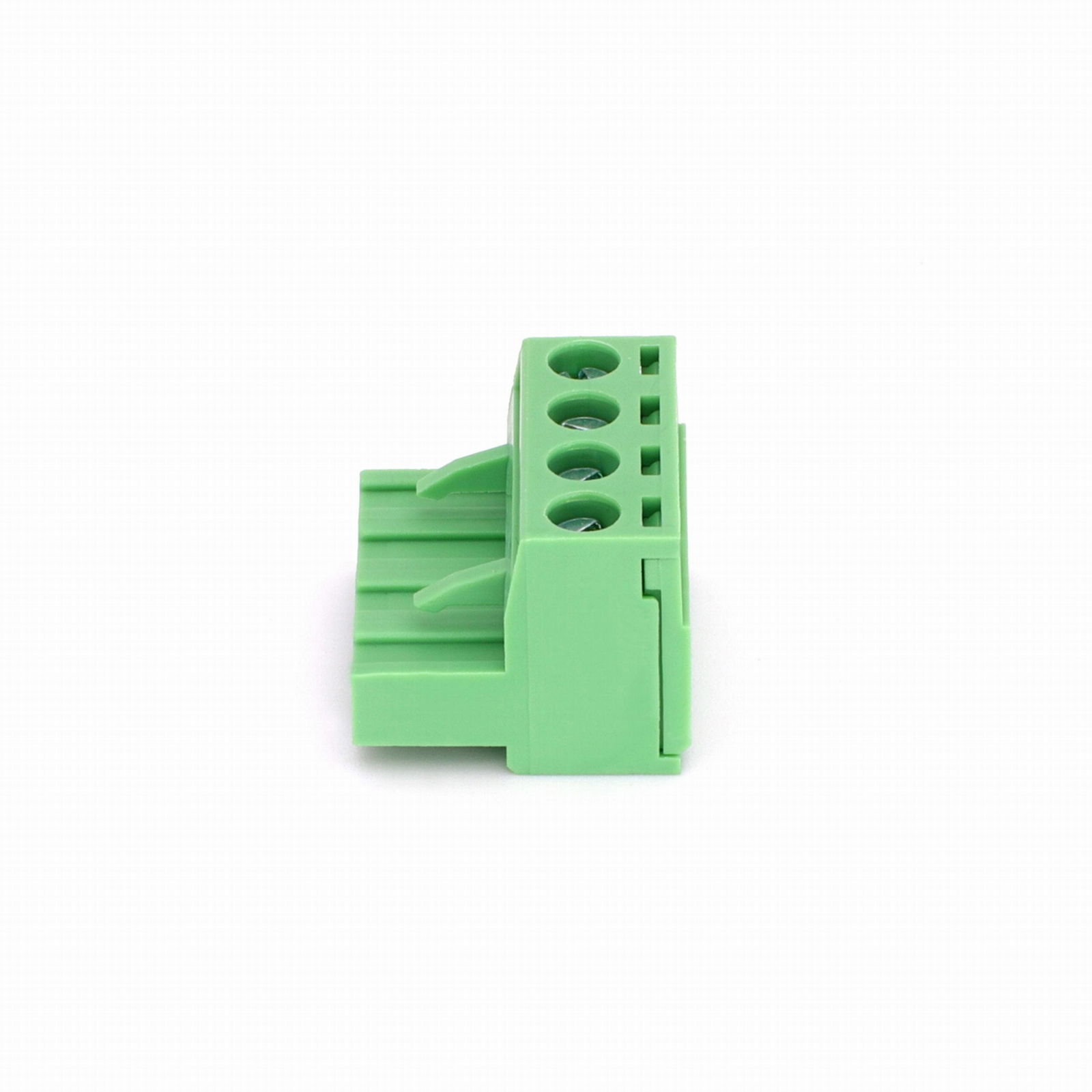

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
