| Model: | drillstar-2P |
|---|---|
| Brand: | drillstar |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | deep hole drilling , drilling machine , gun drilling machine |
| Price: |
US $25000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:31 Mar, 2020 |

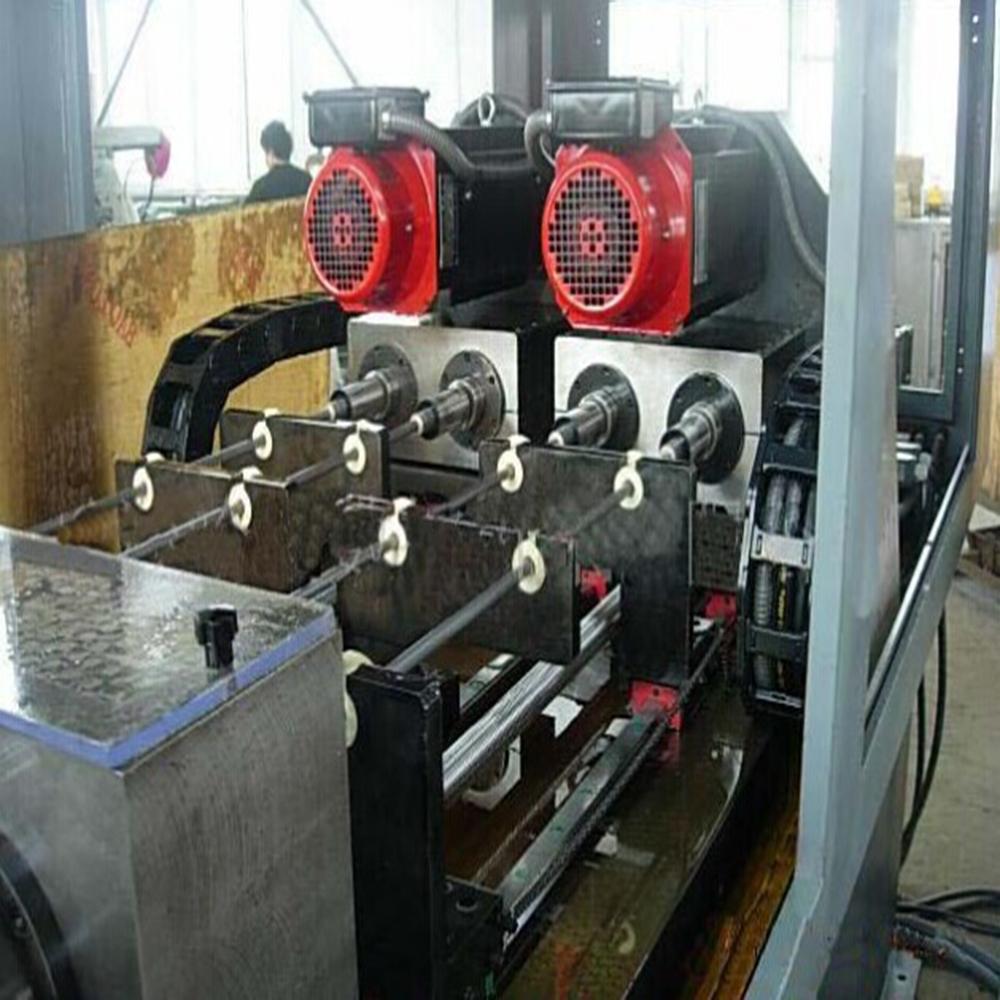

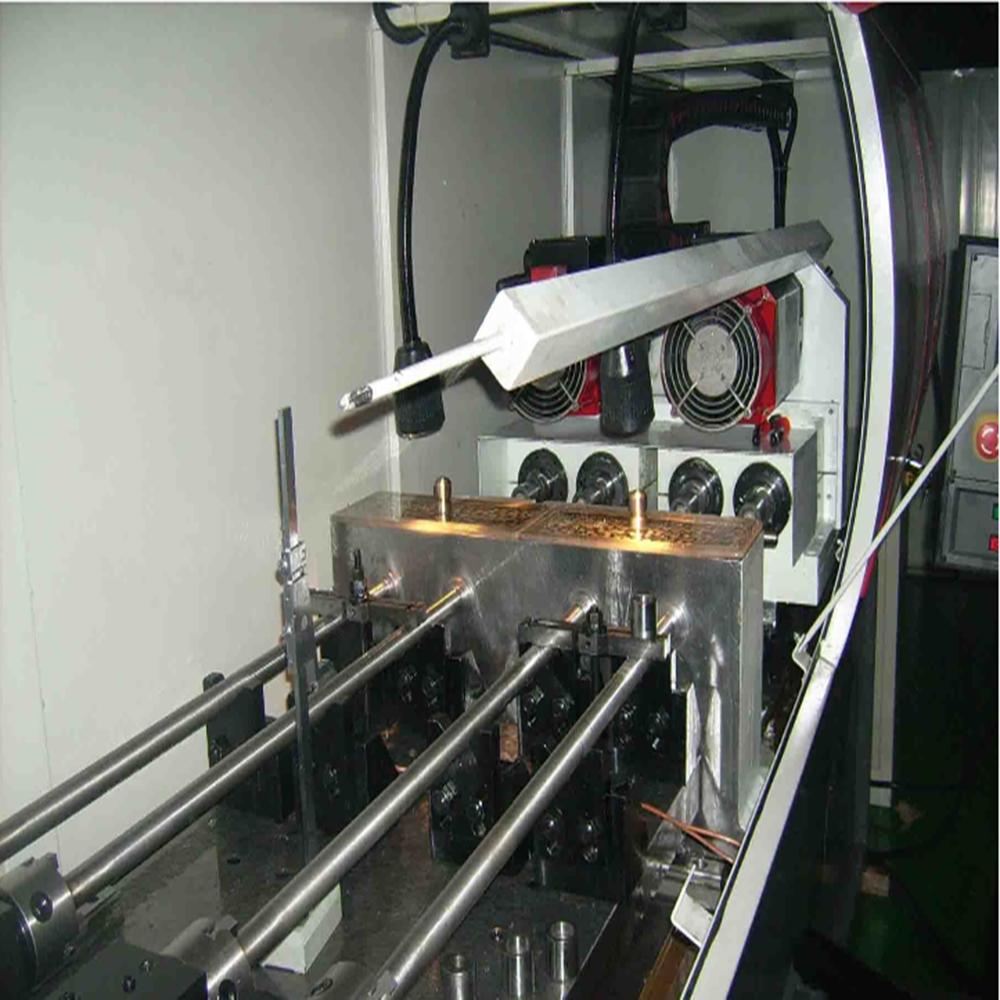

ZKB2102 is CNC Deephole drilling machine suited for drilling 3-D or 2-D hole system. It is adopting chip moved outer, with high efficiency, high accuracy , drill small-holes by "gun-drilling "method. It can instead of drilling,counting,reaming by one drilling process obtain sourcing accuracy. Bord accuracy is IT7-IT10, roughness Ra3.2-0.04µm, linearity<=0.05mm in 100mm length. It is used widely in plastic and rubber industry, hydraulic mechanism, automobile and tractor, generator and aviation industry for machining deephole porforation; such as cooling hole, elecheating hole, valve distributor, pump steering sharft, spindleheat-exchanger, plate, etc.
Main Specifications and Features
|
SPECIFICATION |
TECHNICAL DATA |
|
Dia.range of drilling hole |
4-20mm |
|
Max.depth of drilling hole |
1000mm |
|
Max.vertical travel of elevate tabel |
300mm |
|
Max.cross travel of table |
800mm |
|
Dimension of table |
1100×1100mm |
|
Max.weight of workpiexe machined |
1t |
|
Range of spindle speeds(stepess) |
800-7000r/min |
|
Range of speeds(stepess) |
10-500mm/min |
|
Pressure range of cutting coolant |
1-10Mpa |
|
Flow range of cutting coolant |
6-100L/min |
|
Feed motor power |
1.6kW |
|
Drill-bar box motor power |
4kW |
|
General power |
28kW |
|
CNC SYSTEM |
FANUC OI MC |
|
Machine overall dimensions |
4380×2885×2065mm |
|
Packing dimension of main machine |
4130×1880×2600mm |
|
Packing dimension of cooling set |
2700×1920×1755mm |
|
Packing dimension of cabinet |
1100×820×2200mm |
|
Gross weight |
7t |
We can meet different processing requirement provide different technical proposal.
| Payment Terms: | T/T, |
|---|---|
