PRODUCT DESCRIPTION:

The non-longitudinal ribbed steel resin anchor bolt is a kind of bolt made by the spheronization process. The strength of the thread segment is greater than the strength of the rod body, and the thread section has good bending and shearing performance. It is a new type of anchor bolt with high strength support in the roadway.

PRODUCT SPECIFICATIONS:

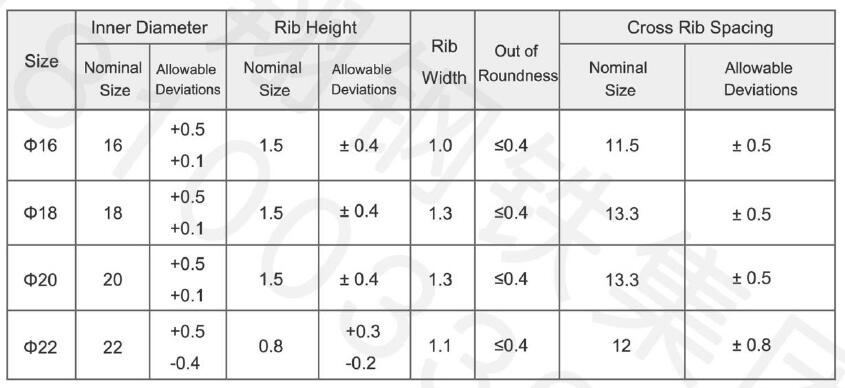

Dimensions and allowable deviations of hot-rolled ribbed steel bars with no longitudinal ribs(Unit:mm)

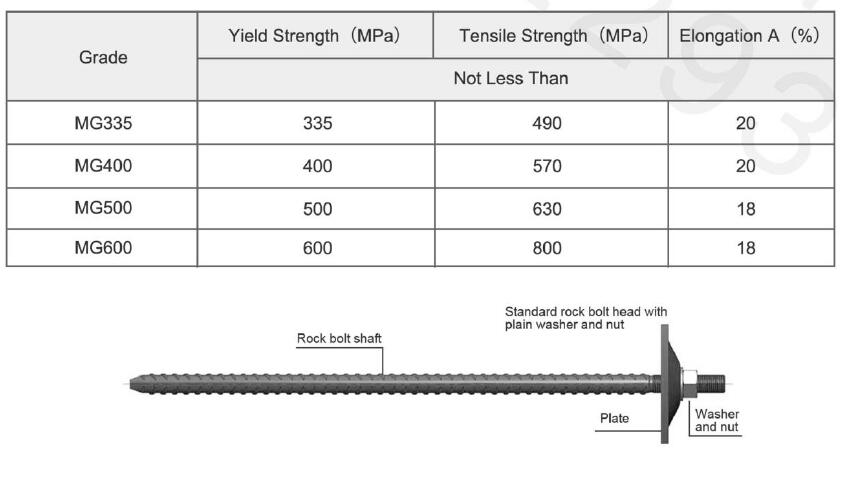

Mechanical properties of hot-rolled ribbed bars with no longitudinal rib anchors

FEATURES&ADVANTAGES:

Available in left hand or right hand thread

Higher thread ribs mix resin better and improve anchorage

Suitable for using with either resin cartridges or cement grout

Equal strength on the entire length

Due to continuous thread on entire length

The nut can be fastened upward at any place

Increase the material utilization ratio and save cost

Available in black or hot dip galvanized

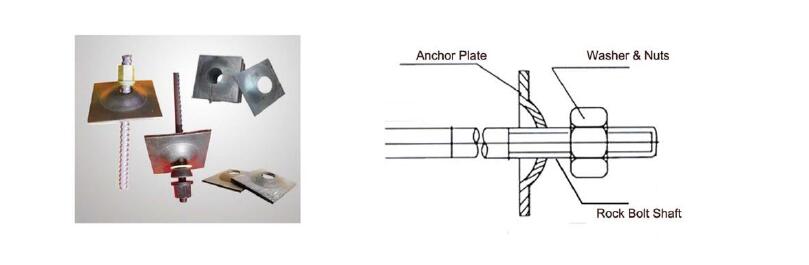

ACCESSORIES:

Domed Nut, Hex Nut, Anti-Friction Washer, Domed Ball

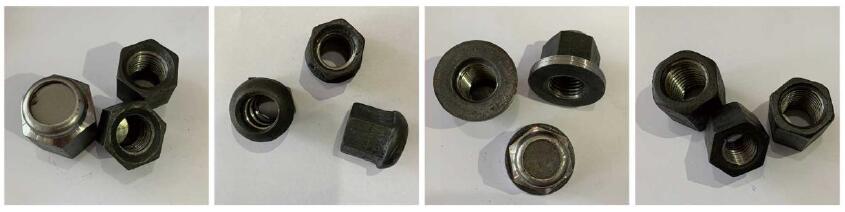

Various Nuts:
