Automatic 3360 UV printer with double printheads

Model:3360
Brand:COLORSUN
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Printer
Label:double printheads , phone case , Varnish print
Price: US $4699 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Colorsun Digital Technology Co., Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:26 Oct, 2020

Product Description

Automatic 3360 UV printer with double printheads

Advantages:

1. White ink circulation reduces clogging.

2. The all-aluminum platform is light in weight,and the platform adopts screw transmission to ensure high stability.

3.Varnish print.

A3+  Full-automatic  UV Printer

Model

3360UV

Color configuration

C M Y K W V

Printing accuracy

4PASS、8PASS、16PASS、32PASS

Emboss printing

able

Printing speed

8PASS:7min/board,3-5 square meters/H

Printing varnish

able

Max Printing Size

330*600mm

Print height

0-170mm,
Infrared altimetry

Ink consumption

1 square meter/20ml

UV lamp power

150W

Ink supply method

12 colors continuous ink supply

UV lamp cooling

water cooling + air cooling

White ink output

Support/white color with the same

Packsge dimensions

L1020*W900*H900mm

Print nozzle

XP600 ( double nozzle) 330*600mm

Equipment size

L920*W800*H700mm

Printing platform
Standard software

Main Top Monte Windows

Net weight/gross weight

65KG/105KG

Applicable system

4 color mode: C M Y K LC LM WWWWWW
6-color mode: C M Y K C M   WWWWWW
Varnish mode: C M Y K C M  WWW V V V

Outer packaging

Export wooden box (with forklift feet)+foam

Platform adjustment

touch screen + infrared height measurement

Platform driver

Pulse servo motor drive

Voltage /plug

wide voltage AC100-230V / optional according to the country

Sprinkler protection

intelligent infrared anti-collision system, ink pad maintenance liquid anti-clogging.

Print media

Mobile phone case / leather/ lithograph / crystal / acrylic / card / CD / U disk /

Comment

Ming version and other plane
The printer uses a stable walking platform technology and a leading stepper motor drive. Direct in and out. At the same time ,combined with infrared height measurement ,laser positioning , water cooling + air cooling , the printing range iswide.
Products within 170mm height can be printed

Warranty

Three years warranty [Ink-contact parts (or parts damaged by ink) are not warranted.

Shenzhen colorsun digital technology co.,Ltd
WhatsApp : +86 18607557659
website : www.color-sun.com

UV LED Ink:

http://www.color-sun.com/sdp/337300/4/pl-1485445/0-2943127/Printer_Ink.html










Advantages︰:White ink circulation reduces clogging. The all-aluminum platform is light in weight, and the platform adopts screw transmission to ensure high stability. Varnish print.

Product Image

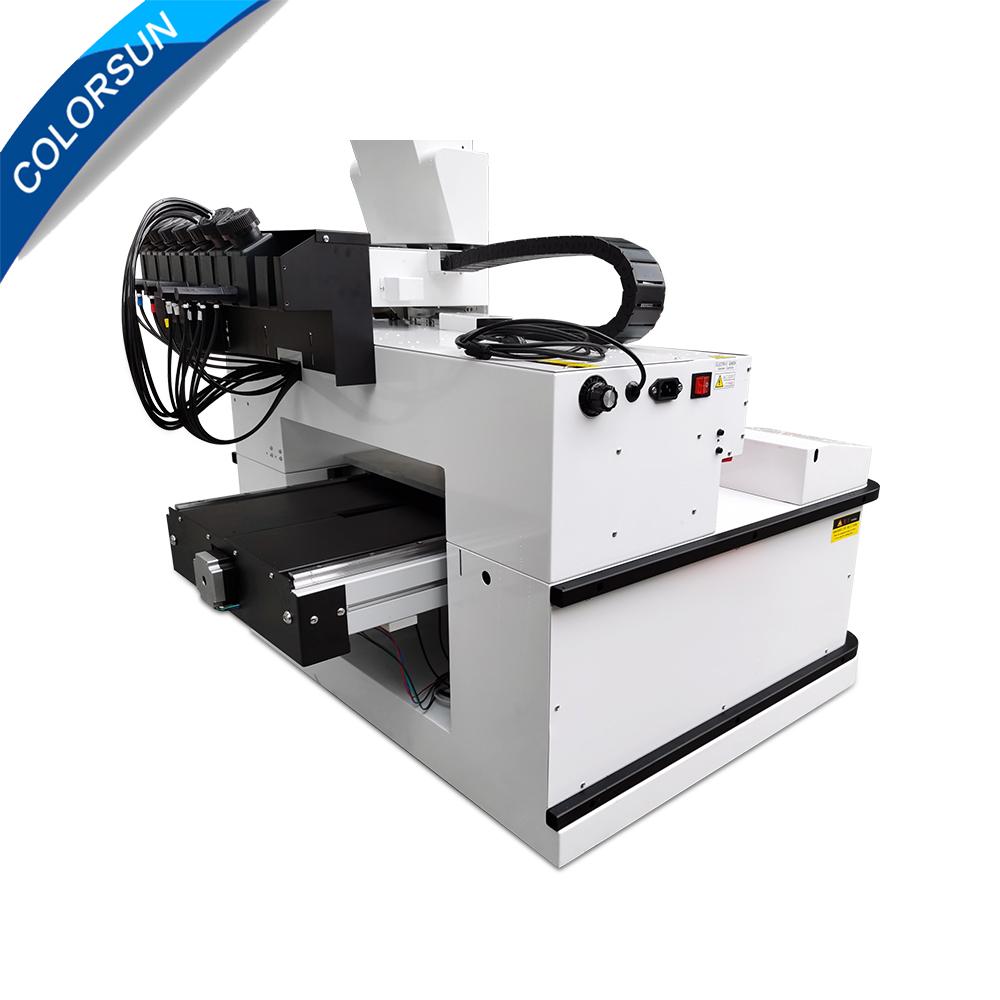

Automatic 3360 UV printer with double printheads 1
