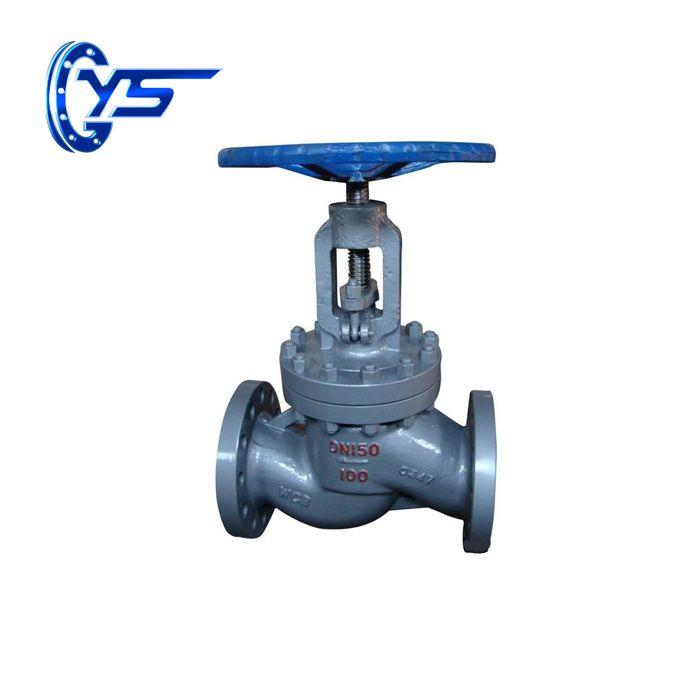

DN 15-250mm Cast Steel Globe Valve globe valve manufacturer GOST SERIES
Medium temperature: ≤425 ℃
Operating mode: manual / electric
medium: water, oil, steam, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: WCB
Connection method: flange
Square Flange Globe Valve Details
|
Cast Steel Globe Valve Material of main parts of cast steel globe valve |
|
|
Part Name |
material |
|
Body / bonnet |
WCB |
|
gate |
WCB |
|
Valve stem |
WCB / 2cr13 |
|
Stem nut |
Ductile iron / brass |
|
Cast Steel Globe Valve Performance specifications of cast steel globe valve |
|||||
|
model |
Nominal pressure
|
Test pressure (mpa) |
proper temperature |
Applicable medium |
|
|
Strength (water) |
Sealed (water) |
||||
|
J41 / 941H / Y-16C |
1.6 |
2.40 |
1.80 |
—29—425 ° C |
Water, steam, oil, etc. |
|
J41 / 941H / Y-25C |
2.5 |
3.80 |
2.80 |
||
|
J41 / 941H / Y-40C |
4.0 |
6.15 |
4.51 |
||
|
J41 / 941H / Y-64C |
6.4 |
9.75 |
7.15 |
||
|
External dimensions and connection dimensions of cast steel globe valve |
||||||||
|
model |
Nominal diameter
|
Size (mm) |
||||||
|
L |
D |
D1 |
D2 |
bf |
z-φd |
H1 |
||
|
J41 / 941H / Y-16C |
15 |
130 |
95 |
65 |
45 |
14-2 |
4 * φ14 |
205 |
|
20 |
150 |
105 |
75 |
55 |
14-2 |
4 * φ14 |
211 |
|
|
25 |
160 |
115 |
85 |
65 |
14-2 |
4 * φ14 |
223 |
|
|
32 |
180 |
135 |
100 |
78 |
16-2 |
4 * φ18 |
250 |
|
|
40 |
200 |
145 |
110 |
85 |
16-3 |
4 * φ18 |
288 |
|
|
50 |
230 |
160 |
125 |
100 |
16-3 |
4 * φ18 |
321 |
|
|
65 |
290 |
180 |
145 |
120 |
18-3 |
4 * φ18 |
341 |
|
|
80 |
310 |
195 |
160 |
135 |
20-3 |
8 * φ18 |
385 |
|
|
100 |
350 |
215 |
180 |
155 |
20-3 |
8 * φ18 |
437 |
|
|
125 |
400 |
245 |
210 |
185 |
22-3 |
8 * φ18 |
471 |
|
|
150 |
480 |
280 |
240 |
210 |
24-3 |
8 * φ23 |
516 |
|
|
200 |
600 |
335 |
295 |
265 |
26-3 |
12 * φ23 |
610 |
|
Tips:
Compact structure, reasonable design, good valve rigidity, smooth passage.
2.The use of flexible graphite packing, reliable sealing, light and flexible operation
Flanged Globe Valve Applications:
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.
Product Advantages:
We have Sand or Precision casting technology,So we can as your drawing design and production.
Customers' logos are available cast on the valve body.
3. All our casting with tempering procedure before Processing.
4. Use the CNC lathe during whole process.
5. The disc sealing surface use plasma welding machine welding.
6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.
7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.
Company Advantages:
1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!
Our Flange Ball Valve’s materials mainly include WCB cast iron stainless steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve, butterfly valve are all our main product.
Click here to learn more about valves.
