| Model: | YX24 |
|---|---|
| Brand: | Superda |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | solar bracket , solar brack machine , pv support machine |
| Price: |
US $25000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:31 Mar, 2020 |

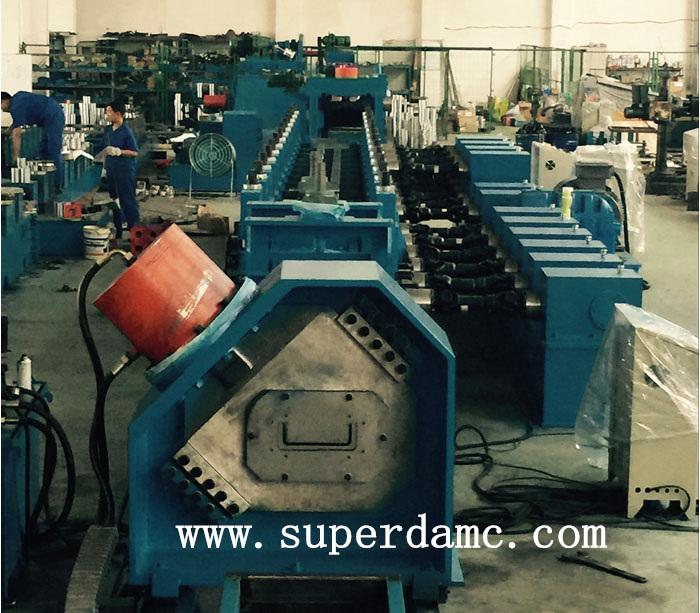

Solar bracket roll forming machine production line
Roll forming machine for production solar bracket named as solar pv bracket, solar photovoltaic bracket.
Roll forming machine for solar bracket production
Solar Bracket Suport Post Roll Forming Machine Technical parameters (Item:YX41-41)
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
| T.(mm) | 1.6-2.0mm | |||
| Yield Strength (Mpa) | Q235-300 | |||
| 2 | Forming product Width | 41mm | ||
| 3 | Forming speed (m/min) | 10-18m | Including hole | |
| 4 | Forming main power (KW) | 7.5 KW | FYR | |
| 5 | Hydraulic power (KW) | 7.5 KW | FYR | |
| 6 | Voltage | AC380V，50Hz，3P | ||
Solar bracket production line process
(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
Item YX41-41
Solar bracket roll forming machine for producing solar industry support using bracket.
Solar bracket application
Solar bracket allows the components to be angled according to different regions, so that the local solar energy resources can be fully utilized to achieve the maximum power generation efficiency of the solar modules. At the same time, the detailed analysis and practice of the connection mode, material selection and load analysis of the PV module are carried out, so that it has good physical properties such as earthquake resistance, wind resistance, snow pressure resistance and corrosion resistance, so that the PV module is applied more. A wide range of areas.
Main material: Q195 Q195L Q235 Q235B Q345B, etc.
