| Model: | VN-CFB |
|---|---|
| Brand: | VINER |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products |
| Label: | Ceramic Fiber Board , Ceramic Fiber , Ceramic Fiber Boards |
| Price: |
US $35.8
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:17 Jun, 2021 |

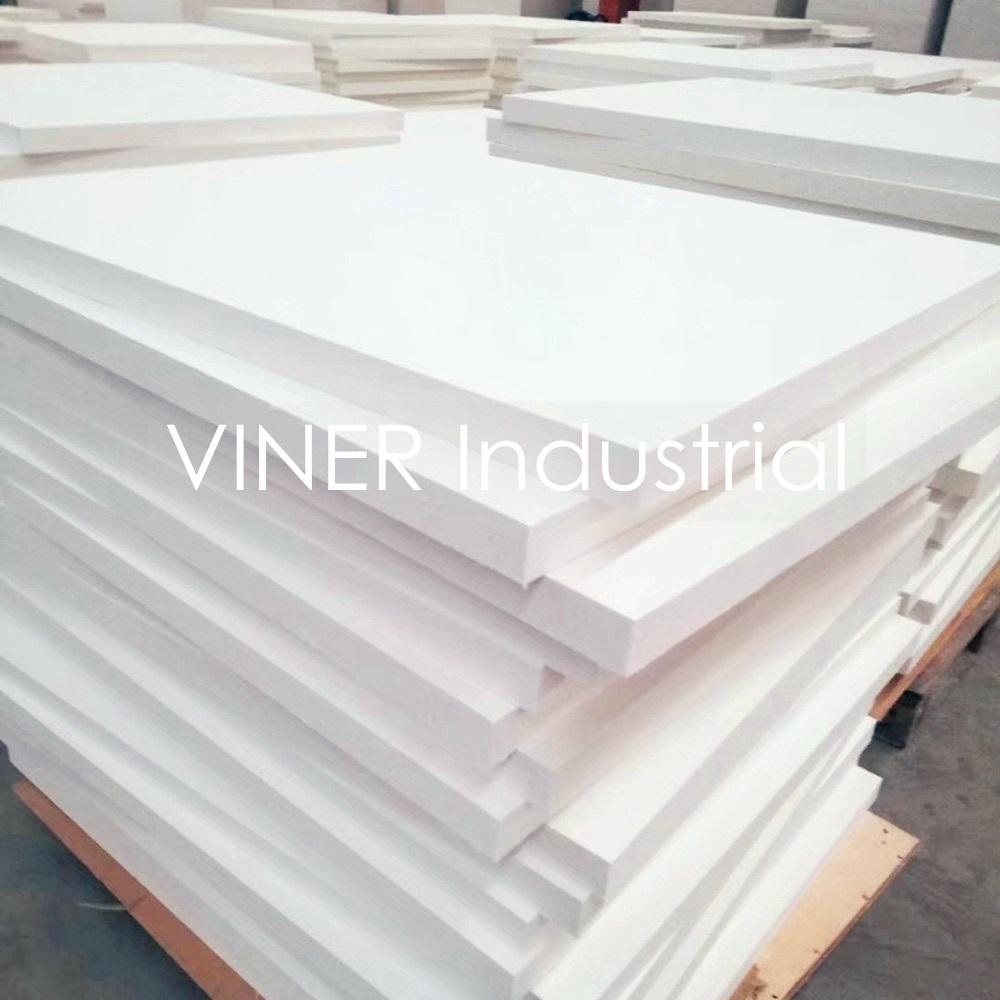

VINER Industrial Ceramic Fiber Boardand Vacuum Shaped Products are made of high purity Alumina fibrous and Alumina powder, to be formed and fired in special equipment with advanced patent process, can withstand temperature up to 1800 Celsius.
According to different temperature grades, refractory fiber product may add proper organic and inorganic additives into polycrystalline mullite fiber, high alumina fiber, zirconic fiber, and aluminum silicate fiber, etc. by use of vacuum moulding methods, to manufacture all kinds of products with different temperature grades: 1100 degree, 1260 degree, 1430 degree, 1600 degree, 1700 degree and 1800 degree. Its varieties include two classes: fiber plate and fiber special-shaped product.
VINER Industrial Ceramic Fiber Board Physical Character:
|
Density(Kg/m3) |
300-600 |
|
|
Strength to resist bending(MPa,25C) |
0.72 |
|
|
Linear shrinkage rate % (1600Cx8hrs) |
0.13(1.7)* |
|
|
Expansion rate at %(600C) |
0.28 |
|
|
Average modulus of linear expansion (x10-6/K) |
1.77 |
|
|
Thermal conductivity rate
|
400C |
0.147 |
|
600C |
0.186 |
|
|
800C |
0.236 |
|
|
1000C |
0.296 |
|
|
Chemical composition |
AL2O3:87% SiO2:13% |
|
Note: Data are average results of standard tests which are subject to variation, don't show the guarantee data of product quality because of fluctuating within certain range.
VINER Industrial Ceramic Fiber Board Standard size:
25x600x900mm 40x600x900mm 30x600x900mm 50x600x900mm
80x600x900mm 100x600x900mm 120x600x900mm
25x600x1200mm 40x600x1200mm 30x600x1200mm 50x600x1200mm 80x600x1200mm 100x600x1200mm 120x600x1200mm
Note: Other sizes could be customized as your request.
VINER Industrial Ceramic Fiber Board Types:
|
Type |
VN-1100 |
VN-1260 |
VN-1400 |
VN-1600 |
VN-1700 |
VN-1800 |
|
Classification temperature |
1100 |
1260 |
1430 |
1600 |
1700 |
1800 |
|
density (Kg/m3) |
200-300 |
300-400 |
400-450 |
450-600 |
500-600 |
550-600 |
|
Line change (CX24hS) |
1.3 (900C) |
1.1 (1100C) |
1.6 (1200C) |
<2.0 (1400C) |
<2.0 (1500C) |
<2.0 (1600C) |
|
compressive strength |
0.5 |
0.5 |
0.5 |
0.3 |
0.3 |
0.3 |

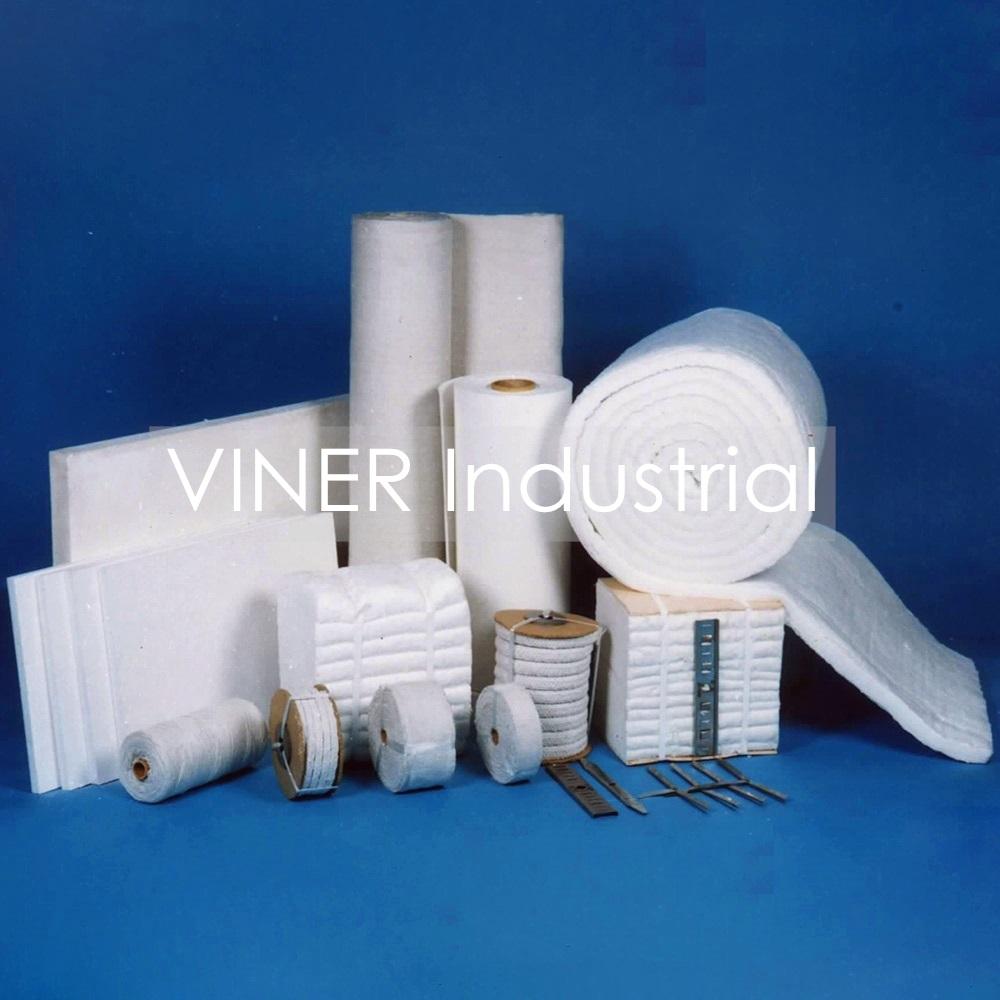

VINER Industrial Ceramic Fiber Products:
Polycrystalline Mullite Ceramic Fiber Board
Polycrystalline Mullite Ceramic Fiber Bulk
Polycrystalline Mullite Ceramic Fiber Blanket
Ceramic Fiber Board
Ceramic Fiber Blanket
Ceramic Fiber Paper
Ceramic Fiber Modulewith kinds of mechanical anchor fixings,
Ceramic Fiber Cloth
Ceramic Fiber Tape
Ceramic Fiber Bulk
Ceramic Fiber Rope (Twisted Rope / Briaded Rope)
Ceramic Fiber Felts
Ceramic Fiber Textiles (Ceramic Fiber Yarn)
Special Shaped Ceramic Fiber Products / Vacuum Formed Ceramic Fiber Products
Company Information
VINER IndustrialSpecializes in 1100, 1260, 1430, 1600, 1700, 1800 and 1900 types Ceramic Fiber Board with customized size and density. Also we can manufacture Ceramic Fiber Blanket/Paper/Cloth/Paper/Module/Rope/Furnace Chamber. Welcome to inquiry for our Ceramics Fiber Refractory, our new fresh prices are waiting for you. Also different sizes and kinds of high temperature furnaces, such as Muffle Furnace, Vacuum Tube furnace, Vertical Tube Furnace, Rotary Tube furnace, Vacuum Crucible furnace, Vacuum Box furnace, Atmosphere Furnace, Bottom Loading furnace, and Vacuum Drying Oven, the chamber sizes could be according to customers' design.
What is more, VINER Industrialproduces and supplies high temperature Kiln Furnace Spare Parts including MoSi2/SiC heating elements, Ceramic Fiber Refractory, Alumina/Zirconia Ceramics, SiC Ceramics, Boron Nitride (BN) Ceramics, Vacuum Flanges, Thermocouple, PID Temperature Controller, Quartz Furnace Tube, Resistance Wire, etc. Ps kindly inquiry us, we will try our best to serve you.
Welcome to visit manufacture line!!
