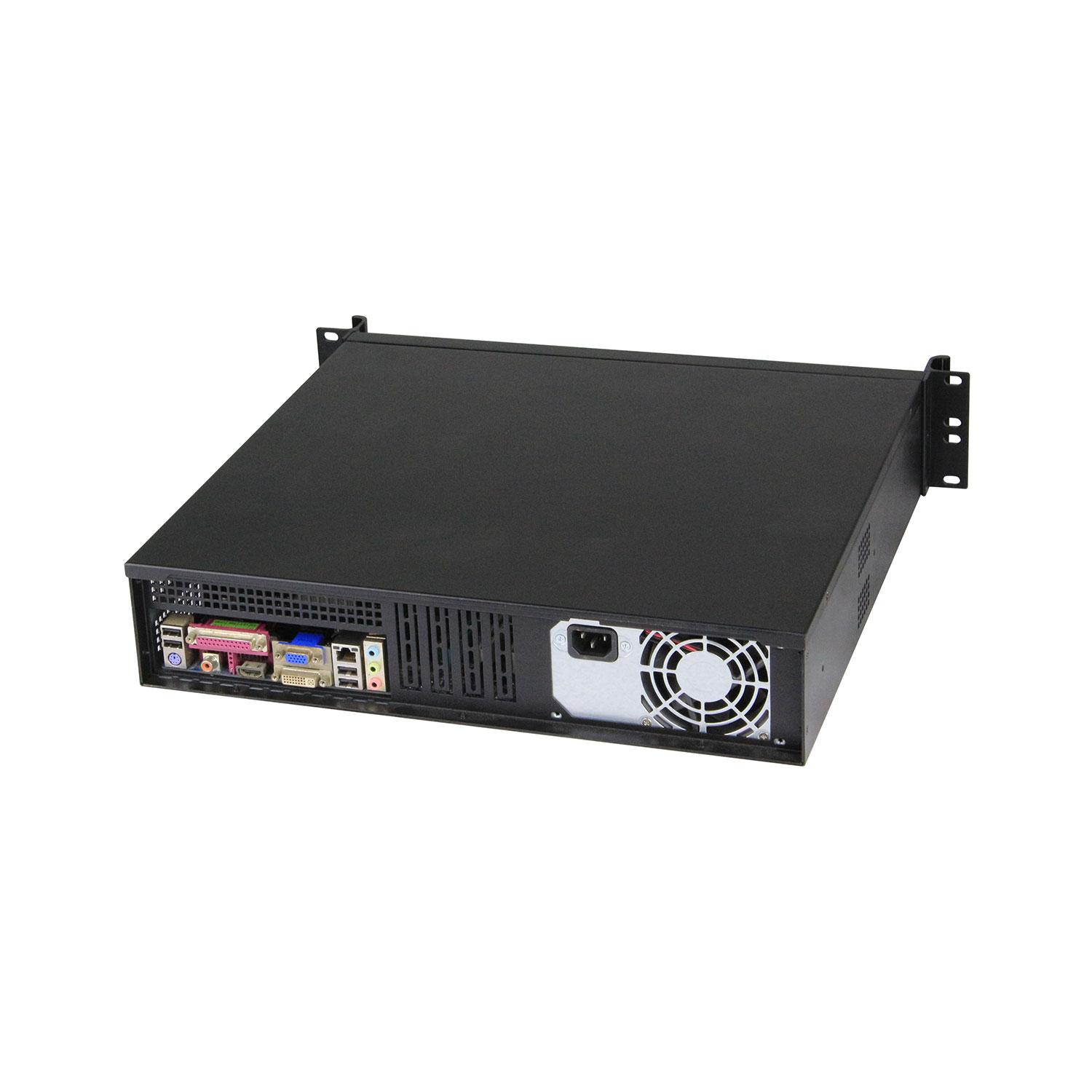

| Model: | 2U400L |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computer Components / Computer Case |
| Label: | Server case , Industrial chassis , 2U Server case |
| Price: |
US $40
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: |  | Last Online:03 Mar, 2020 |
|
Components |
Specification |
|
Dimensions(mm) |
400mm(D) ×428mm(W) × 88.5mm(H) |
|
Materials |
1.0mm SGCC Zinc-Coated Steel |
|
HDD bay |
6 x 3.5" HDD bays |
|
Cooling Fan |
2pcs 8025 fans |
|
PSU form factor |
Standard 1U power supply or PS2 power supply |
|
M/B form factor |
Support motherboard size up to 12"*9.6" |
|
USB port |
Two external USB ports |
| Epansion slot | Four or sever full height PCI/PCIE expansion slots |
| Color | Sand grain black |
|
System Control |
Power switch,Reset switch,Power LED ,HDD LED |
| Applicarion | Srorage,application servers and security system. |
Product Features:
1.Conformed with EMC design standard to prevent from electromagnetic interference .
2.Support motherboard size up to 12"*9.6",and 6*3.5"HDD bays .
3.4 slots and 7 slots rear panel can be replaced utually ; 4 slots rear panel could be com;atible with PS2 power supply while 7 slots rear panel could be compatible with 1U power sypply.
4.The front panel used hidden vent design,2 x standard matching 8025 fans.
5.Front panel and hanger are made of Brushed Anodized Aluminium.
