Product Description

TN4218  Foam Repeated Indentation Fatigue Tester



INTRODUCTION

This tester is used to test the reduction of thickness and hardness values of porous elastic material that is used for interior decoration.Put a square specimen into the tester.Sunk into the sample repeatedly with a smaller pressure head.Each impact has reach the max load within the prescribed scope at the same time.After a certain number,evaluate the performance of the sample.

TECHNICAL PARAETERS

1.Test speed : 70±5 rpm

2.Test number : 80 000 times

3.Counter : 0~999 999, adjustable

4.Pressure plate upper : Φ250 mm,rounded corners of 25 mm on the edge downside

5.Platform below : 420×420 mm,vent diameter of Φ6 mm,spacing of 20 mm,stroke of 50 mm

6.Sample load : 750±20 N

7.Sample size : (380±20) ×(380±20)×(50±2) mm

8.Dimension : 64×52×70 cm

9.Weight : 70 kg

10.Power supply : AC 380V /AC 220V,50 Hz, 3A

STANDARDS

ISO 3385,GB/T 18941, GB/T 12825 , etc











Our products are all certified by international authority,national metrolog inspection center, won praise from customers all over the world ,including SGS,ITS,BV,TUV Sud,TUV Rheinland,CTI,etc



NEW TOTAL SOLUTIONS

HONOR AND CERTIFICATES

STANDARD PACKING

MULTIPLE TRANSPORTATION




Payment Terms:tonnyinstruments@hotmail.com

Product Image

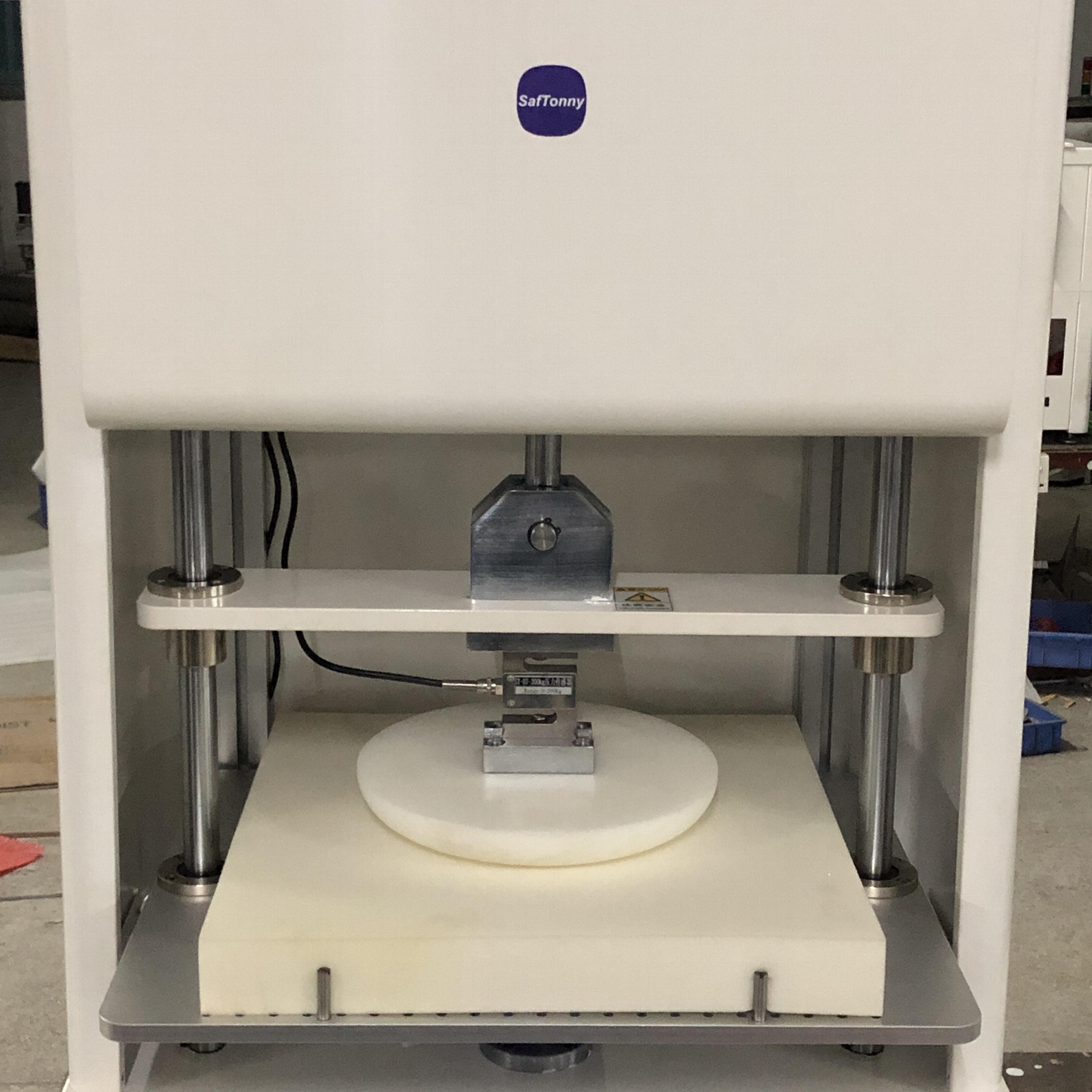

Foam Repeated Indentation Fatigue Tester ISO 3385 1
