| Model: | NCS-TT105 |
|---|---|
| Brand: | microcyber |
| Origin: | - |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | Transmitter , PT100 , temperature sensor |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Jan, 2020 |
Product Overview

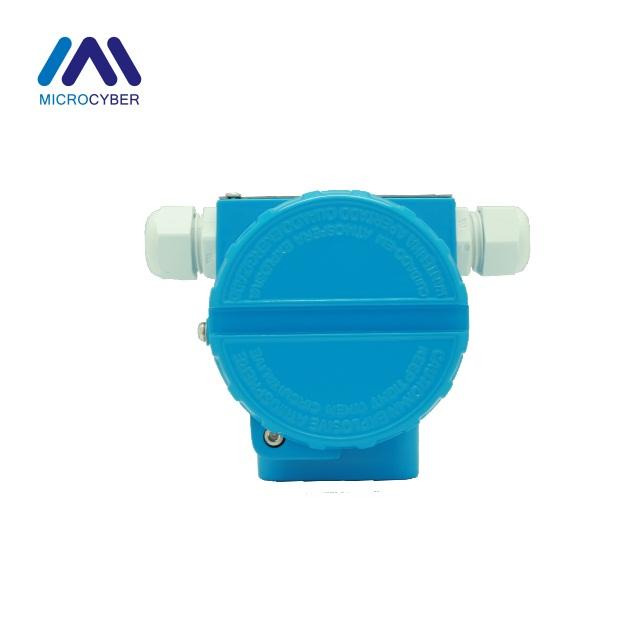

NCS-TT105 smart temperature transmitter, using the fieldbus technology, is a new generation of smart fieldbus temperature transmitter and it is an indispensable field device for process control. NCS-TT105 transmitter integrates abundant function blocks and realizes not only general measurement function but also complicated control strategy.
NCS-TT105 uses digital technology, so it can connect with many types of thermocouple and thermo resistive sensors. It has wide range and simple interface between field and control room, which reduces the expense of installation, operation and maintenance.
NCS-TT105 supports HART, FF, and PA protocols. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.
Features
Number of channels: 2
Sensor type: Resistance---Pt100, Cu50, Cu100, 0~50Ω, 0~2000Ω
Details
Specification
Parameters
|
Parameter |
Value |
|
Input Signal |
Resistance: PT100, PT1000, CU50, CU100, 0~500Ω, 0~4000Ω Thermocouple: B, E, J, N, K, R, S, T Voltage signal: -100mV~100mV |
|
Stablity |
Up to ±0.1% of Upper Range Limit (URL) for 1 year |
|
Warranty |
Up to 2-year limited warranty |
|
Range Rate |
20°C, range rate 10:1 |
|
Measurement Range |
Up to 6,890 kPa differential; Up to 41,370 kP gauge |
|
Output |
Differential pressure, gauge pressure, absolute pressure (scaled variable) |
|
Communication Protocol |
HART®, FOUNDATION™ Fieldbus, PROFIBUS® |
|
Process Wetted Material |
316L SST, Alloy C-276, Tantalum |
|
Diagnostics |
Sensor, storage, communication; software/hardware failure alarm |
|
Explosion-proof |
Exia, Exd, IP65/IP67 |
Size
Size of NCS-TT105 temperature Transmitter (Unit:mm)
| Payment Terms: | TT/LC/western union |
|---|---|
