Product Overview

Microcyber G1100 WirelessHART smart gateway is in charge of establishment, management and maintenance of WirelessHART network, and network optimization, to make the devices in the network work in the effective and safe situation. Meanwhile, WirelessHART smart gateway integrates device data information in the network to PC system or data application, and provides related security assurance.

Features

Achieve real-time process data,and wireless data reliability is highter than 99%

• Manage wireless communication automatically in constantly changing environment.
• Connect  with PC system via Modbus TCP/IP,Modbus RTU or Proprietary protocols.

Wireless network configuration tool

• Easy for wireless network and data integration via integrated web interface.

Interoperatbility

• interoperable with standard wireless field devices.
• Support adapter operation.

Comply and support HART protocol and commands

• Comply with HART7.5 specification.
• Support all the mandatory commands.

Details

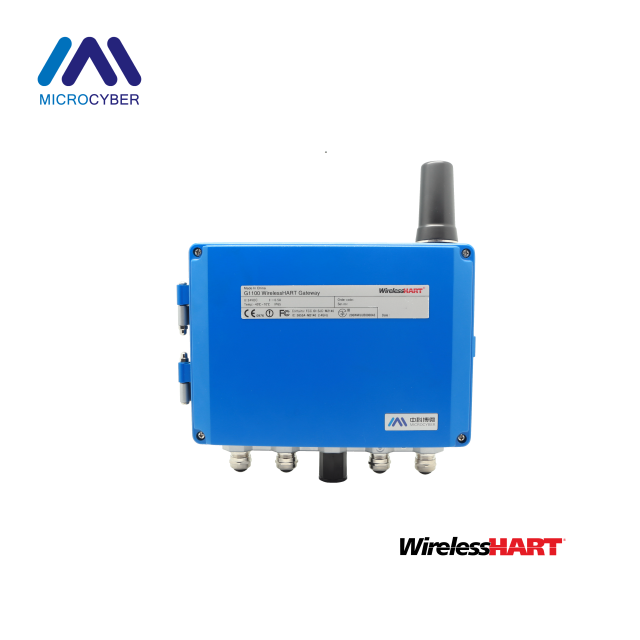

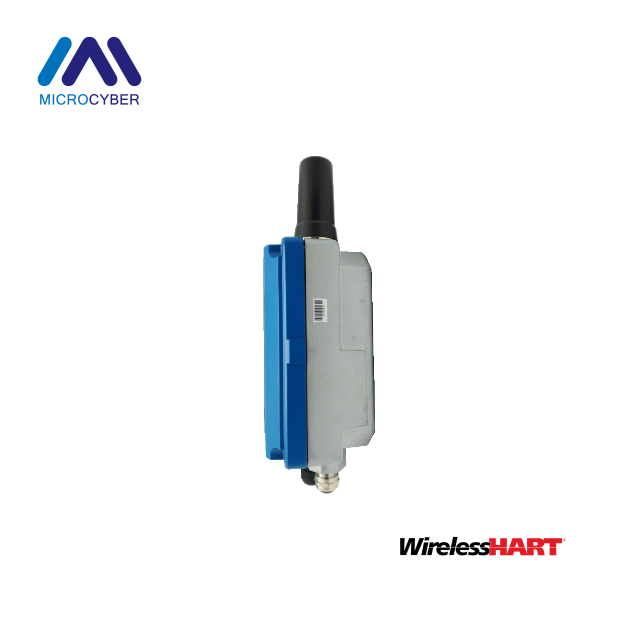

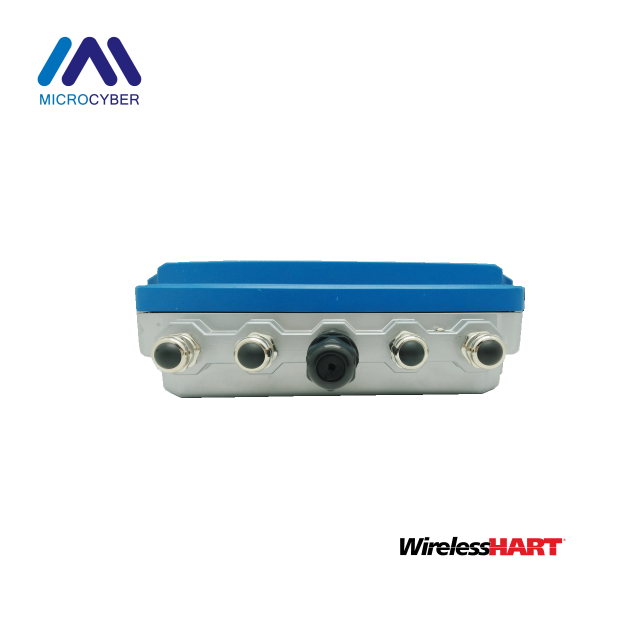

Whole Structure of G1100  WirelessHART smart Gateway

The structure of  WirelessHART

Network Structure

Ethernet LAN Structure

 RS485 LAN Structure

Specification

Parameters

   Functional Specs

  Communication Interface

  Self-assemble Network Specification

   Radio Characteristics

Size

 Size of  G1100 WirelessHART Gateway (Unit:mm)
