| Model: | HM105 |
|---|---|
| Brand: | microcyber |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Meter & Instrument Parts |
| Label: | HART modem , HART |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Jan, 2020 |
Product Overview
In the instruments industry, the traditional 4 – 20 mA analog transmitters are upgrading to the fieldbus with digital communication. HART fieldbus communication has digital communication capability with compatible analog signal. HART MODEM is a necessary and convenient tool for the analog products upgrading and signal exchanging in the control plant.

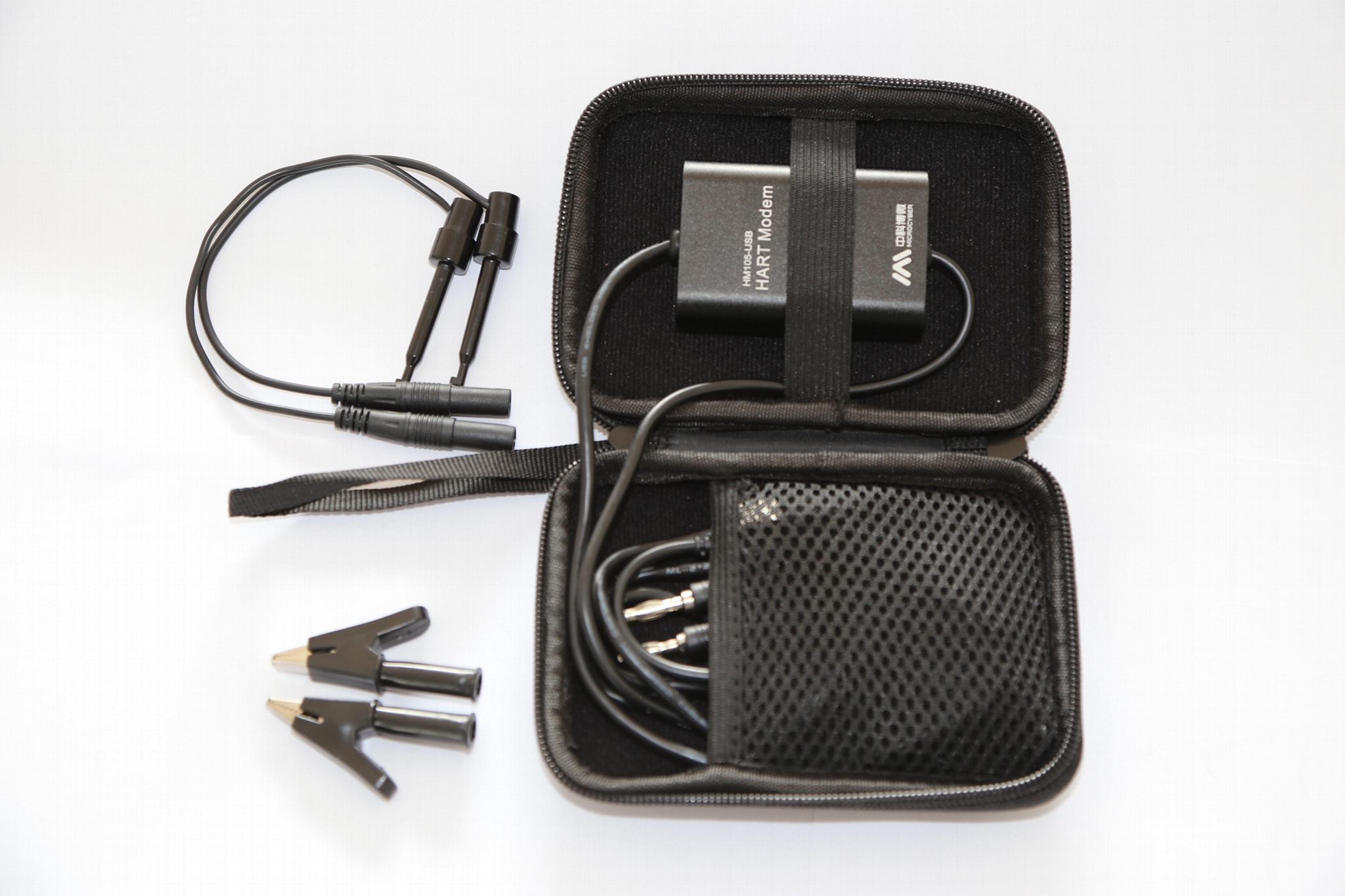

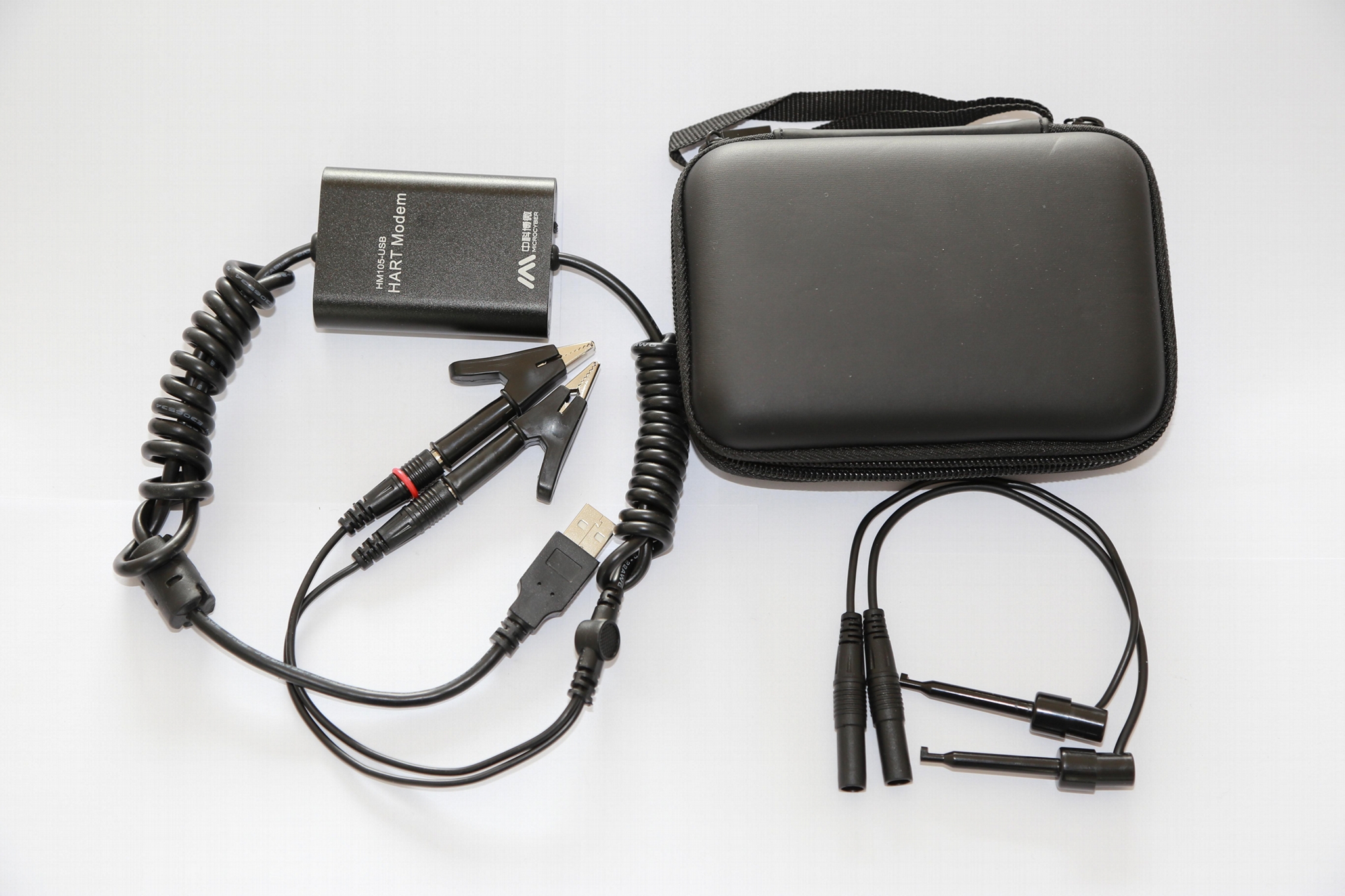

We provide two kinds of HART modem. HART-RS232 is the converter for HART signal to RS-232 signal. HART-USB is the converter for HART signal to PC virtual series port.
Features
Install
HART-RS232 is the protocol converter between HART device and configurator on PC.
Connection Diagram
Specification
|
Parameter |
Value |
|
Power Supply |
No external power supply required |
|
Galvanic Isolation |
500VAC between the device and the PC |
|
Receiving Impedance |
≥5KΩ |
|
Receiving Sensitivity |
120mVpp |
|
Output Amplitude |
500mVpp(500Ω) |
|
Connector |
USB/RS232 connector to PC, 2 alligator clip on Transmitter |
|
Cable Length |
USB/RS232 cable: 1.5m; HART cable: 1.00 m |
Housing
|
Parameter |
Value |
|
Weight |
app. 125 g(include cable) |
|
Dimensions |
60 x 45 x 14 mm |
Environments
|
Parameter |
Value |
|
Operating temperature |
0 to 50 °C |
|
Storage Temperature |
-40 to 85 °C |
|
Humidity |
0-95% (no condensation) |
PC System
|
Parameter |
Value |
|
Operating System |
Windows 98/ME/2000/XP/win7/win8 |
|
USB/RS232-Port |
USB-Host/RS232 |
