| Model: | KQL-11YK |
|---|---|
| Brand: | Caselide |
| Origin: | Made In China |
| Category: | Industrial Supplies / Farm Machines Tools |
| Label: | field ridge agricult , remote control farm , fruit base Remote co |
| Price: |
US $5266
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Jan, 2020 |
Product Application

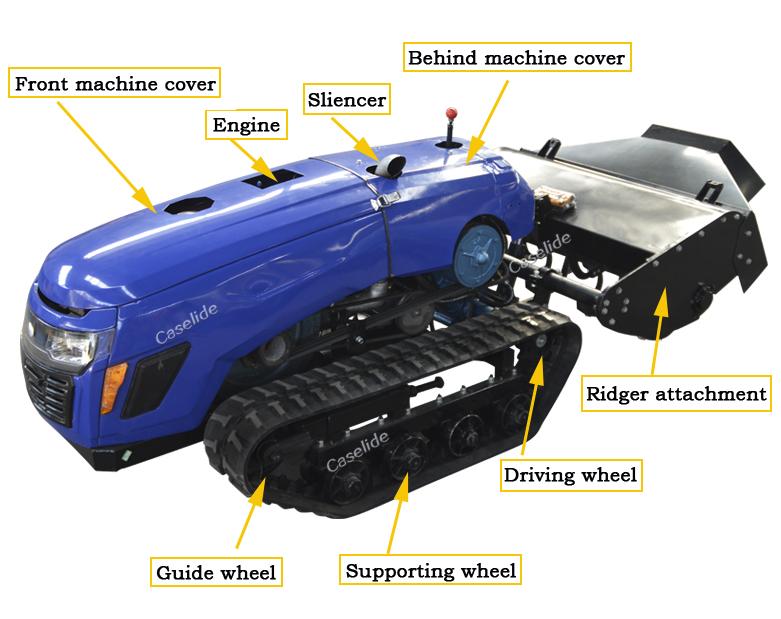

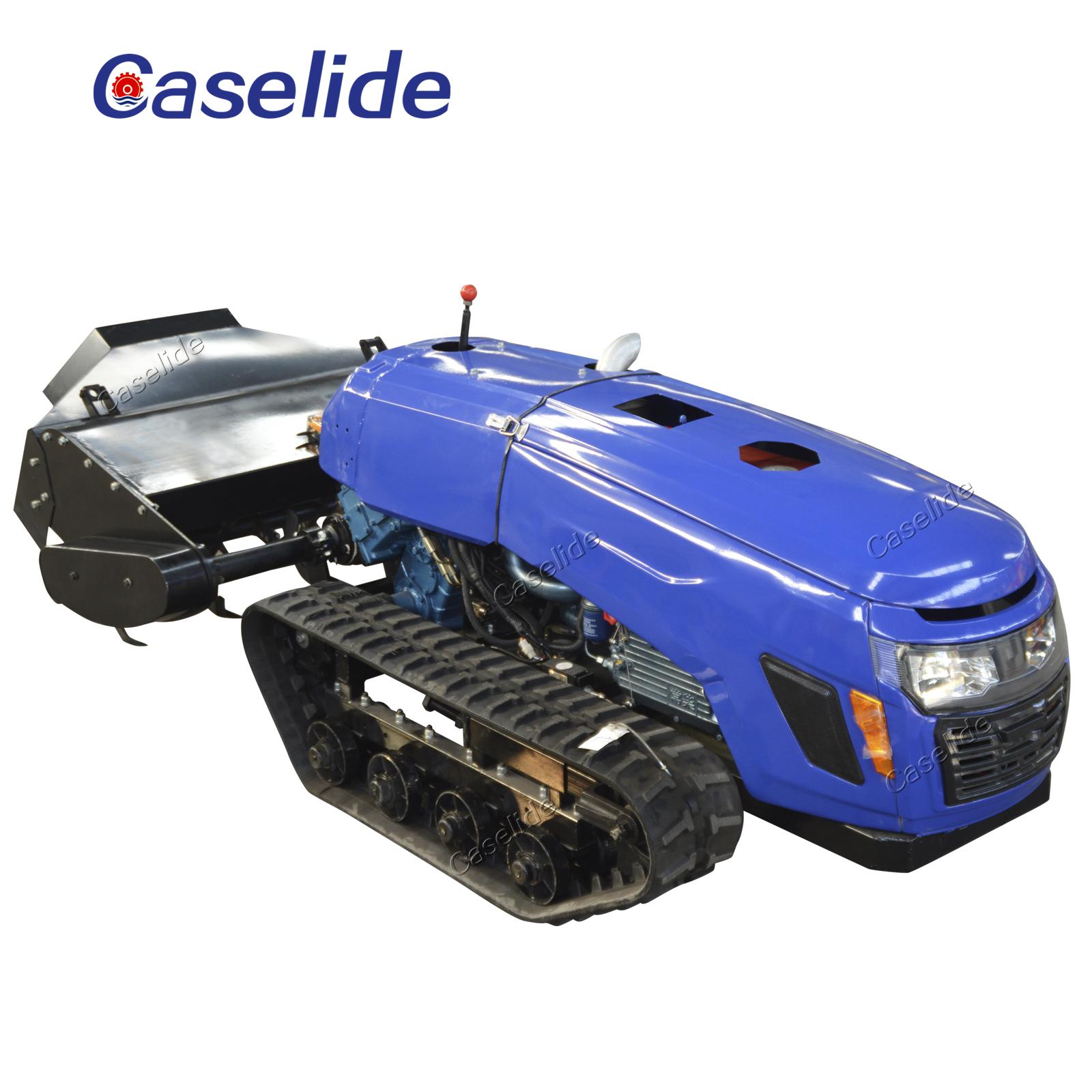

Configuration diesel engine 23.5kw, Choose 3+1 gear box (high and low speed),Forward speed 1.48-5.59km/h,reverse speed 0.85 km/h,Walking system is tracked (rubber and steel tracks can be used in two forms),operation way is remote control,remote control distance more than 100m. this machine configuration the tiller, lawn mower, aslo can Optional the Cultivation, fertilization, weeding, spraying and traction and so on. The utility model is a typical self-propelled multifunctional machine tool.
Features:
1) Engine: one cylinder , water cooled diesel engine from Changchai.
2) Operation way: remote control or manual.
3) Overall size: have the more small , fit to different zone to work.
4) Pedrail : two type for choose : rubber and steel tracks.
5) Multifunction: Cultivation, fertilization, weeding, spraying and traction and so on.
Technical Parameter
|
Model |
KQL-11YK |
|
Engine |
Changchai/32HP |
|
Gear position |
Ahead 3/Back 1 |
|
Remote control distance |
100m |
|
Weight |
900Kg |
|
Package Size |
2800*1200*1200(The size includes rotary tillage) |
|
Ridge height |
20cm |
|
Ridge bottom width |
70cm |
|
Ridge width |
40cm |
|
Ditch width |
30cm |
|
Unilateral width |
25cm |
|
Weight |
18kg |
