| Model: | 4000 |
|---|---|
| Brand: | Juray |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Other Machine Hardware |
| Label: | mechanical part , transmission part , sampling arm |
| Price: |
US $280
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Jul, 2020 |

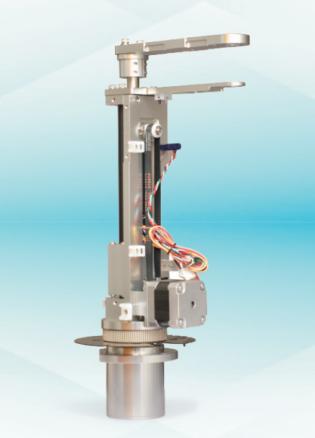

This 4000 Series Drive assembly is a sample&reagent acquisition mechanism, which can rotate horizontally and lift vertically in both directions, and the motor of both directions is integrated together, so this drive assembly has compact structure, high operation precision, smooth transmission ,long life and so on.
Application Range: This assembly is mainly used in Biochemistry and Chemiluminescence instrument and other medical clinical diagnosis and analysis equipment; On-line monitoring of water quality, COD and other environmental diagnostic and analytical settings
Table 1 Parameter
|
Name |
Sample agitation drive assembly |
|
Product code |
800-500001-00 |
|
Vertical stroke(mm) |
127 |
|
Extension length of driving rod(mm) |
149 |
|
Upper and lower motor current(A) |
2.5 |
|
Tooth Number of Upper and Lower Belt Wheels |
20MXL025 |
|
Pitch circle diameter of upper and lower pulleys(mm) |
12.94 |
|
Belt Linear Distance of Synchronization for Upper and Lower Motor(mm) |
0.20326 |
|
Rotating motor current(A) |
2.0 |
|
Rotation angle (︒) |
75 |
|
Number of Tooth of Rotating Small Belt Wheel |
20MXL025 |
|
Rotating small pulley pitch circle diameter(mm) |
12.94 |
|
Tooth Number of Rotating Large Belt Wheel |
100MXL025 |
|
Rotating large pulley pitch circle diameter(mm) |
64.68 |
|
Number of Optocoupler |
3 |
|
Outline size (mm*mm*mm) |
152x98.5x238 |
|
Driving rod resistance(KG) |
≦2 |
| Payment Terms: | TT |
|---|---|
