| Model: | - |
|---|---|
| Brand: | SUPCON |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Valves |
| Label: | control valve , Cage guided valve , Globe valve price |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:17 Jan, 2020 |

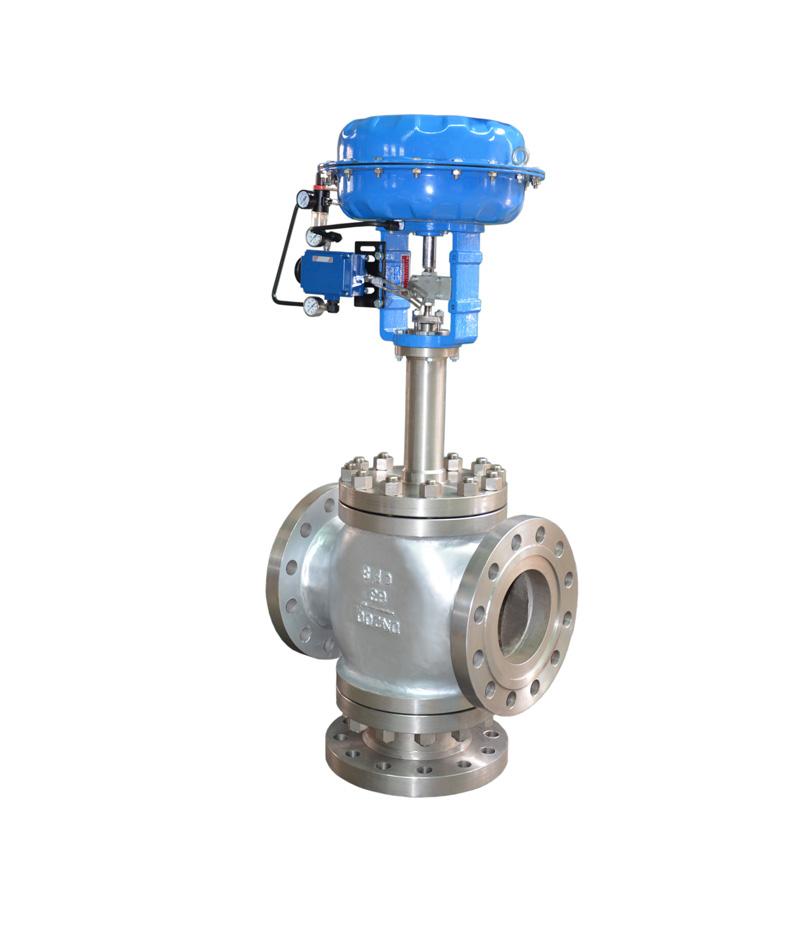

LN Series Three-way Globe Control Valve
LN4133 tee junction level control valve to achieve drip sealing, leakage level VI level, ratio is typically used to regulate, through adjust the position of valve core will be two separate fluid by required from common export ratio, when the DN 80 mm, can also be used to bypass occasion. LN5134 three-way split level control valve to achieve drip seal, leakage level grade VI, commonly used for heat exchange system of large diameter, high pressure differential bypass.
Globe Valve for flow Control PARAMETERS
|
Nominal Size |
DN25 ~ DN300 |
|
Pressure Rating |
PN16/PN40; CL150(PN20), CL300(PN50) |
|
Operateing Temperature |
-17℃~ +425℃ |
|
Characteristics |
Linear |
|
Rangeability |
30:1、50:1、 100:1 |
|
Seat Leakage Class |
ANSI B16.104: IV、V、VI |
|
Body Material |
WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc. |
|
Trim Material |
630/316/316+ST/316nitriding/316+Ni60/316+WC etc. |
|
Seal Material |
PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc. |
We also provide O ball valve, Eccentric plug valve, Triple offset butterfly valve and soon
More information you can view here
| Payment Terms: | 100% prepayment, or 50% prepayment and 50% before shipment. |
|---|---|
