| Model: | JadeO-4 |
|---|---|
| Brand: | IKE |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | cabinet led screen , cabinet led display , cabinet led panel |
| Price: |
US $950
/ SQM
|
| Min. Order: | 10 SQM |
| Live Chat: | Last Online:25 Dec, 2019 |

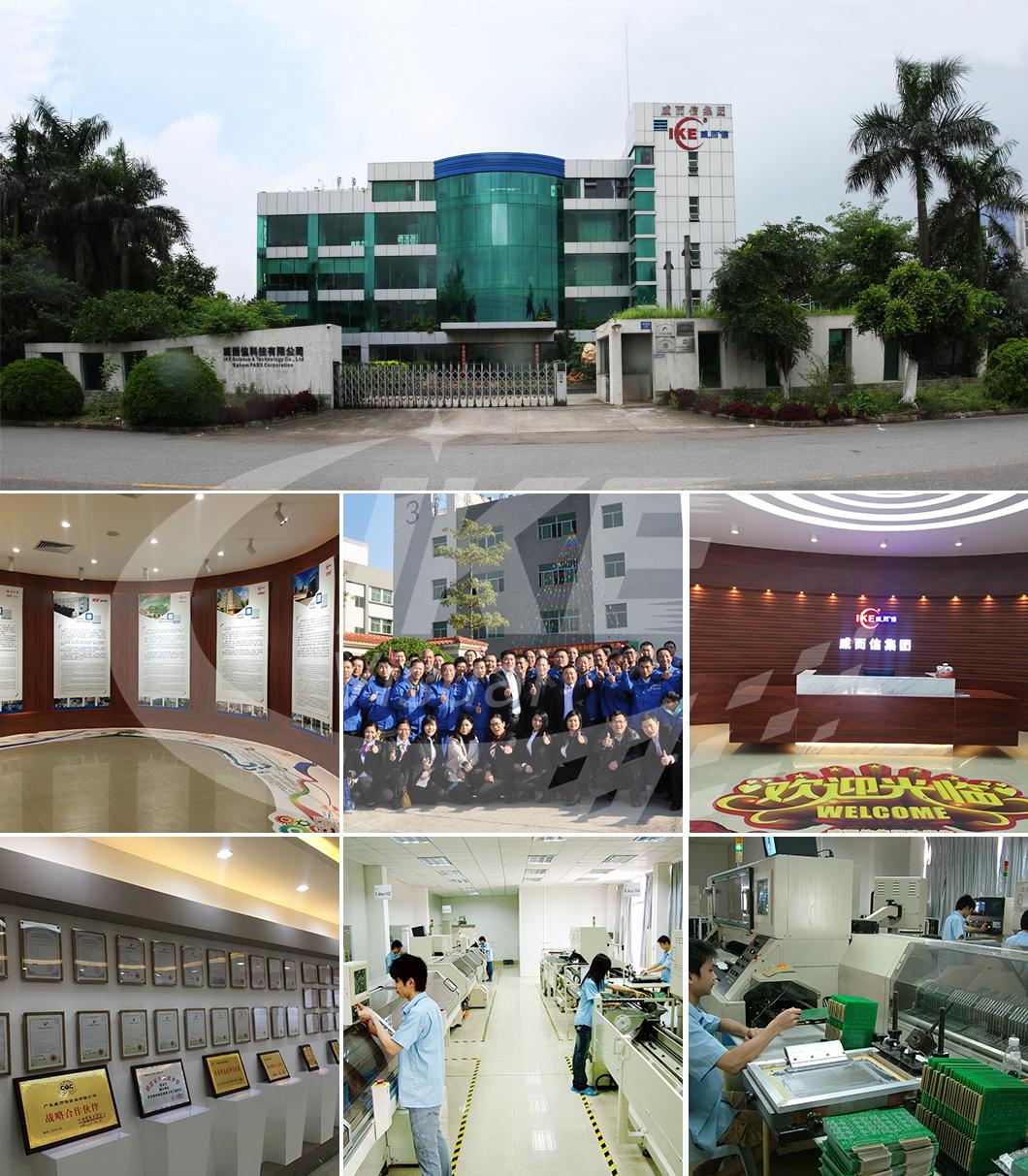

Company Profile
IKE Visual Co., Ltd is a high-tech enterprise specialized in developing and manufacturing LED video displays. We are located in Foshan city, and has our own factory of 15 acres. We have SMT production device and professional assembly lines. We have an experienced R&D team to focus on independent innovation and continuous improvement in creative and unique LED products such as customized displays, flexible displays and transparent displays.
With our business principle "Customer , Creativy Superior,Technology Gold, Efficiency Silver'', we provide customers with high quality LED display and professional solutions from design, production, installation to maintenance.
IKE Visual aims to offer high and outstanding visual feeling feast for all of our users!
Website: www.ikevisual.com Email: sales@ikevisual.com
Why choose us?
1. Exclusive customized service
Customized service is one of our core service to our clients.
- Customized size for different unique projects.
- Customized shapes.
- OEM&ODM service
2. Creative Design
Unique flexible LED display structure makes you differ from others.
3. One-stop optimized solution
According to your project, we can provide the most suitable soluton with reasonable cost and we put user experience first, and we’ve already paved the way from manufacturing to installation.
4. Strict Quality Control
All our products go through IQC,QC on semi-manufactures, Resistance test on finished products and , OQC(Outgoing Quality Control). The finished products must have rigorous and comprehensive aging test for 48 hours prior to shipment, to really ensure zero-issue delivery.

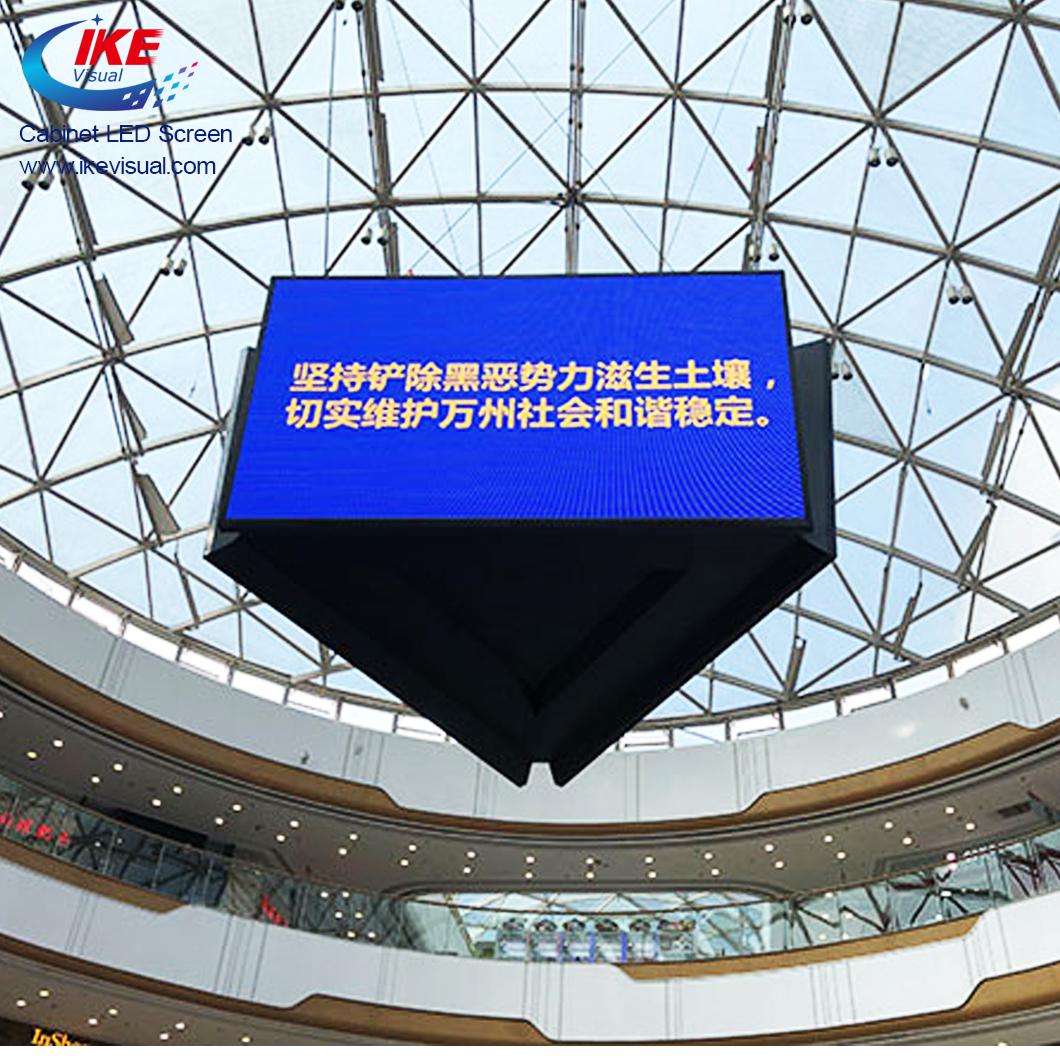

Cabinet LED Display Jade Series
Jade Series is a die-casting Aluminum structure cabinet LED display.It features an all-in-one and simple-to-deploy design to improve installation efficiency. Optimized system design, stable display effect, easy maintenance bring you more convenience. With self heat dissipation, high refresh rate,high grey scale,and easy to install, it is best choice for your all applications.
Features
1 Seamless Curve
Perfect side-locking system gives great visual effect without any gaps, even if curved combination
2 Simple and light structure design
Perfect apperances and convenient operation, each panel 500*1000mm only 12KG
3 Ergonomical-designed handle for easy operation
Accurate and fast installation with buckled cabinet design for different applications efficiently
4 Noise-less and low radiation
Built-in power unique system design to give less noise and save energy.
Spefications
| Model No. | Jade-1 | Jade-2 | Jade-3/JadeO-3 | Jade-4 / JadeO-4 | Jade-6 / JadeO-6 | |
| Pixel Pitch | P1.875mm | P2.5mm | P3.91mm | P4.81mm | P6.25mm | |
| LED Type | SMD1515 | SMD2121 | 2020SMD | 2121SMD | 2727SMD | |
| Brightness | 1000 Nits | 1000 Nits | 1000 Nits/5000Nits | 1000 Nits/5000Nits | 1000 Nits/5000Nits | |
| Density | 284444 Pixels/㎡ | 160000 Pixels/㎡ | 65536 Pixels/㎡ | 43222 Pixels/㎡ | 25600 Pixels/㎡ | |
| Refresh Rate | 1,920Hz | 1,920Hz | 1,920Hz | 1,920Hz | 1,920Hz | |
| Scan Mode | 1/32 Scan | 1/32 Scan | 1/16 Scan | 1/16 Scan | 1/8 Scan | |
| Size | 400mm*300mm | 500mm*500mm | 500mm*500mm
500mm*1000mm |
500mm*500mm
500mm*1000mm |
500mm*500mm
500mm*1000mm |
|
| Module Resolution
|
104 x 78 | 200 x 200 | 128 x 128 Or 128X 256 | 104x 104 Or 104x 208 | 80x80 Or 80x160 | |
| Weight | 5.3kg/per panel | 6.5kg/per panel | 6.5kg/per panel | 6.5kg/per panel | 6.5kg/per panel | |
| Viewing Angle | 120。 | 120。 | 120。 | 120。 | 120。 | |
| IP Degree IP | IP 43 | IP 43 | IP 43/ IP65 | IP 43/ IP65 | IP 43/ IP 65 | |
| Working Voltage
|
DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | |
| Input Voltage | AC 100 -240V | AC 100 -240V | AC 100 -240V | AC 100 -240V | AC 100 -240V | |
| Power Consumption
(Max./Avg.) |
800 W /㎡
/ 267W/㎡ |
500 W /㎡
/ 170 W/㎡ |
800W /㎡
/ 267 W/㎡ |
800W /㎡
/ 267 W/㎡ |
800 W /㎡
/ 265 W/㎡ |
|
|
Working Temperature
|
|
|||||
Warranty and After-sales serivce
Warranty: Two Years
After Sales Serivces
1. Installation
Mainly by providing installation drawings to assist in the installation. If necessary, engineers can be sent to assist on site.
2. Setting-to-work
The necessary setup will be completed before shipping. While other issues are usually resolved by remote assistance(Teamviewer or QQ)
3. In warranty
In the warranty, if there is any quality problem with the products, all repair and component replacement are free. For acute quality problems, can sent engineers for on-site solving, or product return to factory to repair or whole order replacement.
4. After warranty
After the warranty, repair keeps free,while the cost of the components shall be asked for replacement. And engineers-on-site-solving is also available.
