| Model: | AS-SD202-4L |
|---|---|
| Brand: | Ansorl |
| Origin: | Made In China |
| Category: | Security & Protection / Alarm |
| Label: | smoke detector , smoke detector relay , fire alarm detector |
| Price: |
-
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:19 Dec, 2019 |

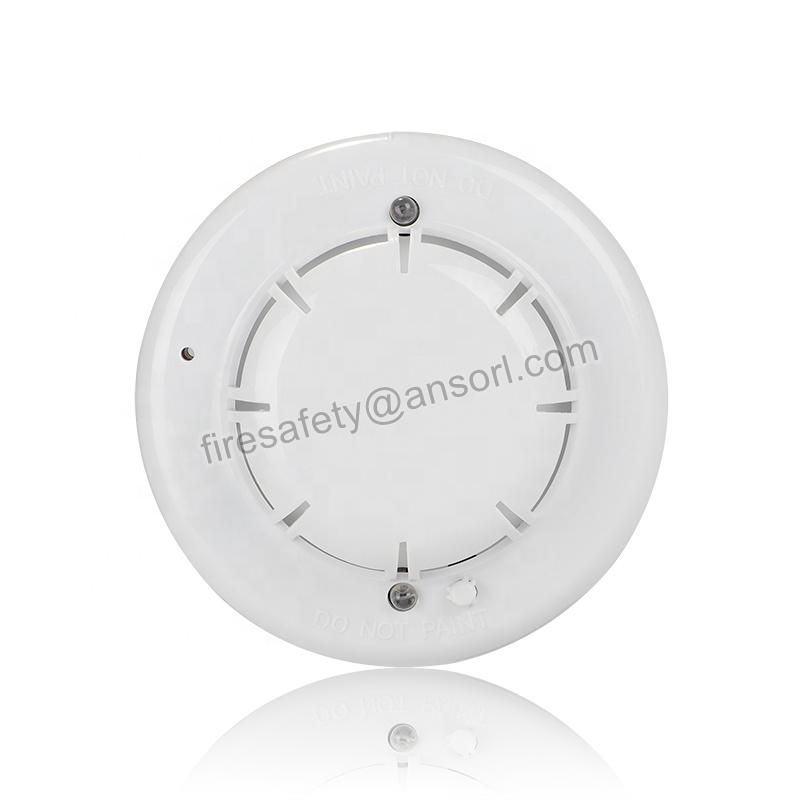

4 Wire Smoke Detector Relay Output
Description:
AS-SD202 Smoke detector use a state-of-the-art optical sensing chamber, the smoke chamber works under the principle of smoke particles reflecting infrared lights accurately detect early smoke of a fire. The smoke detector will go into alarm when signal level exceeds the alarm sensitivity and send the alarm signal to the fire alarm control panel,. During an alarm, the LEDs will be constantly bright. The detectors are widely used in office buildings,shopping malls, banks, libraires and other indoor places.
Features:
* Photo-electric smoke detector.
* Uses a state of-the-art optical sensing chamber.
* Circular LED Lindicator for 360° visibility
* 4 Wires connection, with relay output.
* Compatible with most conventional fire alarm panel.
* Low power consumption.
* High precision and stability.
* Easy Installation and maintenance.
Parameters:
|
Product Name |
4 Wire Smoke Detector Relay Output |
||
|
Model No. |
AS-SD202-4L |
||
|
Type |
Conventional optical |
||
|
Operating Voltage |
9-35VDC |
||
|
Standby Current |
55 μA-13 mA |
||
|
Alarm Current |
20 mA-60 mA |
||
|
Indicator |
Yes |
||
|
Wiring |
4 wires |
||
|
Standard |
EN54-7 |
||
|
Matched Host |
AS-BFP, AS-AFP series panel |
||
|
Application |
Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc. |
||
Related Models:
* AS-SHD109: Smoke and heat multi detector
* AS-SD102: Conventional 2 wire smoke detector
* AS-HD105: Conventional 2 wire heat detector
* AS-CGD501: Conventional Combusible gas detector
* AS-IRBD: Infrared reflective beam smoke detector
* AS-E301-UV: Explosion proof ultrovialet flame detector
* AS-SSD101: 9V Battery operated smoke detector
