| Model: | RPC-1 |
|---|---|
| Brand: | Yuxi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Laser Parallel Roll |
| Price: |
¥8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Dec, 2019 |
Description
This tool is used to measure and correct vertical and horizontal angle between 2 rolls.

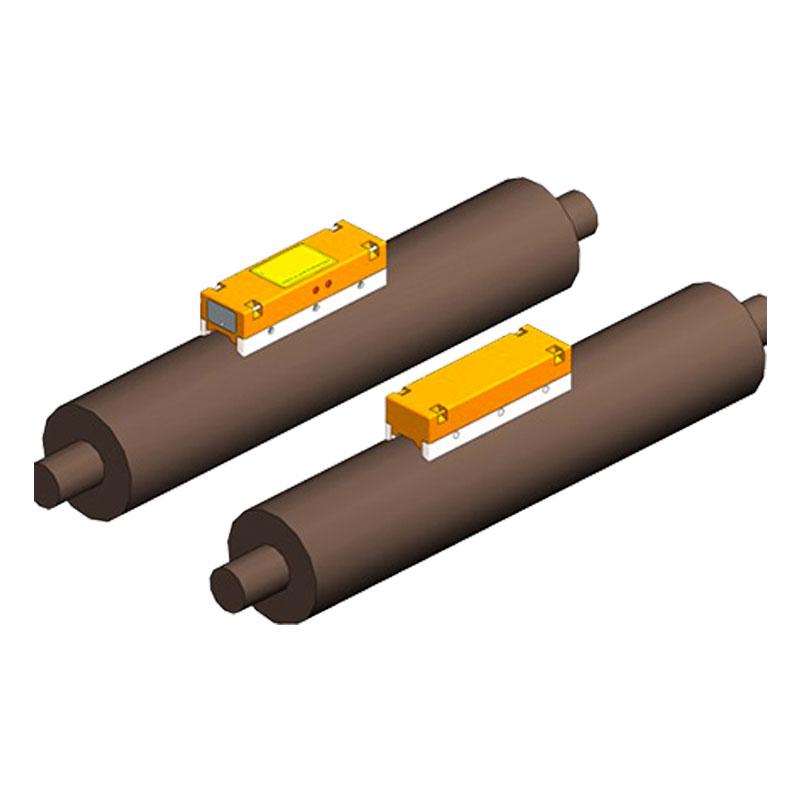

The Laser Transmitter is mounted to a stationary roll that transmits two red laser lines to the Reflector positioned on the roll to be moved. The operator then is able to view both the vertical and horizontal angles and accurately adjust the roll into parallel alignment.
Features
Technical Data：
|
Transmitter
|
|
Reflector
|
||
|
Laser power |
2 mW |
Weight |
920g |
|
|
Wavelength |
650 nm |
Dimension |
160*50*40 mm |
|
|
Accuracy |
0.1mm/m |
Applicable diameters |
>50mm |
|
|
Laser divergence angle |
30° |
Mounting type |
Bungee straps |
|
|
Laser line thickness |
1mm at 2 m |
Material |
Aluminium alloy |
|
|
Working Time |
10 hours |

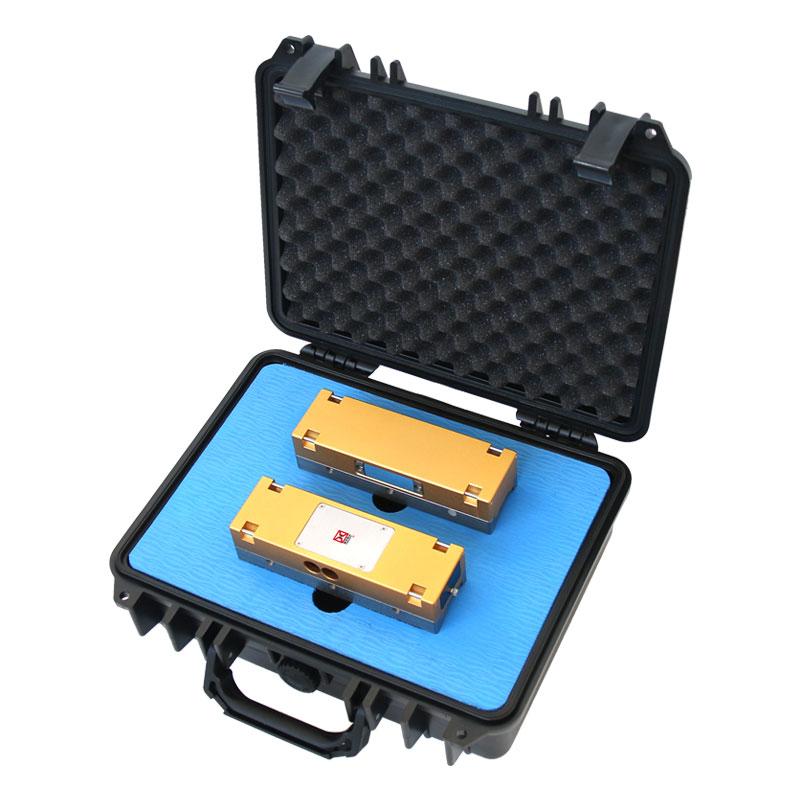

Carrying case |
||
|
Battery type |
Two AA batteries |
Material |
Black, high density polyethylene |
|
|
Weight |
860g |
Case weight |
1.5Kg |
|
|
Dimension |
160*50*40 mm |
Total weight |
3.3Kg |
|
|
Operating temperature |
-10-40℃ |
Dimension |
330X280X120mm |
|
|
Storage temperature |
-30-60℃ |
|
||
|
Applicable diameters |
>50mm |
|||
|
Material |
Aluminium alloy |
|||
|
Mounting type |
Bungee straps |
|||
|
Straps |
250mm straps : 2 pcs 500mm straps : 2 pcs |
|||
