| Model: | - |
|---|---|
| Brand: | Viewpointec |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | 3D curved screen |
| Price: |
US $1500
/ pc
|
| Min. Order: | 1500 pc |
| Live Chat: | Last Online:16 Dec, 2019 |
See Flex in Action
Pixel Pitch: 1.25mm/ 1.667mm/ 1.923mm/ 2.5mm/ 3.1mm/ 4.1mm/ 6.2mm/ 10mm
Panel Weight: 1.5KG/panel
Average Power Consumption: 480W/sqm
Brightness: 600-1000 nits
Weather Rating: For indoor only
See Flex in Action
Pixel Pitch: 1.25mm/ 1.667mm/ 1.923mm/ 2.5mm/ 3.1mm/ 4.1mm/ 6.2mm/ 10mm
Panel Weight: 1.5KG/panel
Average Power Consumption: 480W/sqm
Brightness: 600-1000 nits
Weather Rating: For indoor only
Lighter, Thinner Flex-Panel Display Screen
For over 25 years, we have been engaged in LED application solutions. A team of highly experienced engineers specifies, develops and manufactures our premium LED displays and state-of-art technologies to the highest standards.
Curvable Design
Convex
Convex Min Diameter = 14 inch(366mm)～30 inch(764 mm) Qty of module = 4～6 pcs
Concave
Concave Min Diameter = 15 inch(382mm)～29 inch(733mm) Qty of module = 3～8pcs

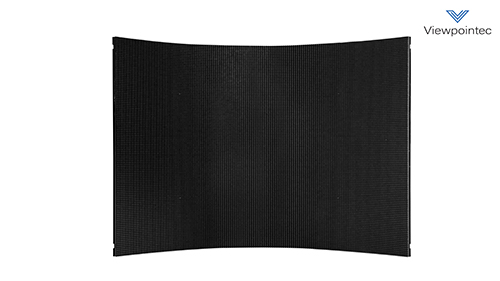

Nature curve by Flex
Nature curve by Flex
2-5 degree curve by flat panel
2-5 degree curve by flat panel
Flex is designed to make seamless and smooth natural curve.
Creative Audience Engagement
High-Resolution Display
High-resolution Pitch Options
Resolution is often the key feature in most LED applications. The Flex pitch is one of the LED designs with the highest resolution on the market.
Pitch Options
1.25mm 1.667mm 1.923mm 2.5mm
3.1mm 4.1mm 6.2mm
Pixel Calibration
Your tiles are calibrated directly dot by dot to help the screen color uniformity and insure the perfect color and brightness of your led screens.
Flexible Construction
Customized Tiles
Flex tiles come in a standard size of 400x300mm or 288x144mm, but can be customized and trimmed to create angled tiles to meet the need for more creative LED video designs.
Customized Frames
Flex tiles can be magnetized to adhere well to virtually any surface. With each project being unique, the Flex-specific framing structure is designed and manufactured to accomplish your unique design and deployment.
Magnetic Module
The slim and lightweight magnetic module can fit any design and adhere to any custom frame. It requires very little space for wiring and mounting.
Reliable Data and Power Management
The external sending controller and internal receiving ones, even the back-up system available if needed, ensuring safe and reliable connections between the tiles.
Remote power supply system, specially designed for our solutions, could be located up to max 15meters from the screen.
More Infomation
Specification
|
Item |
TVF012P |
TVF015P |
TVF016P |
TVF019P |
NF025P |
NF030P |
NF040P |
NF060P |
NF030P |
NF040P |
NF060P |
|
Resolution |
160*240pixels |
256x192pixels |
240x180pixels |
208x156pixels |
160x120pixels |
128x96pixels |
96x72pixels |
64×48 pixels |
96x48pixels |
72x36pixels |
48×24 pixels |
|
Pitch |
1.25mm |
1.5625mm |
1.667mm |
1.923mm |
2.5mm |
3.125mm |
4.1667mm |
6.25mm |
3mm |
4mm |
6mm |
|
Physical Density |
640,000pixels/m² |
409,600pixels/m² |
360,000pixels/m² |
270400pixels/m² |
160000pixels/m² |
102,400pixels/m² |
57,600pixels/m² |
25,600 pixels/m² |
111,111pixels/m² |
62500pixels/m² |
27778 pixels/m² |
|
LED arrangement |
SMD3in1 |
SMD3in1 |
SMD3in1 |
SMD3in1 |
SMD3in1 |
SMD3in1 |
SMD3in1 |
SMD 3 in 1 |
SMD3in1 |
SMD3in1 |
SMD 3 in 1 |
|
Driver mode |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
Constant Current |
|
Size(mm/inch) |
200×300/7.88*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
400×300/15.75*11.81 |
288×144/11.34×5.67 |
288×144/11.34×5.67 |
288×144/11.34×5.67 |
|
Weight(kg/lbs) |
1kg/1.76 |
1.6kg/3.52 |
1.6kg/3.52 |
1.6kg/3.52 |
1.6kg/3.52 |
0.6kg/1.32 |
0.6kg/1.32 |
0.6kg/1.32 |
0.35kg/0.77 |
0.35kg/0.77 |
0.35kg/0.77 |
|
Brightness |
600nits |
600nits |
600nits |
600nits |
600nits |
1200nits |
1200nits |
1200nit |
1200nits |
1200nits |
1200nit |
|
View Angle |
120°H/ 120°V |
120°H/ 120°V |
120°H/ 120°V |
120°H/ 120°V |
120°H/ 120°V |
140°H/ 140°V |
140°H/ 140°V |
140°H/ 140°V |
140°H/ 140°V |
140°H/ 140°V |
140°H/ 140°V |
|
Min View Distance(m/ft) |
1.25m/4.1ft |
1.79m/5.87ft |
1.79m/5.87ft |
1.79m/5.87ft |
1.79m/5.87ft |
2.15/7.05ft |
2.86/9.38ft |
4.3m/14.1ft |
2.15/7.05ft |
2.86/9.38ft |
4.3m/14.1ft |
|
Refresh rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
|
Operation Power |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
100- 240VAC, 47 – 63 Hz |
|
Max Power Consumption |
625W /m² |
625W /m² |
625W /m² |
625W /m² |
625W /m² |
480W /m² |
480W /m² |
480W /m² |
480W /m² |
480W /m² |
480W /m² |
|
Average Power Consumption |
250W /m² |
250W /m² |
250W /m² |
250W /m² |
250W /m² |
160W /m² |
160W /m² |
160W /m² |
160W /m² |
160W /m² |
160W /m² |
|
Operating Temp. |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
0° ~+ 40° |
|
Operating Humidity |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
10 – 95 % RH |
|
Operating Life |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
50,000Hrs |
|
Protection Level |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
indoor only |
|
Mini Radius |
≥2m/6.56ft |
≥2m/6.56ft |
≥2m/6.56ft |
≥1.8m/ 5.9ft |
≥1.2m /3.94ft |
≥1m/3.28ft |
≥0.8m/2.625ft |
≥0.8m/2.625ft |
≥1m/3.28ft |
≥0.8m/2.625ft |
≥0.8m/2.625ft |
|
Installation Type |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Fixed |
Flex Testings
Screen Aging Testing - 72 Hours
Color Calibration
Viewpointec is one of the best curved led screen supplier in China,email us for soft led display price .
