Steel Half Round Gutter Roll Forming Machine

Model:-
Brand:Yangcheng
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:building material , Roll Forming Machine , metal processing
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

Steel Half Round Gutter Roll Forming Machine

Steel Gutter Roll Forming Machine

Downpipe/Gutter Machine

We also can design the machine strictly according to your required profile.

Half Round Gutter Roll Forming Machine SURFACE TREATMENT

1) Processing material: steel strip

2) Material thickness: 0.3-0.7mm

3) Formed size on one machine: as per above profile drawing

4) Main motor power: 5.5kw

5) Hydraulic station power: 4kw

6) Productivity: 4-10m/min

7) Roller stations: 20 steps

8) Roller material: Cr12 steel with vacuum heat treatment, hardness reaches 58HRC-60HRC

9) Active shaft material: 45#steel with high frequency surface treatment and grinding process

10) Steel Gutter Roll Forming Machine Shaft diameter: Ф60mm

11) Cutting system: mould cutting, automatic cut to any length you need

12) Cutting blade material: Cr12MOV

13) Stand wall plate thickness: 22mm

14) Control system: Taiwan Delta PLC computer control system

15) Dimension of the machine: About 11000mm*1500mm*1400mm

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

TECHNOLOGY

3t manual decoiler→guiding platform→main roll forming machine→cutting system→2m output table, 5.5kw electric-motors, 4kw electric motor on hydraulic station, PLC control system

SALES TERMS

1). Gutter Roll Forming Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This cold forming machine is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.

More information can view Hifactory.


Payment Terms:TT LC

Product Image

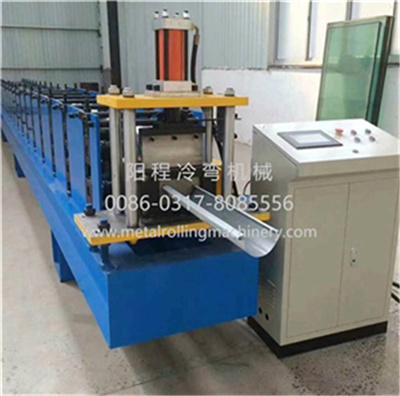

Steel Half Round Gutter Roll Forming Machine 1
