| Model: | X5004 |
|---|---|
| Brand: | SHINHO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | fiber identifier , Fiber Trafic Locator , VFL |
| Price: |
US $180
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:02 Dec, 2019 |

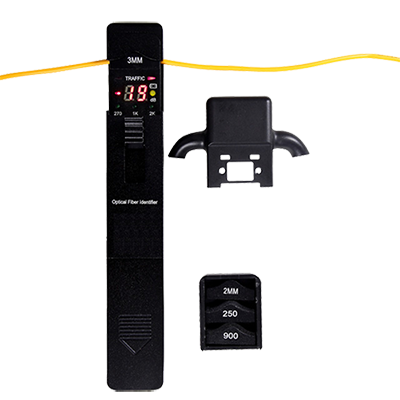

Optical Fiber Identifier X-5004
Features
Specifications
|
Identified Wavelength Range |
800-1700 nm |
|
|
Identified Signal Type |
CW, 270Hz±5%，1kHz±5%，2kHz±5% |
|
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
|
Adapter Type |
Ø0.25 , Ø0.9, Ø2.0, Ø3.0 |
|
|
Signal Direction |
Left & Right LED |
|
|
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) |
-46~10(1310nm) |
|
|
-50~10(1550nm) |
||
|
Signal Power Test Range (dBm, CW/0.9mm bare fiber) |
-50~+10 |
|
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
|
Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 |
-30~0 (270Hz,1KHz) |
|
-25~0 (2KHz) |
||
|
0.25 |
-25~0 (1KHz,2KHz) |
|
|
-20~0 (2KHz) |
||
|
Insertion Loss (dB, Typical Value) |
0.8 (1310nm) |
|
|
2.5 (1550nm) |
||
|
Alkaline Battery(V) |
2pcs AAA batteries |
|
|
Operating Temperature(℃) |
-70 |
|
|
Storage Temperature(℃) |
-95 |
|
|
Dimension (mm) |
196X30.5X27 |
|
|
Weight (g) |
195 |
|
Standard Accessories
| NO. | ITEM |
| 1 | Fiber identifier |
| 2 | User manual |
| 3 | Soft carrying case |
| 4 | 1.5V AA batteries |
| Payment Terms: | TT,PAYPAL,WESTERN UNION |
|---|---|
