| Model: | - |
|---|---|
| Brand: | Cloudring |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Network Hardware & Parts |
| Label: | 4G android PCBA , 6 MIC ARRAY , APP control |
| Price: |
US $80
/ pc
|
| Min. Order: | 3000 pc |
| Live Chat: | Last Online:20 Nov, 2019 |

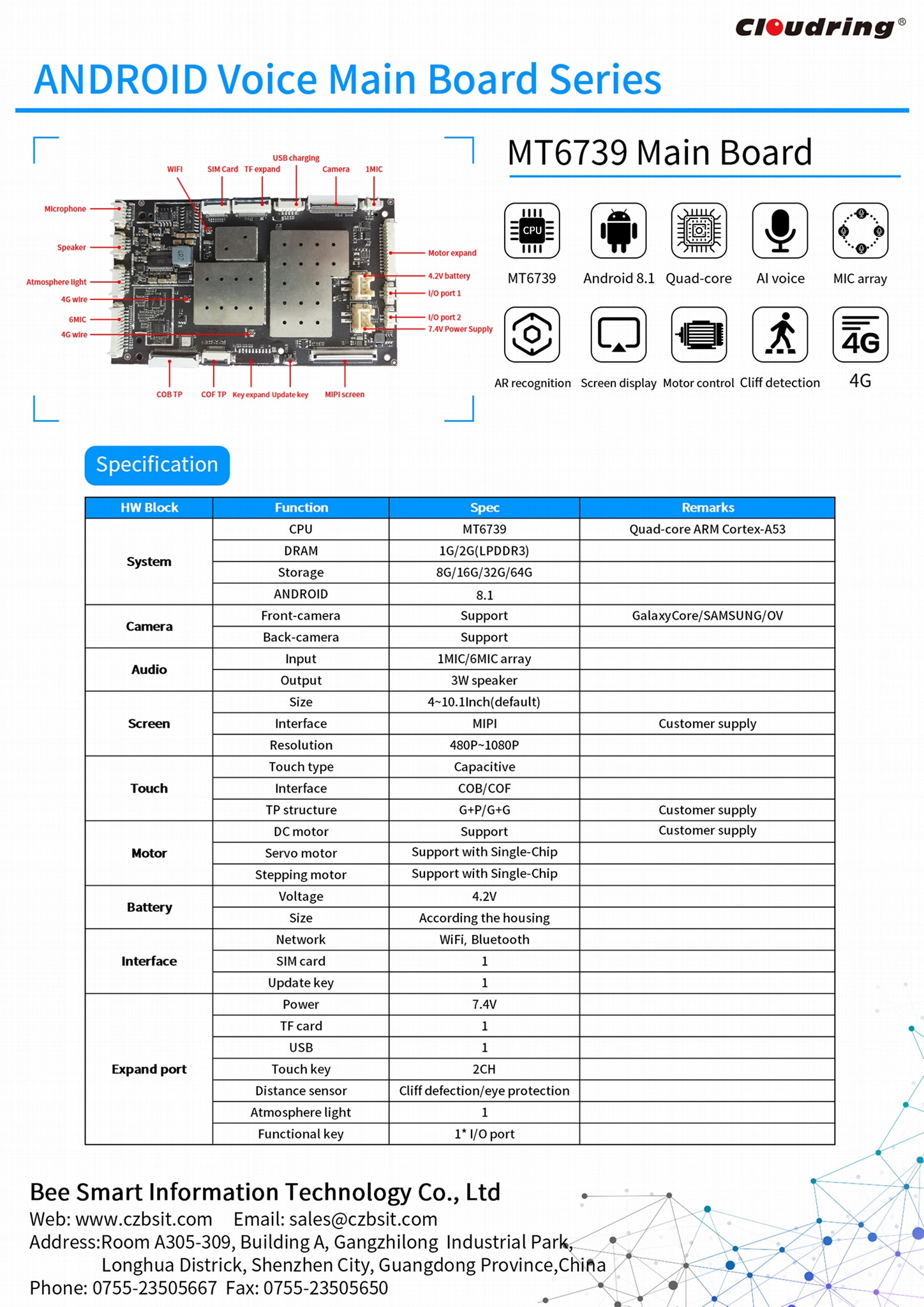

4G MT6739 Android Main Board for Robotic 6MIC ARRAY
6MIC ARRAY voice control
Support dual-camera
4G communication, wifi, bluetooth
ANDROID 8.1 system
Motion control
Specifications:
|
HW Block |
Function |
Spec |
Remarks |
|
System |
CPU |
MT6739 |
Quad-core ARM Cortex-A53 |
|
DRAM |
1G/2G(LPDDR3) |
|
|
|
Storage |
8G/16G/32G/64G |
|
|
|
ANDROID |
8.1 |
|
|
|
Camera |
Front-camera |
Support |
GalaxyCore/SAMSUNG/OV |
|
Back-camera |
Support |
|
|
|
Audio |
Input |
1MIC/6MIC array |
|
|
Output |
3W speaker |
|
|
|
Screen |
Size |
4~10.1Inch(default) |
|
|
Interface |
MIPI |
Customer supply |
|
|
Resolution |
480P~1080P |
||
|
Touch |
Touch type |
Capacitive |
|
|
Interface |
COB/COF |
|
|
|
TPstructure |
G+P/G+G |
Customer supply |
|
|
Motor |
DC motor |
Support |
Customer supply |
|
Servo motor |
Support with Single-Chip Microcomputer |
||
|
Stepping motor |
Support with Single-Chip Microcomputer |
||
|
Battery |
Voltage |
4.2V |
|
|
Size |
According the housing |
|
|
|
Interface |
Network |
WiFi, Bluetooth |
|
|
SIMcard |
1 |
|
|
|
Update key |
1 |
|
|
|
Expand port |
Power |
7.4V |
|
|
TF card |
1 |
|
|
|
USB |
1 |
|
|
|
Touch key |
2CH |
|
|
|
Distance sensor |
Cliff defection/eye protection |
|
|
|
Atmosphere light |
1 |
|
|
|
Functional key |
1* I/O port |
|
| Payment Terms: | TT |
|---|---|
