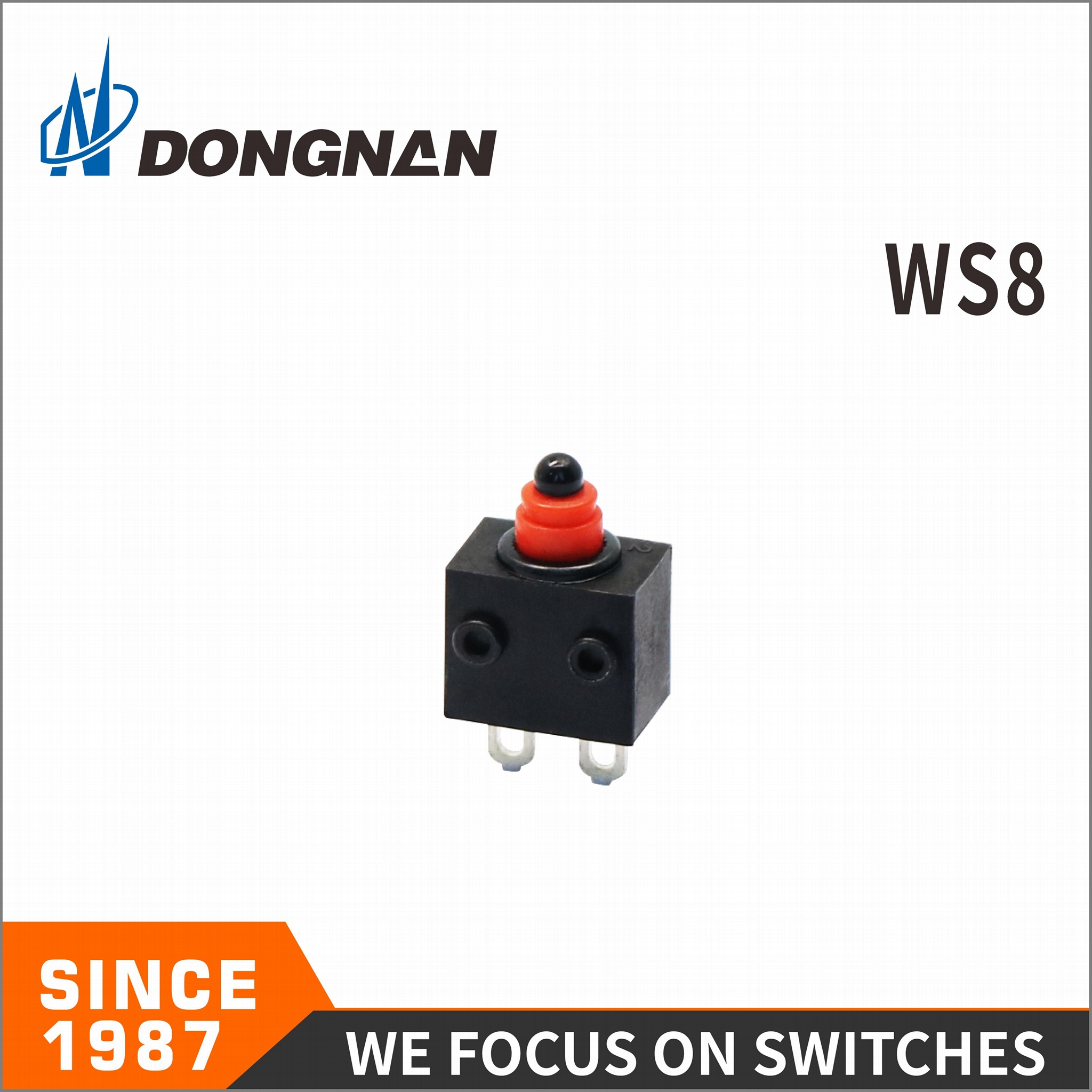

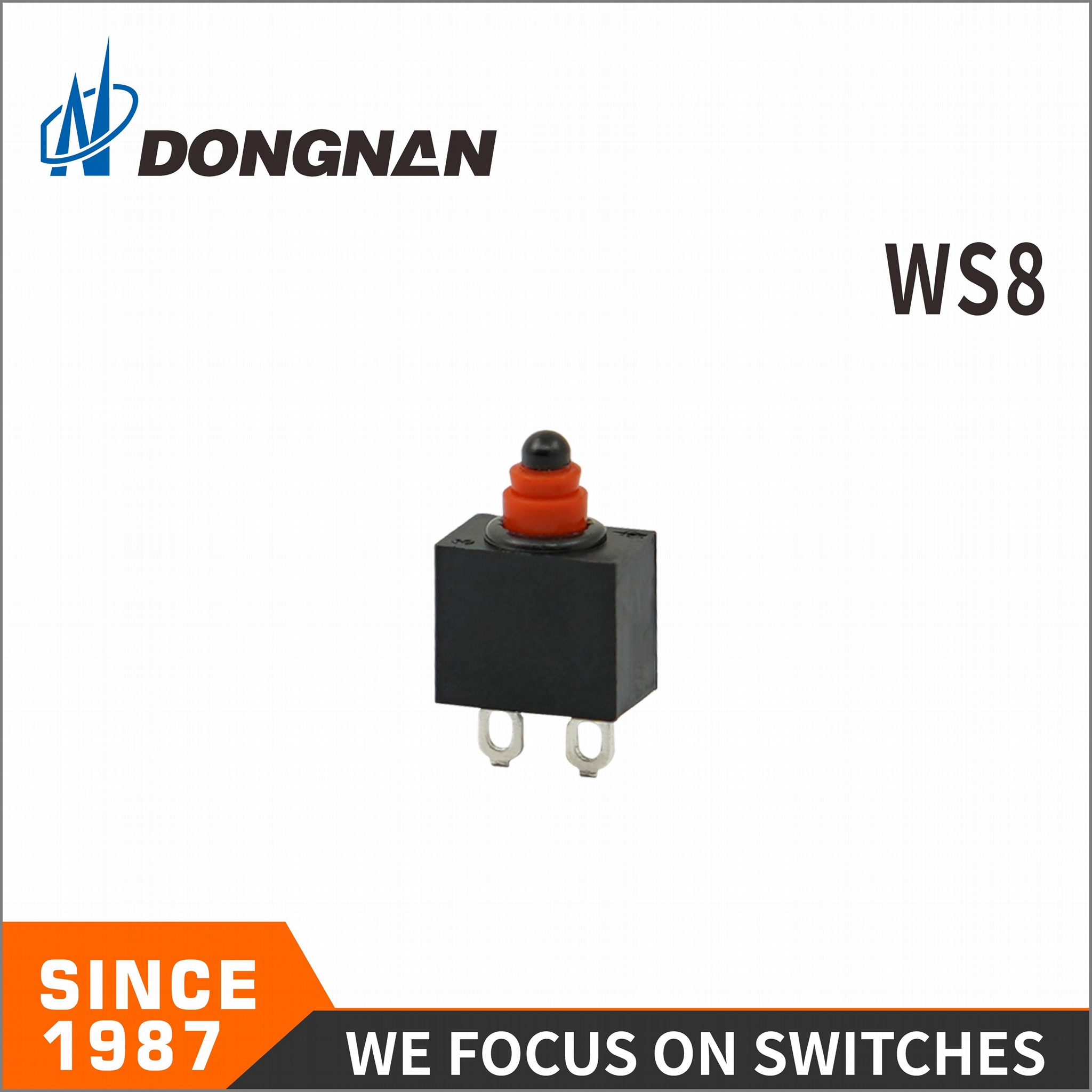

| Model: | WS8 |
|---|---|
| Brand: | DONGNAN |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Switch / Push Button Switch |
| Label: | DONGNAN switch , waterproof switch , switch |
| Price: |
-
|
| Min. Order: | 1000 pc |
| Live Chat: |  | Last Online:28 Oct, 2023 |
The case is equipped with columnless,single side and double side columns to meet different installation requirements.
All kinds of wiring terminals can be equipped with wires that meet the load requirements.
Can be used in car side doors,trunk,hood and home appliance.
| Specifications: | Environment temperature：-45~+85C Relative temperature：95%,40ºC Rating：0.1A 12VDC ;50μA 5V DC Operating speed：1mm ~500mm/s(no lever) Operating speed：Mechanical60 cycles/min; electrical 25cycles/min Insulation resistance：10OMΩ (500VDC) Contact resistance：≤50MΩ |
|---|---|
| Advantages: | Beautiful appearance, simple structure, stable and reliable contact; Smallest size in micro-switch industry dustproof, waterproof. Double-sided sliding contact structure,reliable contact,strong impact resistance. |
| Export Markets: | Global |
| Payment Details: | T/T |
| Min Order: | 1000pcs |
| Ship Date: | 20days |
| Standard Met: | UL, TUV, CQC |
