| Model: | ZB-NZ135A |
|---|---|
| Brand: | ZHIBANG |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Test Bench |
| Label: | folding strength tes |
| Price: |
US $2000
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: |  | Last Online:29 Oct, 2020 |
Introduction

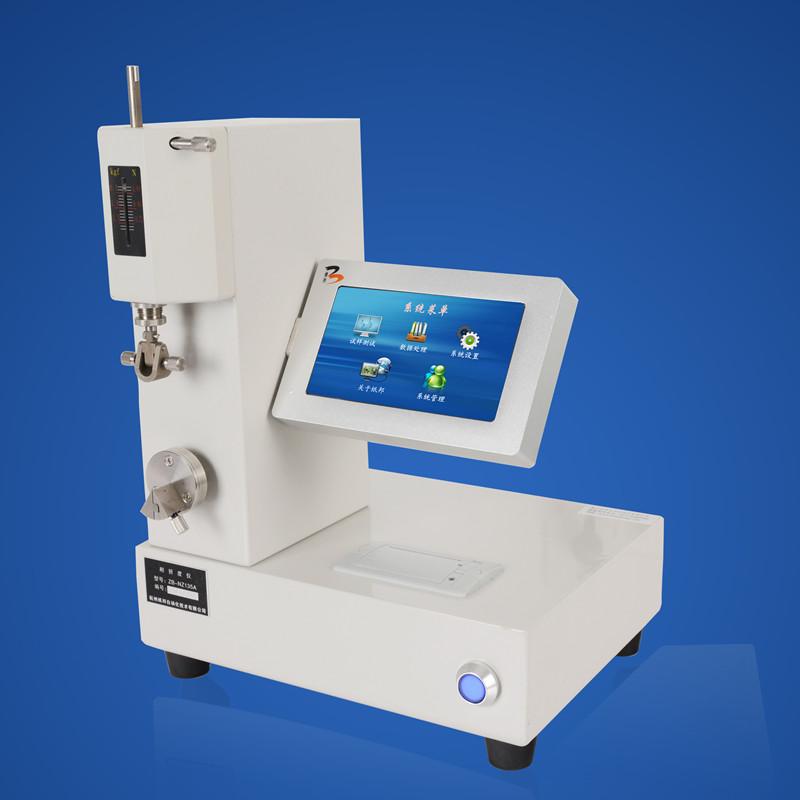

ZB-NZ135A Folding strength tester is used to test the folding endurance of paper,cardboard and other sheet materials.The folding clamp can position automatically .Mechatronics technique,servo motor control,.advanced technology ,completed functions,stable performance,easy to use are the advantages of the instrument. It is the ideal testing machine for papermaking,packing,research and inspection.
Standards
ISO 5626 GB/T 457
Main features
1.Micro-computer control technology, open architecture, easy operation, safe and reliable.
2.Automatic measurements, statistics, print the test results, and has data storage function;
3.Automatically return to zero after the test is completed
4.Electromechanical integration of modern design, compact structure, elegant appearance and easy maintenance.
Main technical parameters
|
Power supply |
AC220V±10% 50HZ |
|
Measuring scope |
0~99999 |
|
Folding angle |
135°±2° |
|
Tensile scope: |
4.9~14.7N |
|
Folding head suture size |
0.25mm 、 0.50mm 、 0.75mm、 1.00mm |
|
Folding radius |
0.38±0.02mm |
|
Dimension |
320*320*450mm |
|
Net weight |
20kg |
| Payment Terms: | TT |
|---|---|
