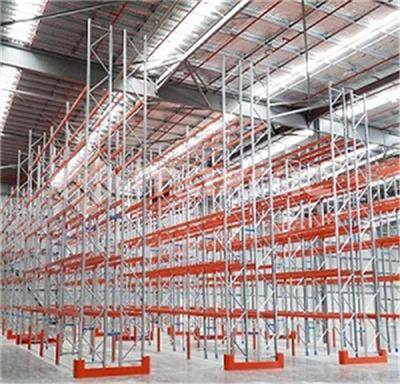

Superlock pallet racking (76.2mm pitch) is the most popular industrial racking in Australia and New Zealand. It’s the most often used warehouse pallet racking and the simplest industrial storage racking system. It compatible with all types and size of pallets along with most types of handling equipment.
The system provides direct access to all pallets for 100% accessibility and good stock rotation. Pallets can be located, accessed and moved individually providing rapid handling of palletized goods.
Our all superblock products are designed and manufactured in accordance with AS4084-2012.
Advantages:
Pre-Galvanised and hot dip galvanised upright & Frame bracing are available.
Direct access to each pallet and simple stock management
Compatible with most types of handling equipment
Beam easily adjust to adapt variable height of pallet
Industrial Storage Racking System Specification:
|
Upright |
80x70, 90x70, 105x70,120x85mm |
|
Hole Pitch |
76.2mm |
|
Box Beam size |
80x50, 90x50, 100x50, 110x50, 120x50,130x50, 140x50,160x50 |
|
Upright Thickness |
1.8/2.0/2.5/2.75/3.0 mm |
|
Beam Thickness |
1.8/2.0/2.5/2.75/3.0 mm |
|
Frame Height |
Up to 12000mm |
|
Beam Length |
Up to 6000mm |
|
Capacity per layer |
500-4000KG |
FAQ:
Please inform us of the following information for quick pallet racking solution:
Drawing(if available)
Size of your warehouse
Size of racking(H*W*L)
Levels of the racking
Loading capacity of each level
(RA) Color
More information can view here.
| Payment Terms: | 30% T/T Downpayment; 70% T/T against B/L Copy by fax |
|---|---|
