MULTI-PURPOSE SMOOTH BODY 120W TOOL-LESS STREET LIGHT FIXTURES 1
  • MULTI-PURPOSE SMOOTH BODY 120W TOOL-LESS STREET LIGHT FIXTURES 1

MULTI-PURPOSE SMOOTH BODY 120W TOOL-LESS STREET LIGHT FIXTURES

Model:-
Brand:ZGSM
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Outdoor Lighting
Label:LED Street Light
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hangzhou ZGSM Technology Co., Ltd

Free MemberZhe Jiang - China
Live Chat:Last Online:30 Oct, 2019

Product Description

MULTI-PURPOSE SMOOTH BODY 120W TOOL-LESS STREET LIGHT FIXTURES

Tool Less LED Street Light

Multi Purpose LED Street Light, Smooth Body LED Street Light

Series L LED Street Light

Model

ZGSM-LD27LMX

Application

Street | Road | Highway | Parking lot | Bridge | Path

1. Wide power range: 27W~120W

2. Special circuit design, single LED’s damage won't affect others' normal work

3. Tool-less open for easy installation, replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

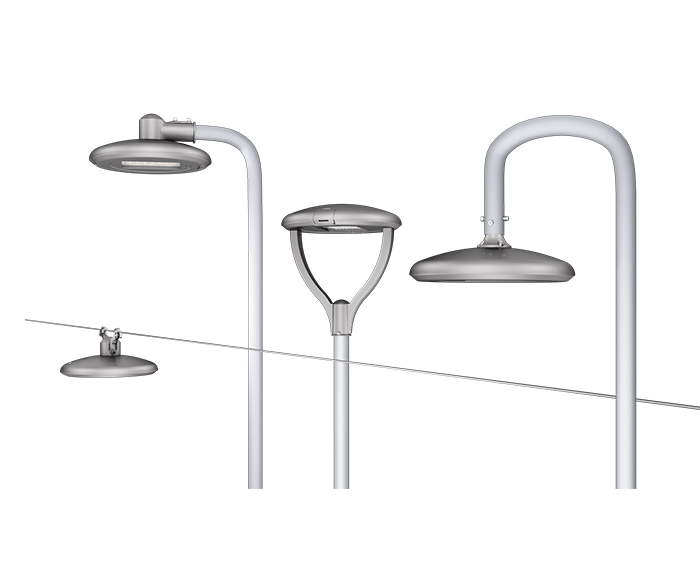

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.

More information you can views here

SPECIFICATIONS

Specifications

Model

ZGSM-LD120LMX( X= A,B,C,D)

LED Brand

LUMILEDS® LUXEON 3030 or 5050

Driver Brand

Meanwell HLG series/ Inventronics

Norminal Wattage

120W

LED Chip Quantity

3030: 168pcs 5050: 84pcs

Input Voltage

100-240/277VAC

Power Efficiency

>90%

Power Factor

>0.95

Lamp Rated Luminous Efficiency

125-145 lm /w

Lamp Rated Lumen output

15000-17400 lm (Lumen tolerance +/- 5%)

Color Rendering Index

70(80 optional)

Color Temperature

3000K or 4000K or 5000K or 5700K

Photometric Type

Type I Medium;Type II Medium;Type III Medium; TypeV, Short

Optimal Operating Temperature

25℃

Storage Temperatures

-40°C~50°C

Working Environment

Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion

< 10%

Lumen Maintenance

> 100,000 hours -L70, @25 ºC (77 ºF)

Wind Index

Force 12

Body and Shell Materials

Die-cast aluminum; Tempered Glass

Pole Fitter Diameter

60mm

Rating

IP66 IK08

Protection

Class I ( Class II optional)

SPD

10KV (20KV optional)

Certification

CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT

Dimming Options

1-10V or DALI or PWM or Timer

Control Options

Photocell or Motion sensor or Smart control

Color Options

Deep grey

Warranty

7 years





PACKING DETAILS

Packing Details

Fixture Dimension

A type: 480X480 X521mm ; D type: 480X480 X240mm

Fixture Weight

7.5 kg

Packing Dimension

495 X 495 X170 mm

Packing Weight

8.8 kg


Payment Terms:TT, LC, WU,Paypal

Product Image
