Description:

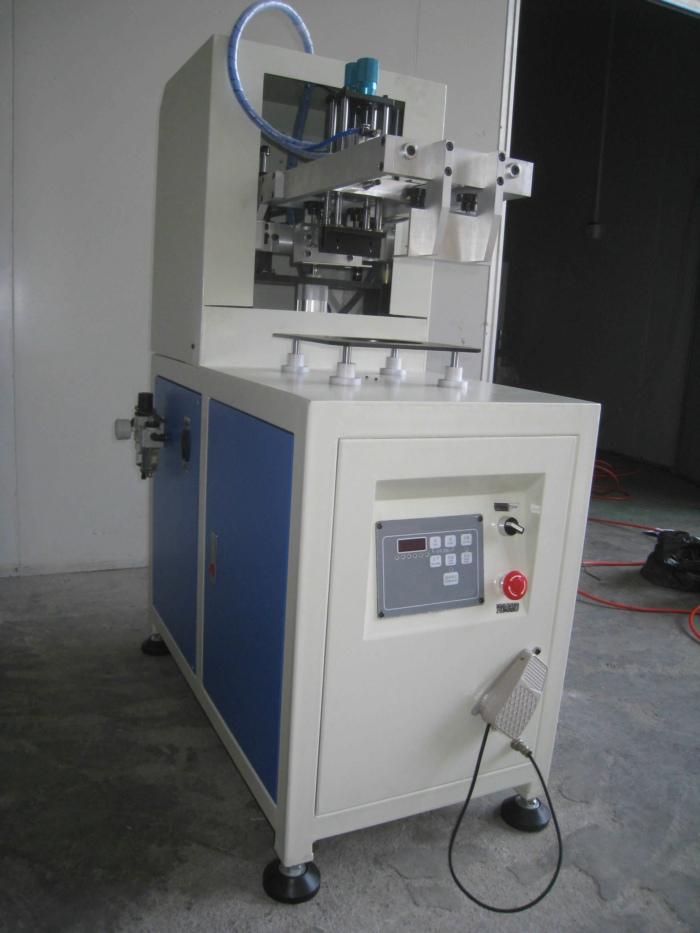

Pneuamtic Single Color Balloon Screen Printing Machine
Feature:
1 Low Electric Consumption; high efficiency and productivity; easy to operate.
2 Linear movement design;
3 Reliable electrical and pneumatic parts;
4 The squeegee works in two modes---front stop and back stop;
5 The printing speed is adjustable as your requested.
6 Machine with air blow.
Parameter:
Max printing Size:150*150mm
Standard Screen Frame size: 210*360mm
Max Screen Frame Size: 280*360mm
Worktable size: 250*250mm
Worktable stroke of Down/up:70mm
Support plate Diameter:150mm
Workable squeegee:5*25mm
Standard Squeegee holder: 100mm
Printing Speed: 1400 pcs/ hour
Power: 50W
Voltage of source: 220V/ 1 phase 50/ 60 HZ
Net Weight: 90Kg
Dimension: 90*60*132cm
Advantage:
1.Machine material: Cast Alloy Aluminum which is lighter and more stable.
2.The screw on the machine which hardness is 12.9 grade more durable.
3.Parts process by CNC or worker. Then accuracy.
