Cone Shape Jar Silk Screen Printing Machine

Model: 650C
Brand:EASY PRINT
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Cone Shape Jar Silk , Screen printing mach
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC Printing Machine Factory Limited

Biz MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:01 Sep, 2021

Product Description

Description:
Cone Shape Jar Silk Screen Printing Machine
Specifications:
1.Power supply:220V /50Mhz
2.Air consumption: 500 Litre/Min
3.Max product printing diameter:180mm
4.Max product arc length:570mm
5.Max printing speed:1200Pcs/Hr
6.Machine size: 1200x700x1250mm(LxWxH)
7.Gross/Net weight:230kg/200kg
8.Packing Size:130*80*140CM
Advantages:
1. Controlled by microprocessor,easy operation,running stably and accurately.
2. 5-digit auto counter built-in.
3. Cast aluminum machine frame,low weight and high idensity,adjust convenient.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Pneumatic part of the installation of the Japan "SMC" Parts,Separate adjustment speed.
Machine Fittings:
1. One frame
2. One tool box,
3. 1 inch squeegee.
4. One jar.
Application Scope:
Model 650 Screen Printing Machine, which is fit for printing on the more bigger size than model 400 machine.
Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc..
Printing objects with larger diameter such as cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell, barrels, buckets,plastic container,water buckets,glass bottle,stainless steel cup and etc.


Product Image

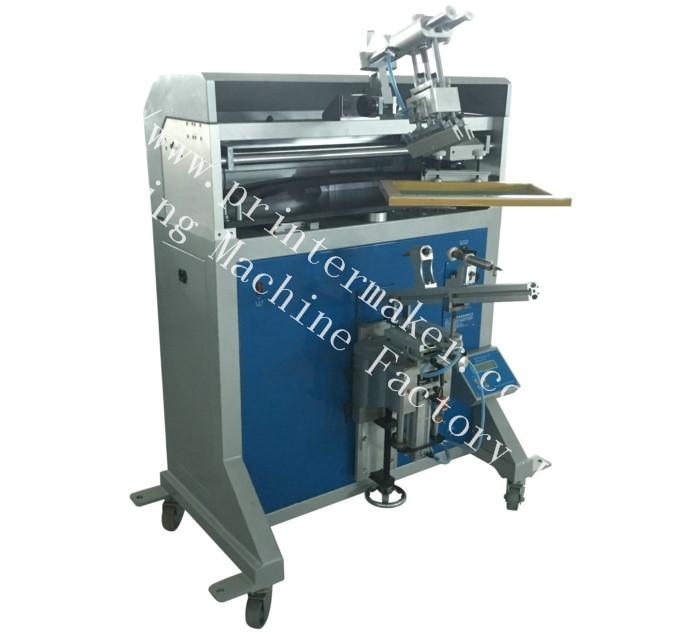

Cone Shape Jar Silk Screen Printing Machine 1
Img 1

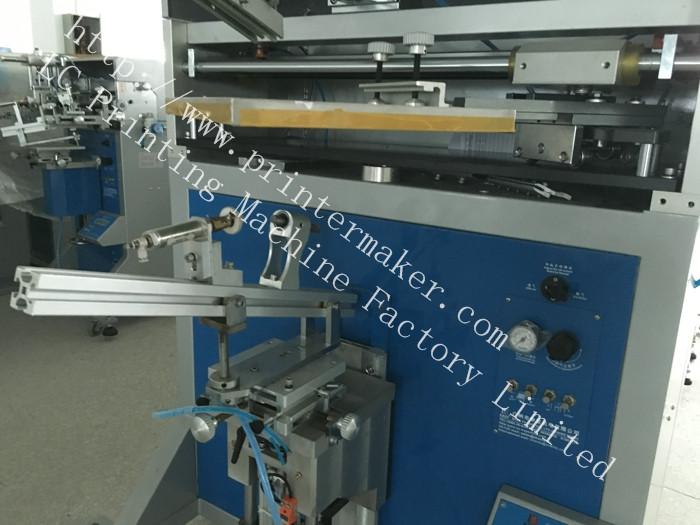

Cone Shape Jar Silk Screen Printing Machine 2
Img 2

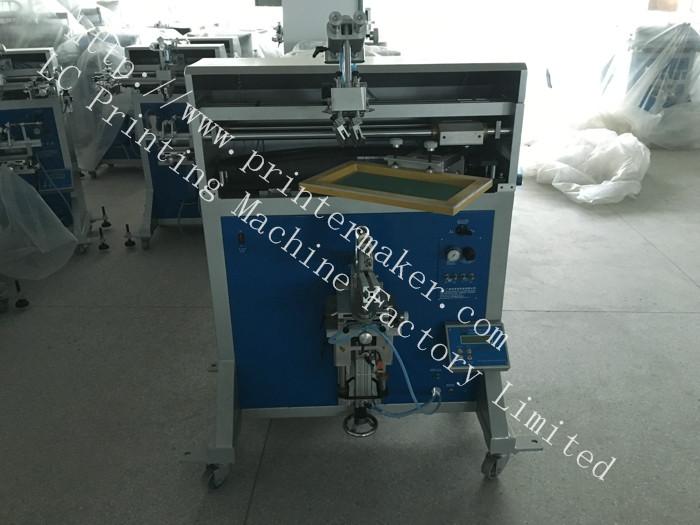

Cone Shape Jar Silk Screen Printing Machine 3
Img 3
Cone Shape Jar Silk Screen Printing Machine 4
Img 4
Cone Shape Jar Silk Screen Printing Machine 5
Img 5
Cone Shape Jar Silk Screen Printing Machine 6
Img 6
Cone Shape Jar Silk Screen Printing Machine 7
Img 7
Cone Shape Jar Silk Screen Printing Machine 8
Img 8
Cone Shape Jar Silk Screen Printing Machine 9
Img 9
Cone Shape Jar Silk Screen Printing Machine 10
Img 10
Cone Shape Jar Silk Screen Printing Machine 11
Img 11
Cone Shape Jar Silk Screen Printing Machine 12
Img 12
Cone Shape Jar Silk Screen Printing Machine 13
Img 13
