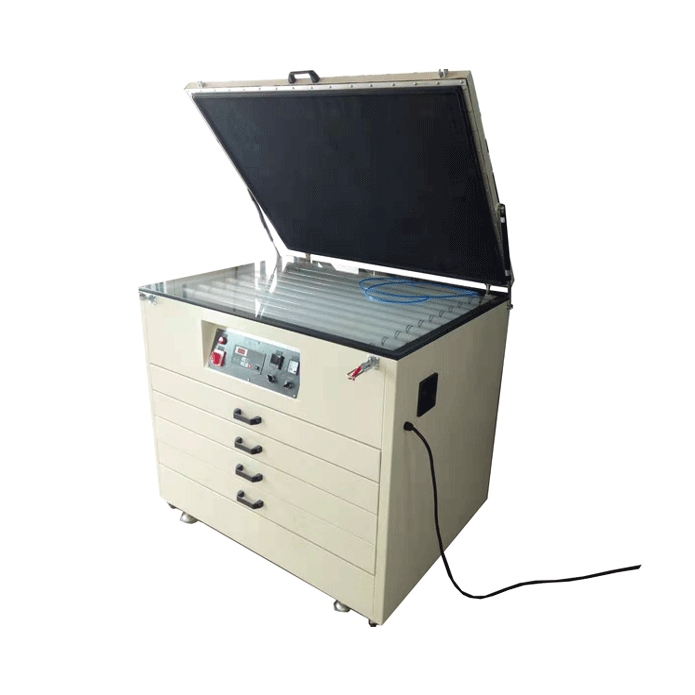

UV exposure and Plate drying closet //Usage and characters

Guide

• In the process of making the screen plate, the processes of exposure and drying are often connected together, and the UV exposure machine and the drying closet also occupy a certain space.
• The UV exposure machine and the drying closet are integrated into one body, and in addition to saving the floor space, the plate making process will be optimized.
• Adopts fluorescent lamps, and the UV energy is not too strong, which requires a long exposure time, and the precision is not as good as that of the metal halide lamp alone in the UV exposure machine,.

Application fields

• Nylon silk plate
• PET Silk plate
• Stainless steel silk plate

UV exposure and Plate drying closet //Parameter

Technical parameters

SM-90120UVEDC

• Drying temperature ：0-60Degree;
• Inner size： 800×1000mm;
• Fan wattage：1KW;
• Heat wattage：3KW;
• Net weight：115KG.

• Drying temperature ：0-60Degree;
• Inner size： 1100×1300mm;
• Fan wattage：1KW;
• Heat wattage：4KW;
• Net weight：135KG.

• Drying temperature ：0-60Degree;
• Inner size： 1400×1800mm;
• Fan Wattage：1KW;
• Heat Wattage：6KW;
• Net weight：168Kg

Works supply

• 3Phase 380V Power supply

Package list

• Outer size:1.20×0.95×1.10m ；
• NET weight: 115KG;

• Package size:1.28×1.02×1.26m ；
• Gross weight: 204KG;
• CBM: 1.645056

H.S.Code

8443198000

Certicate

CE

UV expsoure machine Plate drying coset //Advantage

Function

• UV exposure and plate drying machine, save space and process optimized
• Galvanized steel sheet welding, high temperature environmental paint;

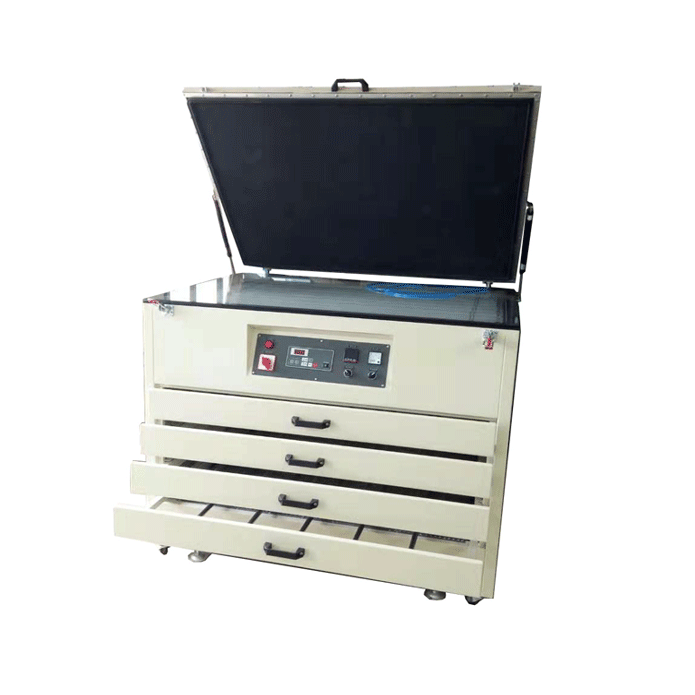

• Drawer structure to facilitate the screen plate of the place and remove;
• layered mesh design, the circular flow of hot air and double-sided drying;
• Asbestos sheet insulation system temperature lasting constant;
• Hot air circulation system to ensure that hot air is distributed evenly throughout the oven to improve the drying efficiency;
• The plane of the screen to place, conducive to the uniformity of photosensitive film layer drying
