Description:

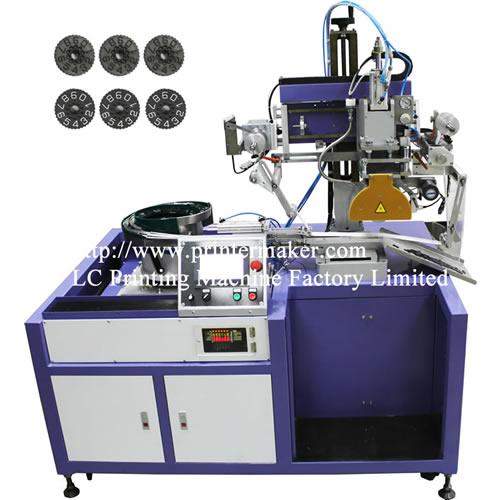

Count wheels Automatic Hot Stamping Machine
Main Features & Technical Specifications
Automatic loading & unloading device,PLC control system,touch sreccn operation panel,User friendly.Including semi-auto., auto., JOG operation options.
Touch screen built in 6 counter , fault alarm message etc.
Motor & photoelectric sensor control feeding foils, with AFTC function（auto. friction tension control system for foils）.
Use precision pressure regulator valve to control printing cylinder action, accurately control printing cylinder's pressure；Servo motor drive printing head assembly movement.
The structure of Rubber roller solftly touching workpiece, reduce punching pressure for workpiece,enhance the stablity & smoothness during in movement.
Non-touch  type of  infrared themal detector with high accuracy, Electronic temperature regulator easily operated for user.
Technical Specifications
Rubber roller size (mm):ø100×60
Themal detecting accuracy(℃):±2
Printing output (pcs/h):10000-12000
Min.width for foil (mm):42
                        foil width less than 64mm
Themal controller (℃):0-400
Power supply:220V 50Hz 2.2KW
Compressed air pressure (bar):5~7
Machine size L×W×H (mm):1600*1100*1859
Machine net weight (kg):495
