Automatic Frequency Conversion High Speed Capping Machine

Model: ALM-1208XG
Brand:EASY PRINT
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Automatic Frequency
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC Printing Machine Factory Limited

Biz MemberGuang Dong - China
Last Online:01 Sep, 2021

Product Description

Description:
Automatic Frequency Conversion High Speed Capping Machine
Model:ALM-1208XG
Technical:
Cap diameter:φ19-55mm
Bottle diameter:φ23-100mm
Bottle Height:45-320mm
Screwing Speed:30-100 bottles/min ( depending on bottle types)
Power:AC220V 50/60Hz 1000W
Weight:650KG
Press Range:0.4-0.6Mpa
Host dimension:2700×830×2190
Weight of capping machine:345kg
Dimension of capping machine:1060*560*2300mm
Feature:
Advanced HMI operating system, PLC control, 304 stainless steel surface;
8-wheel capping in operation makes the screwing speed fast and effectively avoids theft-proofing cap breakage and damage to the bottle caps.
It is possible to cater to varied bottle caps within the scope of this machine without replacement of parts by simply adjusting the synchronous belt, distance between cap screwing wheels and rack height.It applies to varied tall and short bottles which are round, square, oblate.
Applications:
1.It is used for cap screwing of round bottles, square bottles or oblate bottles.
2.It can be used on the independent rack and is suitable for cap screwing at large scale production lines of customers.
3.It applies to customers requiring replacement of different specifications of bottles.




Product Image

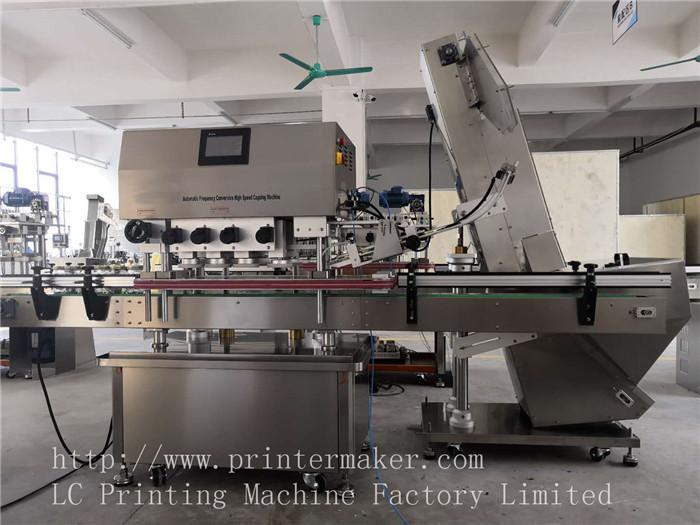

Automatic Frequency Conversion High Speed Capping Machine 1
Img 1

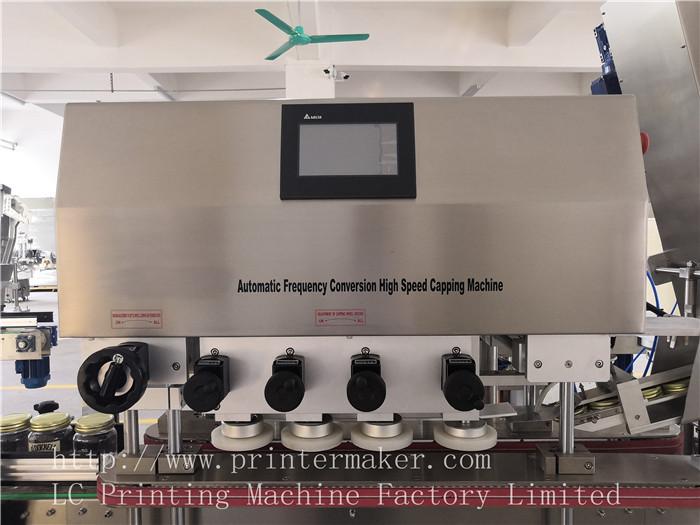

Automatic Frequency Conversion High Speed Capping Machine 2
Img 2
Automatic Frequency Conversion High Speed Capping Machine 3
Img 3
Automatic Frequency Conversion High Speed Capping Machine 4
Img 4
