Electronic Components Packaging Maerials Plastic Reel with Carrier Tapes

Model:-
Brand:JDL
Origin:-
Category:Packaging , Printing & Paper / Packaging Materials / Plastic Packaging Materials
Label:carrier tapes , plastic reel , ps tape reels
Price: US $0.15 / METER
Min. Order:5000 METER
Inquire Now Add to Basket

Member Information

Detail

Jindongli Intellingent Technology (SZ) Co.,Ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:18 Oct, 2022

Product Description

Carrier tape,Cover tape,Plastic reel



Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

Cover tape

Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:

Carrier tape (MM)

8

12

16

24

32

44

56

72

88

Cover tape (MM)

5.4

9.3

13.3

21.3

25.5

37.5

49.5

65.5

81.5

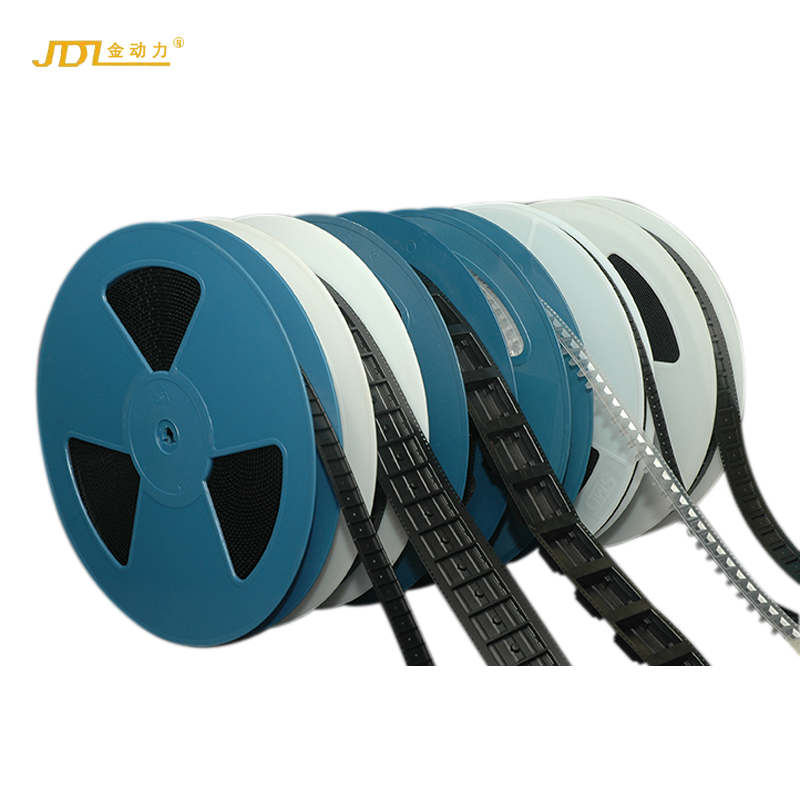

Plastic reel

Environment-friendly PS anti-static materials,blue /black/white

Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.


Product Image

Electronic Components Packaging Maerials Plastic Reel with Carrier Tapes  1
Img 1
Electronic Components Packaging Maerials Plastic Reel with Carrier Tapes  2
Img 2
Electronic Components Packaging Maerials Plastic Reel with Carrier Tapes  3
Img 3
