| Model: | FT-N-J/ N-N -05 |
|---|---|
| Brand: | Futai |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | n female adapter , flange mount adapter , rf coaxial adapter |
| Price: |
US $0.5
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
We can produce the connector according to your drawing or requirement.
Place of Origin: Guangdong,China
Brand Name:Futai

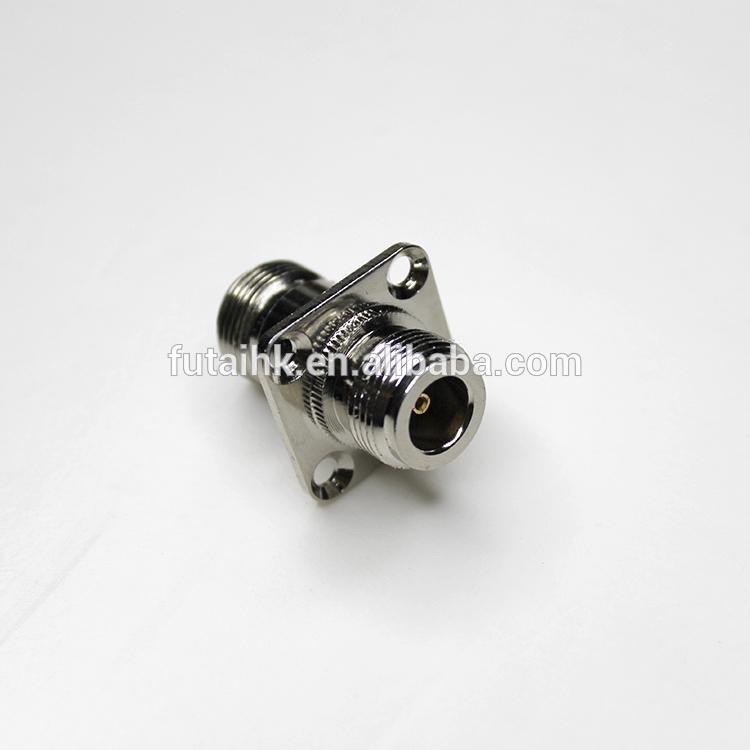

Excellent Performance N Female to N Female with Flange Mount Adapter
N Male to N male Adapter
The connectors are akind of low to medium power connectors,with screw coupling mechanism,are widely used connect of the RF coaxial-cable in electronic equipment and instruments,and can be interchange able with the same-type connectors of abroad.Characteristic impedance 50Ω and 75Ω.
Specifications:
|
Model |
FT-N-J/N-N-058B |
|
|
Major Technical Characteristics |
||
|
Type |
FT-N-J/N-N-058B |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC~11GHz |
|
|
Center conductor retention force |
≥0.56 N |
|
|
Insertion Loss |
0.24dB(6GHz) |
|
|
Voltage Standing Wave Ratio |
Straight ≤1.15/6GHz |
|
|
Right angle ≤1.25/6GHz |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Material & Plating |
||
|
Body |
Brass |
Nickel plated |
|
Pin contact |
Brass |
Gold plated |
|
Socket contact |
Beryllium-copper |
Gold plated |
|
Resilient contact |
Beryllium or tin bronze |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber |
|
Our Company Other Products:
Futai HK Co.,Ltdis specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
We are welcoming you to ask sample for testing ,welcome to our company website to do business.
http://www.futai8.com http://www.gpsgf.com http://futaihk.en.alibaba.com
| Payment Terms: | TT/Western Union/LC/Paypal |
|---|---|
