Tank Conveyor style pad printer SPM4-150/20TK

Model:SPM4-150/20TK
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , lc pad printer
Price: US $4228 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:15 Jan, 2020

Product Description

4 colors pad printer with 20-station tank conveyor//Structure

Working table

20-station tank conveyor -type working table

Shuttle stroke

125mm

Ink supply system

Open inkwell ink supply system

Plate type

10mm steel plates/ plate.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

four colors pad printer with 20-station tank conveyor //Usage and characters

Guide

  • Print both one color to 4 colors with 20-station tank conveyor worktable, printing speed is more fast, suitable for more longer objects;
  • With inkwell to store ink, ink adjustment more simple ;
  • With coin aluminum structure ensure more stabilization and long life.
  • Can print almost small size objects. So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send.
  • Independent Balance blade Technology Ensure ink removing easily . Make min Pressure to remove ink and prolong the life of steel plate

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

4 colors pad printer with 20-station tanke conveyor//Parameter

Technical parameters

SPM4-150/20TK

SPM4-200/20TK
  • Max. plate size: 100×150mm;
  • Max Printing area: 85×130mm;
  • Max. worktable area: 90×125mm;
  • Max. printing speed: 1200pcs/h;
  • Printable colours:4;
  • Stroke of cylinder up-down: 80mm;
  • Stroke of table shuttle: 125mm;
  • Range of table height adjustment: 250m.
  • Max. plate size: 100×200mm;
  • Max Printing area: 85×170mm;
  • Max. worktable area: 90×125mm;
  • Max. printing speed: 1200pcs/h;
  • Printable colours:4;
  • Stroke of cylinder up-down: 80mm;
  • Stroke of table shuttle: 125mm;
  • Range of table height adjustment: 250m.

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package dimension:1.150×0.840×1.410m;
  • Gross weight: 275kg;
  • CBM: 1.36215

H.S.Code

8443198000

Certicate

CE

4 colors pad printer with 20-station Tank conveyor //Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • Tank Conveyor working table installed to get more fast printing speed;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Inkwell  to store and coating ink , ink adjustment more simple;
  • Automatism digital count function;
  • 4 colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Auto balanced doctor blade available for efficient ink scraping

Product Image

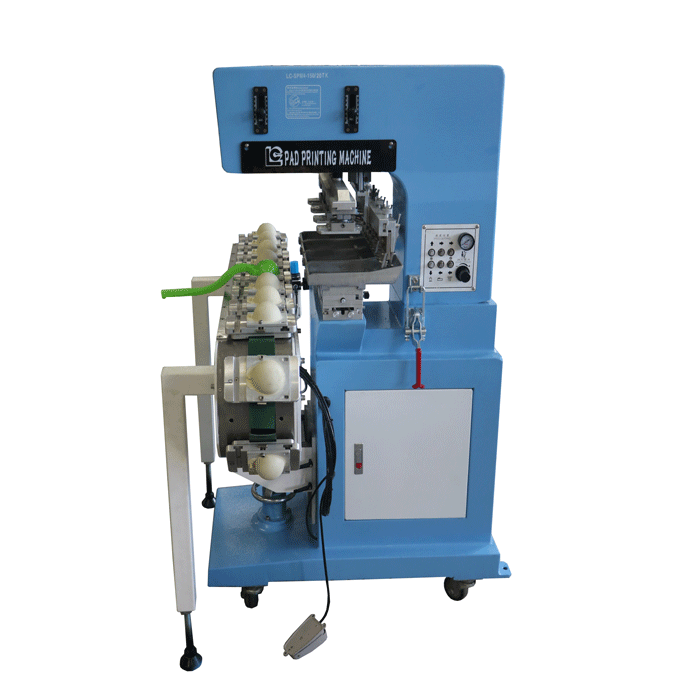

Tank Conveyor style pad printer SPM4-150/20TK 1
Img 1
Tank Conveyor style pad printer SPM4-150/20TK 2
Img 2
Tank Conveyor style pad printer SPM4-150/20TK 3
Img 3
Tank Conveyor style pad printer SPM4-150/20TK 4
Img 4
Tank Conveyor style pad printer SPM4-150/20TK 5
Img 5
