| Model: | SL045006-PP |
|---|---|
| Brand: | INA |
| Origin: | Made In Germany |
| Category: | Industrial Supplies / Industrial Supplies Stocks |
| Label: | SL045006-PP , SL045005-PP , SL045010-PP |
| Price: |
US $67.45
/ pc
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:31 Aug, 2019 |
SL045006-PP 30mmx55mmx34mm double row full complement cylindrical roller bearing, locating bearings
Size:30mmx55mmx34mm
Weight:0.37kgs

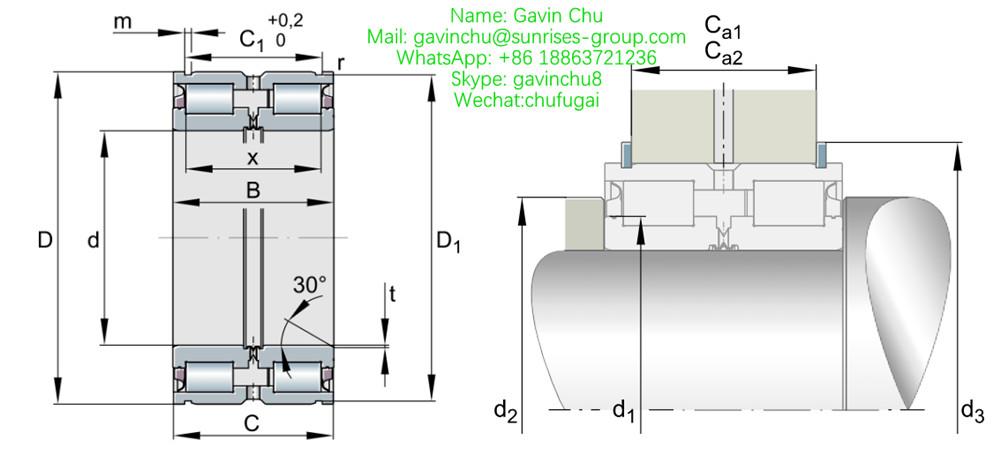

Detailed technical data of SL045006-PP is as below.
| d | 30 mm | |
| D | 55 mm | |
| B | 34 mm |
| 30 ° | Chamfer angle | |
| C | 33 mm | |
| C1 | 28,2 mm | Tolerance: +0,2/0 |
| Ca1 | 25 mm | Mounting dimension for snap ring WRE (not included in delivery)
Tolerance: 0/-0,2 |
| Ca2 | 24 mm | Mounting dimension for retaining ring to DIN 471 (not included in delivery)
Tolerance: 0/-0,2 |
| D1 | 53 mm | Tolerance: +0,2/0 |
| d1 | 41 mm | |
| d2 | 44 mm | |
| d3 | 60 mm | Outside diameter of snap ring WRE |
| da min | 41 mm | |
| m | 2,1 mm | |
| ra max | 0,3 mm | |
| rmin | 0,3 mm | |
| t | 0,5 mm | |
| X | 25,5 mm | Distance between rolling elements |
| m | 0,37 kg | Mass |
| Cr | 50000 N | Basic dynamic load rating, radial |
| C0r | 67000 N | Basic static load rating, radial |
| Cur | 9700 N | Fatigue limit load, radial |
| nG Fett | 4100 1/min | Limiting speed for grease lubrication |
| WRE55 | Designation for snap ring WRE (not included in delivery) | |
| 55X2 | Designation for retaining ring to DIN 471 (not included in delivery |
Detailed technical data of SL045010-PP(50mmx80mmx40mm) is as below.
| d | 50 mm | |
| D | 80 mm | |
| B | 40 mm |
| 30 ° | Chamfer angle | |
| C | 39 mm | |
| C1 | 34,2 mm | Tolerance: +0,2/0 |
| Ca1 | 30 mm | Mounting dimension for snap ring WRE (not included in delivery)
Tolerance: 0/-0,2 |
| Ca2 | 29 mm | Mounting dimension for retaining ring to DIN 471 (not included in delivery)
Tolerance: 0/-0,2 |
| D1 | 77,8 mm | Tolerance: +0,2/0 |
| d1 | 62 mm | |
| d2 | 66 mm | |
| d3 | 87 mm | Outside diameter of snap ring WRE |
| da min | 62 mm | |
| m | 2,7 mm | |
| ra max | 0,6 mm | |
| rmin | 0,6 mm | |
| t | 0,8 mm | |
| X | 30,5 mm | Distance between rolling elements |
| m | 0,76 kg | Mass |
| Cr | 102000 N | Basic dynamic load rating, radial |
| C0r | 151000 N | Basic static load rating, radial |
| Cur | 22100 N | Fatigue limit load, radial |
| nG Fett | 2600 1/min | Limiting speed for grease lubrication |
| WRE80 | Designation for snap ring WRE (not included in delivery) | |
| 80X2,5 | Designation for retaining ring to DIN 471 (not included in delivery |
Detailed technical data of SL045005-PP(25mmx47mmx30mm) is as below.
| d | 25 mm | |
| D | 47 mm | |
| B | 30 mm |
| 30 ° | Chamfer angle | |
| C | 29 mm | |
| C1 | 24,7 mm | Tolerance: +0,2/0 |
| Ca1 | 21,5 mm | Mounting dimension for snap ring WRE (not included in delivery)
Tolerance: 0/-0,2 |
| Ca2 | 21 mm | Mounting dimension for retaining ring to DIN 471 (not included in delivery)
Tolerance: 0/-0,2 |
| D1 | 45,2 mm | Tolerance: +0,2/0 |
| d1 | 35,5 mm | |
| d2 | 39 mm | |
| d3 | 52 mm | Outside diameter of snap ring WRE |
| da min | 35,5 mm | |
| m | 1,8 mm | |
| ra max | 0,3 mm | |
| rmin | 0,3 mm | |
| t | 0,5 mm | |
| X | 22,5 mm | Distance between rolling elements |
| m | 0,24 kg | Mass |
| Cr | 46000 N | Basic dynamic load rating, radial |
| C0r | 60000 N | Basic static load rating, radial |
| Cur | 8300 N | Fatigue limit load, radial |
| nG Fett | 4700 1/min | Limiting speed for grease lubrication |
| WRE47 | Designation for snap ring WRE (not included in delivery) | |
| 47X1,75 | Designation for retaining ring to DIN 471 (not included in delivery) |
Besides SL045006-PP(30mmx55mmx34mm), SL045010-PP(50mmx80mmx40mm),SL045005-PP(25mmx47mmx30mm), for other INA/FAG/TIMKEN/SKF/IKO/NHK/SDVV/KOYO/NACHI/NTN bearings in demand, freely contact me.
