One color pad printing machine with rotating table

Model:SP1-410CR4RS
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:auto pad printer , Automatic printer , Robot pad printer
Price: US $11688 / pic
Min. Order:1 pic
Inquire Now

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Last Online:02 Sep, 2024

View all products. (289)

Product Description

The pad printing machine of the rotary table type is the best-selling pad printing machine on the market at present. It replaces the traditional pneumatically controlled pad printing machine with a circular rotary table controlled by a precision divider, and the rotary table can have 4-6-8-10. Station, transmission accuracy and repeat accuracy have been further improved. As a requirement of automation, turntable pad printing machines can be equipped with automatic feeding manipulators and unloading manipulators to reduce the operator's work intensity. The pad printing machine is also equipped with an automatic cleaning rubber head device to ensure the printing quality. Therefore, the turntable type pad printing machine is an important structural form of the transition from the semi-automatic pad printing machine to the automatic pad printing machine, and is very popular among customers.

Robot pad printer with rotating table//Structure

Working table

4 stations High accurate working table

Ink supply system

Closed cup ink supply system

Plate type

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

Robot pad printer with rotating table // Usage and Characters

Guide
  • 4 stations  high accurate indexing plate  workbench, printing speed more fast;
  • Closed cup for ink store, Protecting workers health.
  • Coin aluminum Structure overall manufacturing, run more smoothly, life more abiding; .
  • PLC operation system
  • Print most products, which are widely applied in electronics, metal, plastic, gifts, furniture, household appliances, toys, jewelry, and other industrial areas;
  • Electromagnetic valve and cylinder with the German and Taiwan products；
  • Automatic rubber pad clean system;
  • Servo robot for different height of conveyor.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Robot pad printer with rotating table//Parameter

Technical parameters
  • Max. plate size: 100×250mm；
  • Max. worktable diameter : 600mm；
  • Max. printing Area: 90×130mm；
  • Max Products Dimension: 100×140mm;
  • Max. printing speed: 1800pcs/hr；
  • Printable color quantity:1;
  • Air consumption: 166Litre/min(6bar)；
  • Station Number: 4。

Works supply
  • 110V-220VPower supply；
  • 5-7Bar Compress air；

Package list
  • Wooden Size:1.78×1.04×1.81m;
  • Gross weight： 365kg.
  • CBM: 3.5

H.S.Code

8443198000

Certicate

CE

Robot pad printer with rotating table //Advantage

Function
  • PLC controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • 4-station high accurate working table with indexing plate  ;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Closed cup to store and coating ink , easily adjust the character of pad ink.
  • One color with double head pad printing , rapidly increase printing speed :
  • Automatic rubber pad clean device ;
  • Robot downloading for products taken .

Application:The pad printing machine of the rotary table type is the best-selling pad printing machine on the market at present. It replaces the traditional pneumatically controlled pad printing machine with a circular rotary table controlled by a precision divider, and the rotary table can have 4-6-8-10. Station, transmission accuracy and repeat accuracy have been further improved. As a requirement of automation, turntable pad printing machines can be equipped with automatic feeding manipulators and unloading manipulators to reduce the operator's work intensity. The pad printing machine is also equipped with an automatic cleaning rubber head device to ensure the printing quality. Therefore, the turntable type pad printing machine is an important structural form of the transition from the semi-automatic pad printing machine to the automatic pad printing machine, and is very popular among customers.

Product Image

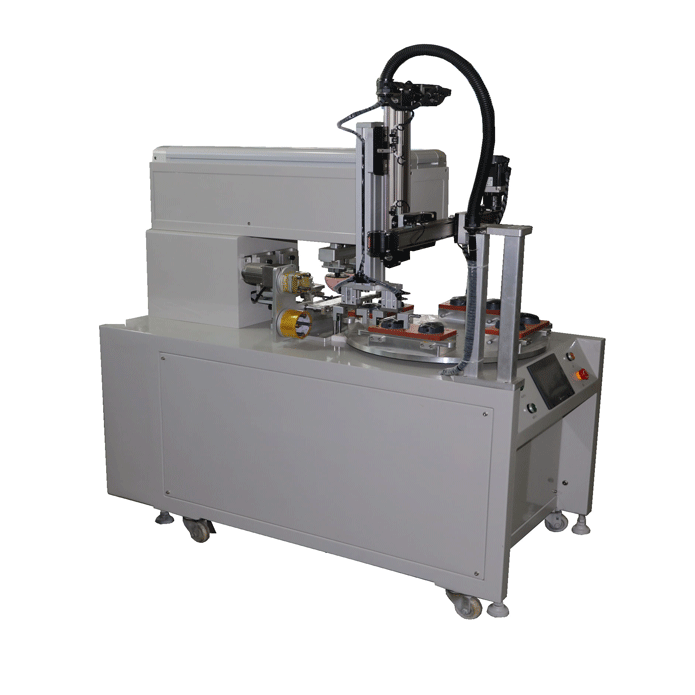

One color pad printing machine with rotating table 1
Img 1
One color pad printing machine with rotating table 2
Img 2
One color pad printing machine with rotating table 3
Img 3
One color pad printing machine with rotating table 4
Img 4
One color pad printing machine with rotating table 5
Img 5
One color pad printing machine with rotating table 6
Img 6
One color pad printing machine with rotating table 7
Img 7
One color pad printing machine with rotating table 8
Img 8
