| Model: | ZX6350 |
|---|---|
| Brand: | Yurun |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | - |
| Price: |
US $3357
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:12 Apr, 2024 |

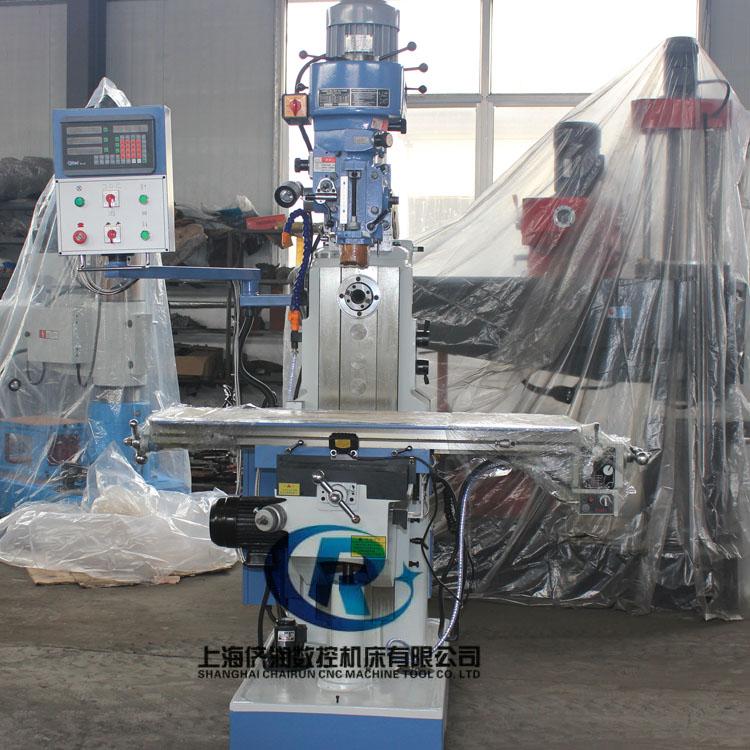

The main performance characteristics：
1. Vertical and horizontal milling head
2.X /Y/Z axis auto feed3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Product main technical parameters:
| Specifications | Units | ZX6350ZA |
| Max. drilling dia. | mm | 50 |
| Max. end milling width | mm | 100 |
| Max. vertical milling dia. | mm | 25 |
| Max.boring dia. | mm | 120 |
| Max. tapping dia. | mm | M16 |
| Spindle taper | 7:24 ISO40 | |
| Distance from spindle nose to table surface | mm | 80-460(Vertical) |
| Spindle speed range | rpm | 90-2000(V) ,40-1300(H) |
| Spindle travel | mm | 120(V) |
| Table size | mm | 1370x320 |
| Table travel | mm | 750x300x430 |
| Main motor power | KW | 1.5(V),2.2(H) |
| Overall dimensions | mm | 1800x1480x2250 |
| Machine weight | Kg | 1450/1560 |
