| Model: | - |
|---|---|
| Brand: | WANHAI |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | barbed wire , IOWA Barbed Wire |
| Price: |
-
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:24 Nov, 2023 |

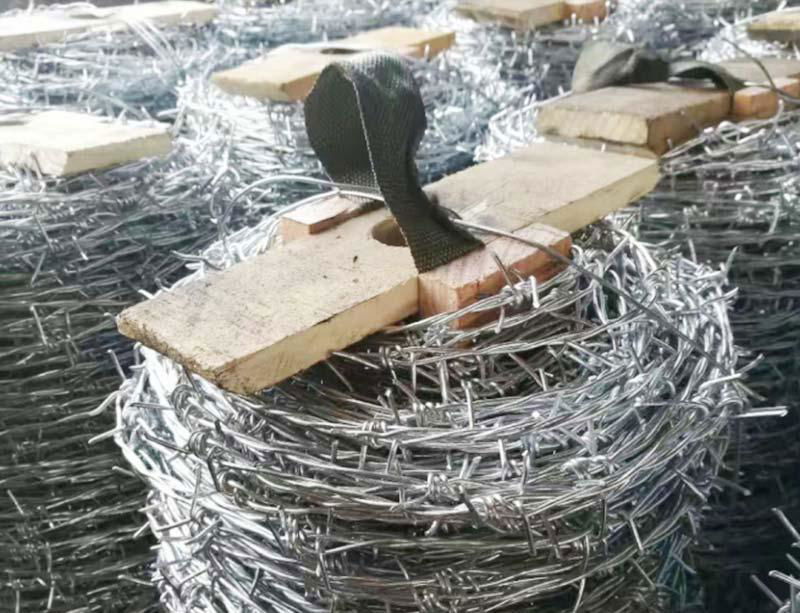

Barbed Wire IOWA Type is the most popular and widely used barbed wire product, available mainly in standard galvanizing or PVC coating materials. The wires are braided with a system of constant torsion, with barb prongs interlaced in the wires. As a traditional product for protection and privacy, barbed wire is widely used in civil and military life. We supply barbed wire made in carbon steel, further galvanized with good corrosion resistance.
Barbed Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Packing: in coils, wooden reel , pallet.
Specifications of Galvanized Barbed Wire & PVC Coated IOWA Barbed Wire
|
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
|
12# x 12# |
||||
|
12# x 14# |
||||
|
14# x 14# |
||||
|
14# x 16# |
||||
|
16# x 16# |
||||
|
16# x 18# |
||||
|
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
|
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
|
BWG11-BWG20 |
BWG8-BWG17 |
|||
|
SWG11-SWG20 |
SWG8-SWG17 |
|||
|
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|
Standard Specification Weight of IOWA Barbed Wire
|
Gauge of
|
Approximate Length per Kilo in Meter |
|||
|
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
|
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
|
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
|
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
|
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
|
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
|
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
|
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
|
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
|
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
|
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
|
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
