| Model: | TO |
|---|---|
| Brand: | LTD |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | bushing insulator , transistor insulator , To 220 bushing |
| Price: |
US $0.01
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:23 Aug, 2019 |

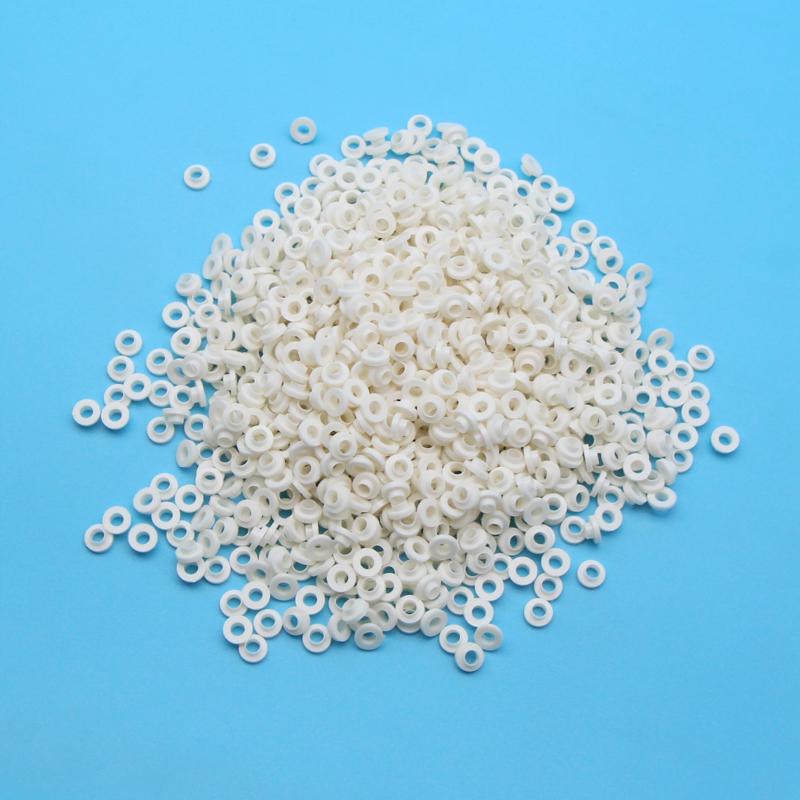

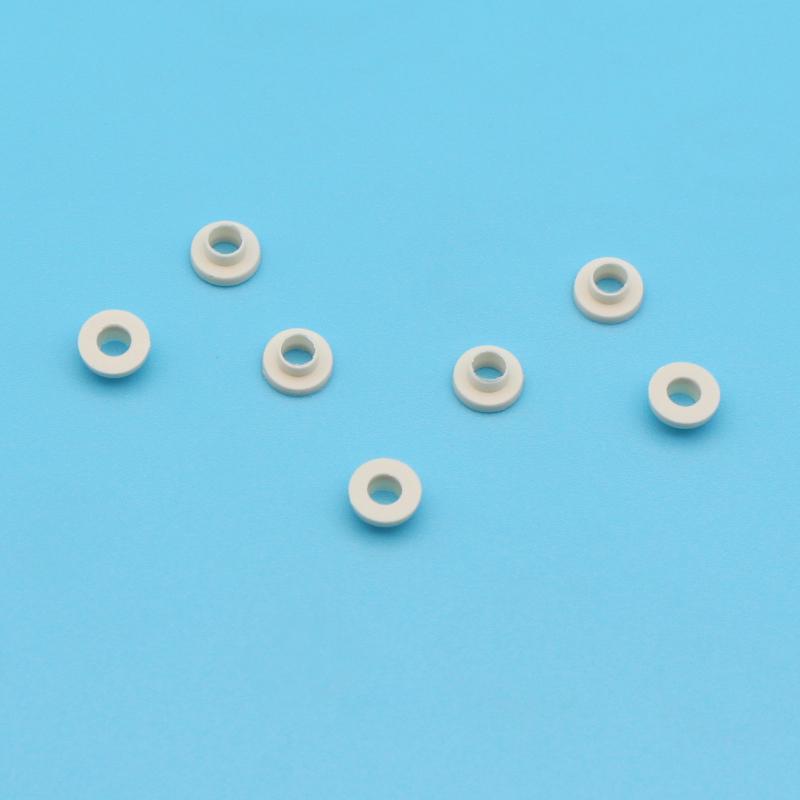

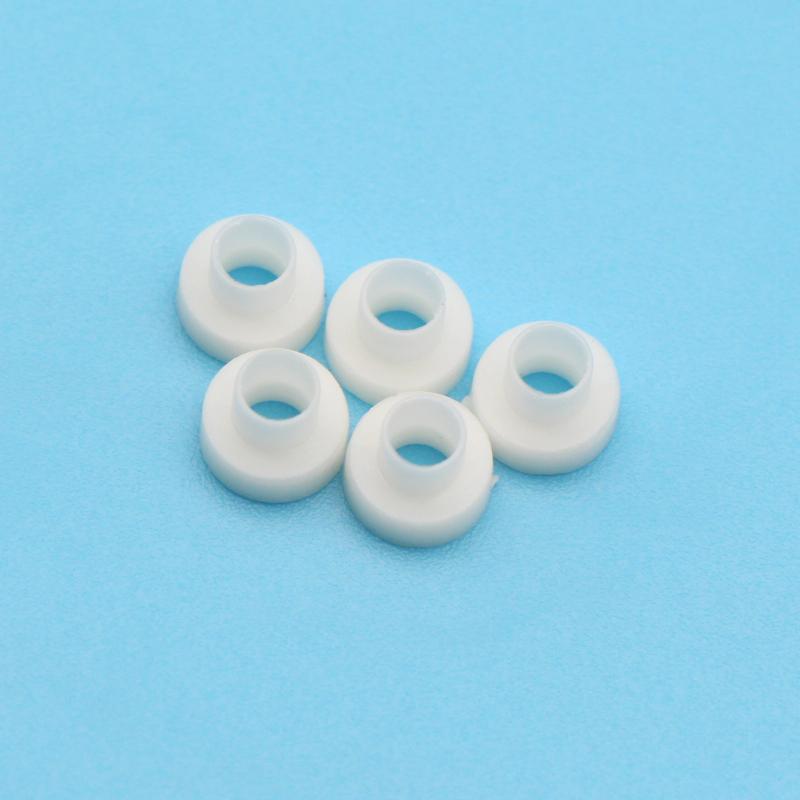

Typical Applications:
Used on screw insulation sleeve;
Locked on transistor to avoid short circuit between the cooling fins of the crystal shell.
Physical Properties:
|
Test ltem |
Test Value |
Unit |
|
Color |
White |
- |
|
Specific Gravity |
1.13±0.1 |
g/cm3 |
|
Hardness |
120±5 |
shore |
|
Voltage Endurance |
≥2.0 |
KV/mm |
|
Continuous Use Temperature |
-50～250 |
℃ |
|
Water Absorption |
1.20% |
- |
|
Package |
1000pcs/package |
|
Model Number:
|
|
A |
B |
C |
D |
E |
|
TO-220 |
6.1 |
3.55 |
3.0 |
1.5 |
1.1 |
|
TO-220A |
6.1 |
3.5 |
3.0 |
2.0 |
1.2 |
|
TO-220B |
6.2 |
3.6 |
3.0 |
2.5 |
2.0 |
|
TO-220C |
6.1 |
3.5 |
3.0 |
2.0 |
2.0 |
|
TO-220D |
6.1 |
3.5 |
3.0 |
1.5 |
1.9 |
|
TO-220E |
6.1 |
3.5 |
3.0 |
1.6 |
1.5 |
|
TO-3 |
8.0 |
3.8 |
3.0 |
2.5 |
2.0 |
|
TO-3E |
12.0 |
7.0 |
4.2 |
3.0 |
2.0 |
|
Material |
NYLON66 |
PBT |
|||
For more , please kindly feel free to contact rita(at)szutd.com
