| Model: | JKS500C |
|---|---|
| Brand: | JK Drilling |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | drilling machine , DTH drilling rig |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Aug, 2019 |

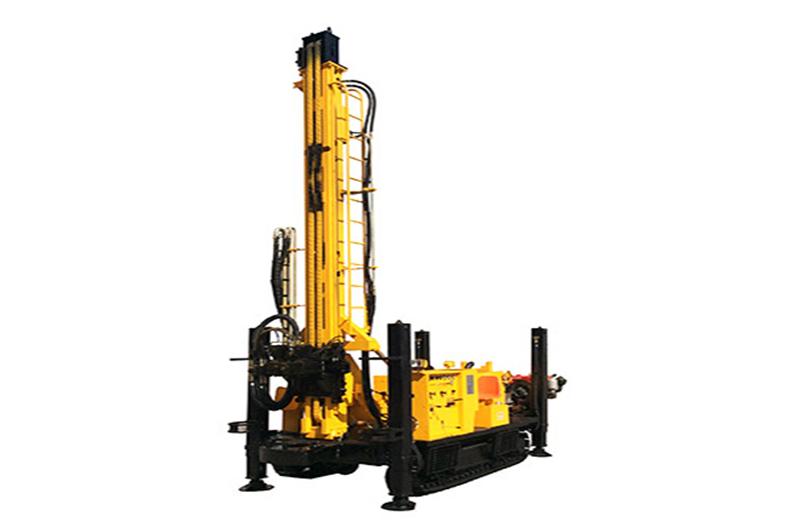

JKS500C Crawler Mounted Versatile Well Drilling Rig
Crawler Mounted Versatile Well Drilling Rig
hydraulic drill rig, Automatic Crawler Mounted DTH Drill Rig
A new, efficient, and versatile hydraulic percussive well rig
Rated Drilling Depth
500m
Site Condition
It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.
Product Features
JKS500C crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, dam and reinforced base, as well as long hole drilling of open pit, anchor reinforcement and defense project.
The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
|
Rated Drilling Depth |
500m |
|
Drilling Diameter |
105-350mm |
|
Working Air Pressure |
1.05-4.5MPa |
|
Air Consumption |
16-60m³/min |
|
Drilling Rod Diameter |
φ89mm, φ102mm, φ114mm |
|
Max. Lifting Force |
25T |
|
Axial Pressure |
±10T |
|
Lifting Force of Small Winch |
1.5T |
|
Lifting Force of Main Winch |
4T (optional) |
|
Rotation Torque |
9500N.m |
|
Rotation Rate |
0-40/80rpm |
|
Feeding Force |
3800mm |
|
Lifting Rate |
0-18m/min |
|
Grade Ability |
15° |
|
Hydraulic Motor |
24kW/380V (optional) |
|
Flow of Foam Pump |
20L/min (optional) |
|
Dimension (L x W x H) |
6800mm x 2250mm x 2650mm |
|
Working Size (W x H) |
3250mm x 7500mm |
|
Weight |
13T |
| Payment Terms: | 30% as prepayment, full payment before delivery |
|---|---|
