V54 FGTech Galletto 4 Master BDM-OBD

Model Name:FG Tech Galletto 2 Master
Version:Newest V54
Test:Stable and strong
Funcation:ECU Programmer


FG Tech Galletto 2-Master V54 BDM-TriCore-OBD is a famous chip tuning tool for all cars trucks motorcycles Marine BDM MPCxx BDM Boot Mode Tricore checksum. This item cannot only work as FGTech Galletto 2-Master but can also work for BDM-TriCore-OBD.

V54 FGTech Software Language: Italiano English Deutsch Francais Espanol Portugues Czech Turkish

FG Tech Galletto 2-Master v54 Features:
1. Support windows xp vista win7 more friendly than Fgtech v53 much easier to operate
2. Unlock version can use directly no need to activate by us
3. FGTECG V54 PCB board


FG Tech Galletto 2-Master v54 Description:
FGTech Galletto 2-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market it is easy to install and use by anyone. Our system comes furnished complete with all Car Truck Motorbyke Marine BDM MPCxx BDM Boot Mode Tricore checksum.

Boot Mode System TriCore:
Infineon Tricore Sak TC1766
Infineon Tricore Sak TC1767
Infineon Tricore Sak TC1792
Infineon Tricore Sak TC1796
Infineon Tricore Sak TC1797
NEW JTAG - BDM - for MOTO - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW
for Moto Freescale MPC 555/556/561/562/563/564/565
for Moto MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
for Moto MC 68376 Campi 01 Lamborghini - Lotus
for Moto MC 68336 MEMS D5 ROVER
for Moto ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode tricore.

Automatic Checksum:
All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10 Boot Mode Infineon Tricore With password for Bosch Siemens
for Moto MC68332 - MCYQQCU - MC68377 MC68376 MC68336 ZC439615 ZC439507
for Moto Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM Tricore.
5-30V Car / Industrial Vehicles L line / K line KWP CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232
RS 485
Automatic setup Pull up K-L line 250 500 1000 ohm
Automatic setup termination Can bus 0 60120 ohm

Master Version:
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

Package including:
1pc x New version main interface
1pc x ECU cable for TriCore boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x BDM connectors
2pcs x Power cable
1pc x OBD2 cable
1pc x USB cable
1pc x CD

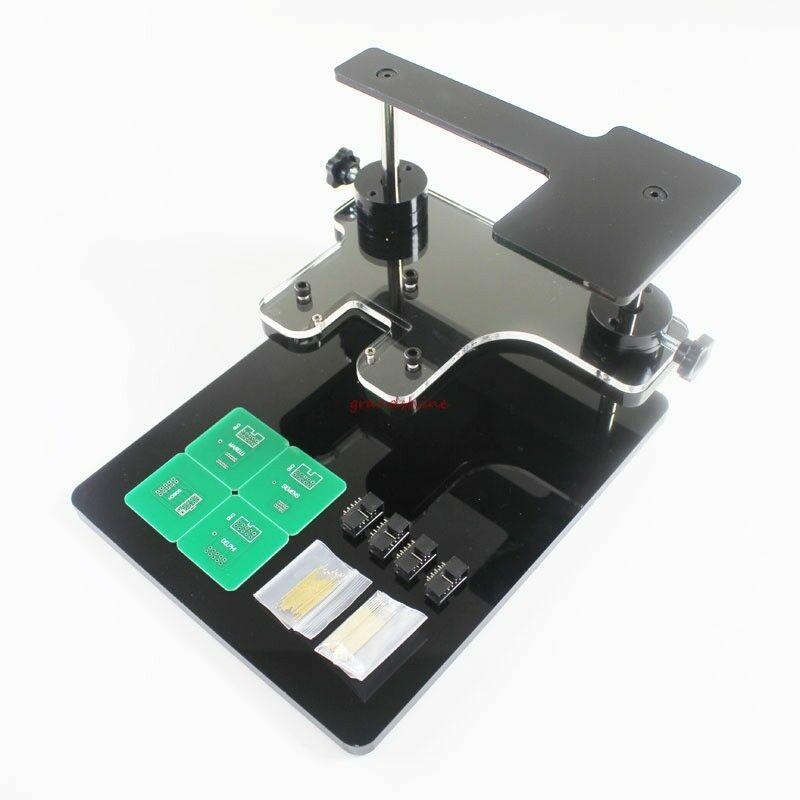

BDM Frame with Adapters Set for FGTECH BDM100 CMD
This BDM FRAME with Adapters Set is made from hight quality Plexiglass , it can be used on FGTech BDM100 CMD Ktag Kess V2 etc.

Package Contents:
1 x BDM frame
1 x BOSCH adapter
1 x SIEMENS adapter
1 x DELPHI adapter
1 x MARELLI adapter
1 x Printed paper setup intruction
other accessories displayed in pictures
