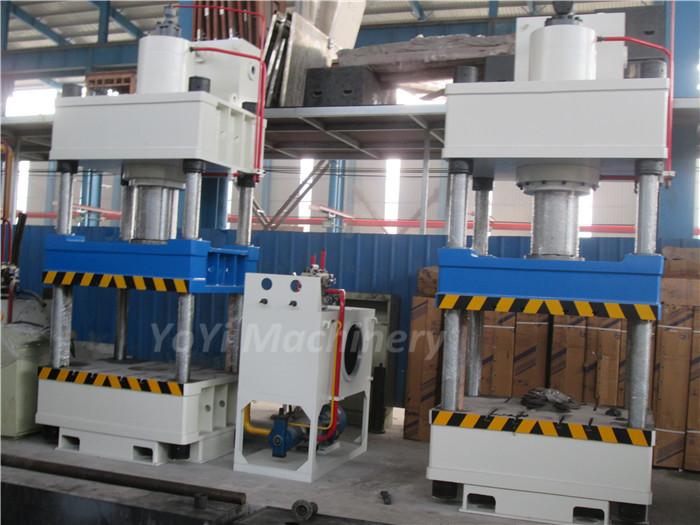

kitchen sink hydraulic press, stainless steel sink dies

1 Usage: hydraulic press for stamping kitchen sink.

2 Structure: three-beam, four-column, double action.

3 Main Technical Parameters:

1) Nominal force: 5000 Kn

2) Enjecting force: 2000 Kn

3) Return force: 205 Kn

4) Slide Stroke: 800 mm

5) Max. working pressure of hydraulic system: 25 Mpa

6) Max. Opening Height: 1200 mm

7) Slider Speed

a. Descending: 150 mm/s

b. Working: 20-30 mm/s

c. Returning: 150 mm/s

8) Effective working table size: 1400 mm × 1400 mm

9) Motor Power: 30KW
