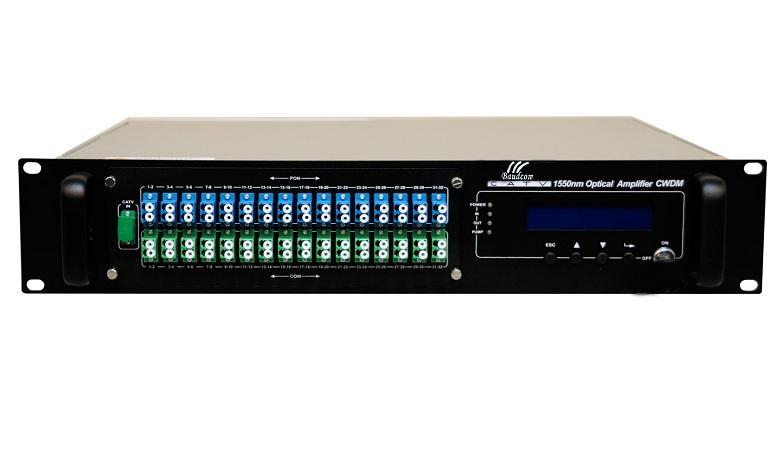

Overview: The Erbium-Doped Fiber Amplifier is a high power optical amplifier. It offers a highly reliable, flexible and low-cost solution for CATV large area coverage of metropolises and medium sized cities, that are high density home pass, especially for FTTH application.The EDFA can work with BAUDCOM or Huawei GPON OLT together, working as total solution.

• Feature:
• High output power, E-Y co-doped
• Warm backup, on-line standby, auto redundancy
• Support ITU channels banding
• Low optical input power, Adjustable output optical power -3dB
• APC / ATC circuit design, built-in high-power optical isolator, mainly used for fiber access network of EPON architecture
• Single/dual input for choice, built in optical switch for dual input, the switching  power can be set by the button in the front panel or by web snmp.
•  Output adjustable by buttons in the front panel or web snmp, the range  is +0.5dBm～-4.0dBm
• Max multi 32 ports, with built in 1310/1490/1550WDM,max total output 37 dBm
• Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in snmp hardware can be reserved for update.
• With laser key to turn on/off the laser.
• With RF test function.
• Adopts  JDSU or Oclaro Pump laser
• Led displays the working condition of the machine
• Dual power hot plug power supply for choice, 90V～250V AC or -48V DC

  Parameter	Value
  Optical Wavelength	1540～1565 nm
  Input optical power	-10～+10
  Total Output optical power	27～40 dBm
  Output ports	4 / 8 / 16 / 32
  Output adjustable range	-5.0～+0.5 dBm
  Flatness	± 1 dBm
  Optical power stability	± 0.2 dBm
  Noise figure	≤ 5.0 dB（optical input power is 0dBm）
  Input / output optical return loss	≥ 50 dB
  Input / output optical isolation	≥ 30 dB
  Input / output pump leakage power	≤ -30 dBm
  Supply voltage	Double power supply  100～265V 50Hz
  Power consumption	≤ 80W
