PTFE spiral wound gasket

Model:ZR-SW700
Brand:SINSTON
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Sealing & Gaskets
Label:spiral wound gasket , PTFE gasket , GFO packing
Price: ¥10 / pc
Min. Order:20 pc
Inquire Now Add to Basket

Member Information

Detail

Cixi Sinston Sealing Material Factory

Biz MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:06 Jul, 2020

Product Description

Spiral-Wound gasket is formed of V-shaped metallic stripe and soft non-metallic filler by means of piled, spiral wound and connected its end and beginning by dot welded. Depend on its excellent compression resilience it is suitable for sealing spots where the alteration of temperature and pressure are frequent. It can be used as the static sealing element of pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc. It has been widely applied in the fields of petrochemical, mechanical manufactory, power station, metallurgy, shipbuilding, medical and pharmaceutical nuclear power station and navigation, etc.
APPLICATION:
We can produce according to ASME, BS, JIS and EN(DIN) standards or client request.


Products

Style

Flange

For example

Basic type SWG

ZR- SW 700

Tongue and Groove

304/PTFE

SWG with inner ring

   ZR- SW 700 IR

Male and Female

304 304/FG

SWG with outer ring

    ZR- SW 700 OR

Raised face

Flat face

304/ASB CS

SWG with inner

& outer rings

   ZR- SW 700 IOR

304 304/FG CS

SWG for heat exchanger

   ZR- SW 700H

Heat exchanger

304/FG with 1 bar of DJ

Special shape SWG

  ZR-SW700S

Special

Oval



Style

Structure

Hoop material

Filler material

Inner & outer ring material

Normal thickness mm

Gasket

Inner & outer ring

ZR-SW700

Without rings

304(L);316(L)

321;317L

31803

Monel,

Ti,Ni

INC

Hast.C/B

Zr702

 etc.

 Graphite, PTFE,

Asbestos

Non-asb

Mica,

etc

CS,

304(L), 316(L),

321;317L

31803

Ti,Ni

INC

Hast. Monel,

Zr702

3.2

4.5

(0.175”)

6.4

2

3

(1/8”)

4

ZR-SW700IR

With inner ring

ZR-SW700OR

With outer ring

 ZR-SW700IOR

With inner & outer rings

SINSTON ZR-SW700 Basic Type Spiral wound Gasket without Ring

SINSTON ZR-SW700 IR Spiral wound Gasket with Inner Ring

SINSTON ZR-SW700 OR Spiral wound Gasket with Outer Ring

SINSTON ZR-SW700 IOR Spiral wound Gasket with Inner Ring and Outer Ring


Product Image

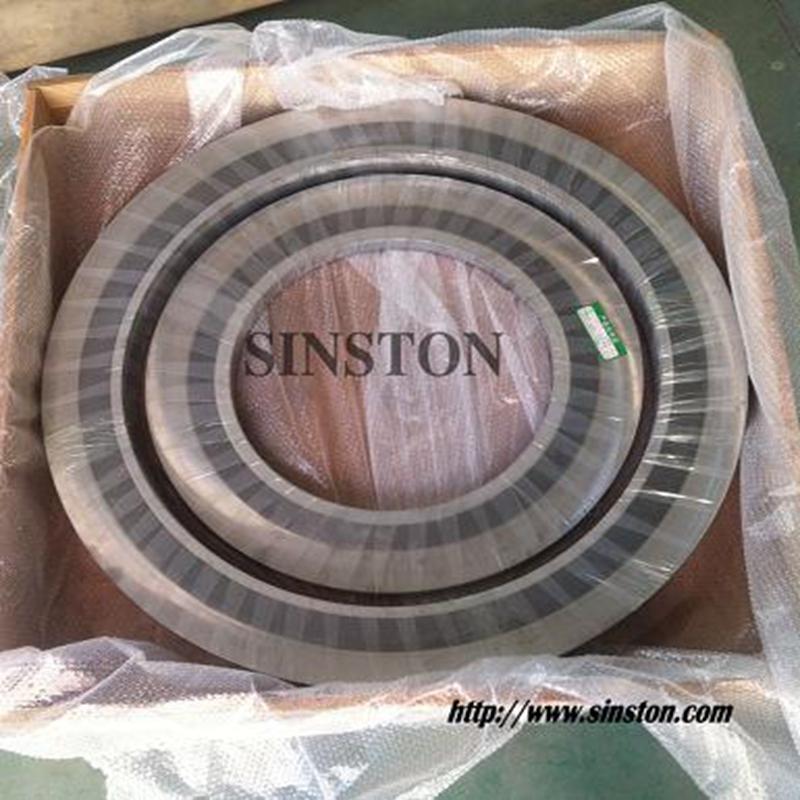

PTFE spiral wound gasket 1
Img 1

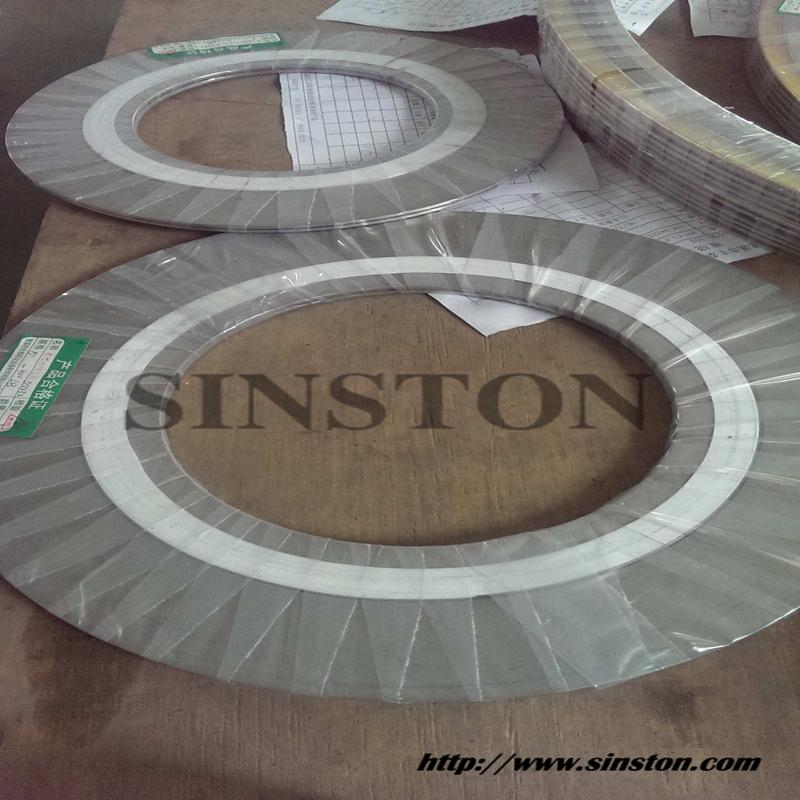

PTFE spiral wound gasket 2
Img 2
PTFE spiral wound gasket 3
Img 3
PTFE spiral wound gasket 4
Img 4
PTFE spiral wound gasket 5
Img 5
PTFE spiral wound gasket 6
Img 6
PTFE spiral wound gasket 7
Img 7
PTFE spiral wound gasket 8
Img 8
PTFE spiral wound gasket 9
Img 9
PTFE spiral wound gasket 10
Img 10
PTFE spiral wound gasket 11
Img 11
PTFE spiral wound gasket 12
Img 12
PTFE spiral wound gasket 13
Img 13
PTFE spiral wound gasket 14
Img 14
PTFE spiral wound gasket 15
Img 15
PTFE spiral wound gasket 16
Img 16
PTFE spiral wound gasket 17
Img 17
