PCB UNLOADER MACHINE FOR SMT PRODUCTION LINE
Product Description
1)Size:L1900*W1730*H1200mm
2)Special aluminum rail and special type plastic chain
3)90W brake motor drive adopts ball screw to make Magazine step up and down
4)With one conveyor set of 0.8M long push plate
5)Pneumatic clamp structure
6)Magazine size is L460*W400*565mm
7)PCB max size is L450*W330
8)Direction: Left-right
9)The lift platform pitch is chosen is 10, 20, 30, 40,50
10)MITSUBISHI PLC programmable controller control
11)Automatic select good and bad board function
12)The control panel is true color touch screen display control;
13)Power supply: 220V 50HZ
14)Air supply: 0.4-0.6MPa
15)One set of electric control box
Product Image

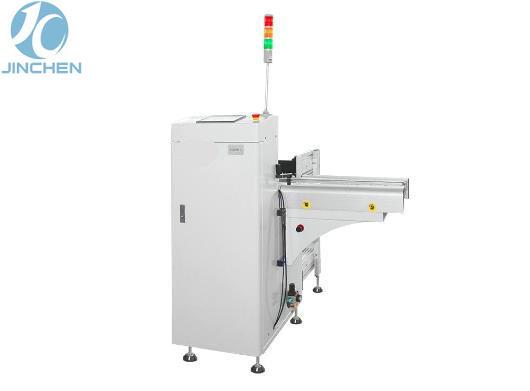

Img 1
