| Model: | SPJ-400 |
|---|---|
| Brand: | Baigong |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Energy / Coal & Charcoal Products |
| Label: | - |
| Price: |
US $3000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Jul, 2019 |

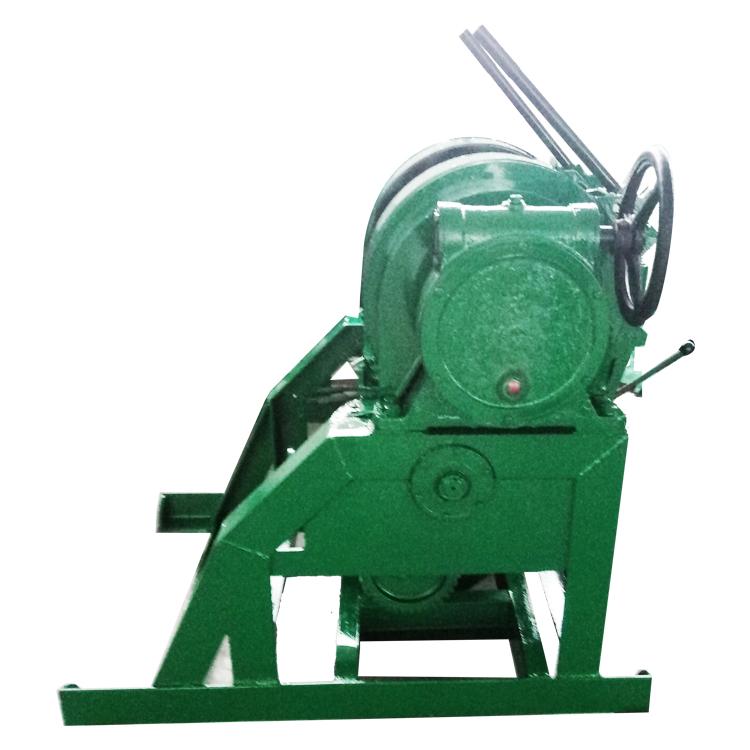

SPJ-400 engineering drilling rig, also known as grinding disc drilling machine, is suitable for drilling operations in water conservancy projects, pile foundation engineering and bridge tunnel engineering.
|
Technical parameters |
Unit |
SPJ-400 |
|
Drilling diameter |
mm |
500-1800 |
|
Drilling depth |
M |
400\50 |
|
Max. output torque |
KN·M |
18 |
|
Main drill pipe |
mm |
108×108×4000 |
|
Drill pipe |
mm |
89×4200、127×108×4200 |
|
Lifting capacity of main hoist |
KN |
30 |
|
Lifting capacity of Secondary hoist |
KN |
20 |
|
Spindle inner diameter
|
mm |
500-1200 |
|
rotary speed |
r/min |
40、70、128 |
|
The vertical height of tower
|
M |
8.6 |
|
Weight |
T |
6.5 |
|
Dimension |
mm |
8400×2050×8000 |
| Payment Terms: | TT/Western Union |
|---|---|
