1.3KW Series Sealed Portable charger

Model:PA1K3M24FB30
Brand:PENGTU
Origin:Made In China
Category:Electronics & Electricity / Power Supply & Distribution / Switching Power Supply
Label:portable charger , power supply , AC/DC converter
Price: ¥700 / piece
Min. Order:50 piece
Inquire Now Add to Basket

Member Information

Detail

Nanjing Pengtu Power Supply Co., Ltd

Free MemberJiang Su - China
Live Chat:Last Online:05 Jul, 2019

Product Description

Product introduction and application areas

1.3KW Series Sealed Portable charger are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters

. Ac input voltage range: 180-260VAC;45-65HZ

. AC max input current: 6A@220VAC

. Power factor: ≥0.98

. Noise: ≤45dB

. Protection grade: IP67

.Working temperature:-30℃~+55℃

.Storage temperature:-40℃~+95℃

Product specifications

.Dimensions:280*132*85mm

. Net weight: 3.0kg

Optional advanced configuration

.Can be with CAN bus;

Can be connected with three-color indicator light;

Charging lock function(The vehicle power system can be locked through the relay during charging process);

Meet the requirements for various occasions.

Multiple protection

.Output over current protection        .Input over voltage protection

.Output over voltage protection        .Input under voltage protection

.Output short circuit protection        .Over temperature protection

.Output no-load protection            .Fully charge automatic shutdown

.Output reverse connection protection   .CAN failure protection

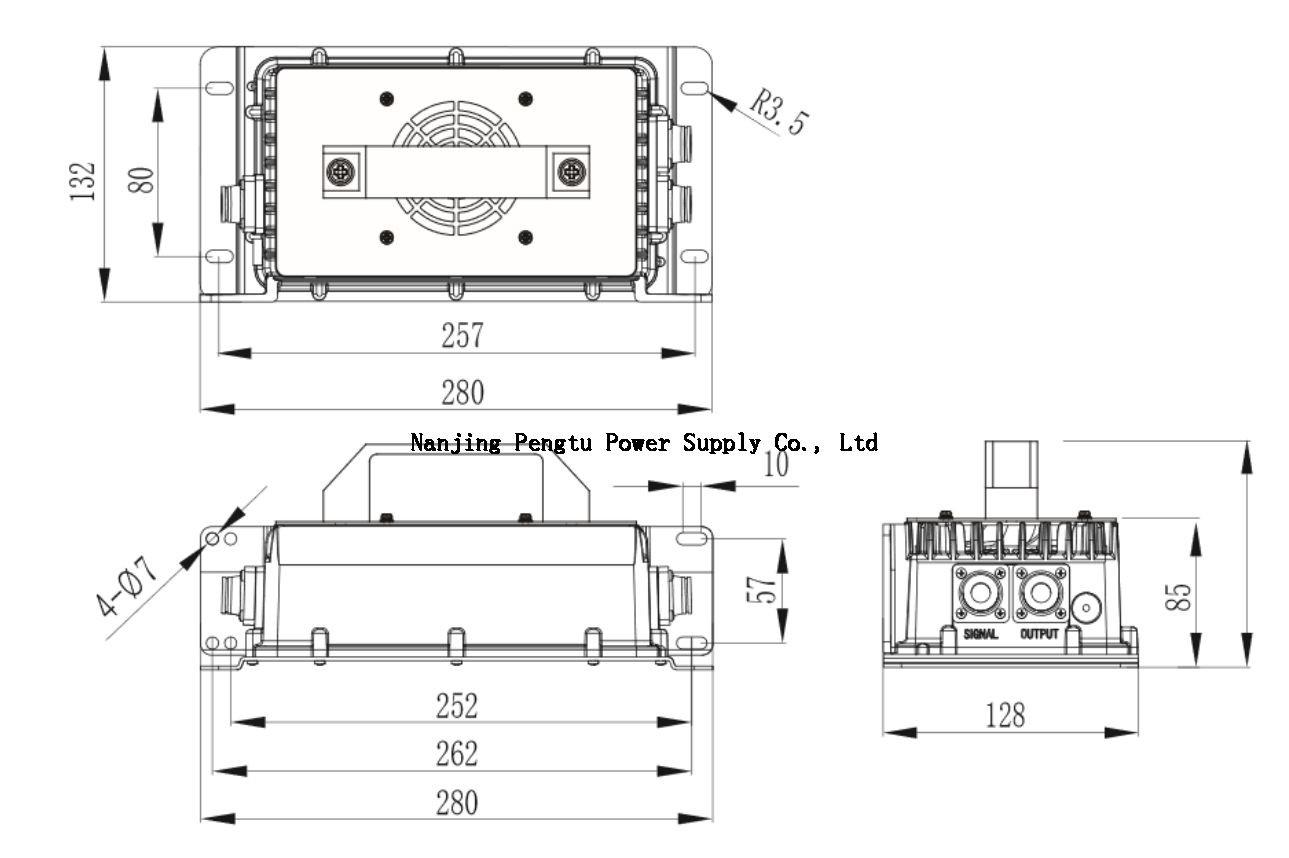

Mechanical Size&Model selection

Item

Battery Rated Voltage

Max Output Voltage

Max output current

PA1K3M24FB30

24V

34V

30A

PA1K3M36FB30

36V

51V

30A

PA1K3M48FB20

48V

68V

20A

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.


Payment Terms:TT/LC/Western Union

Product Image

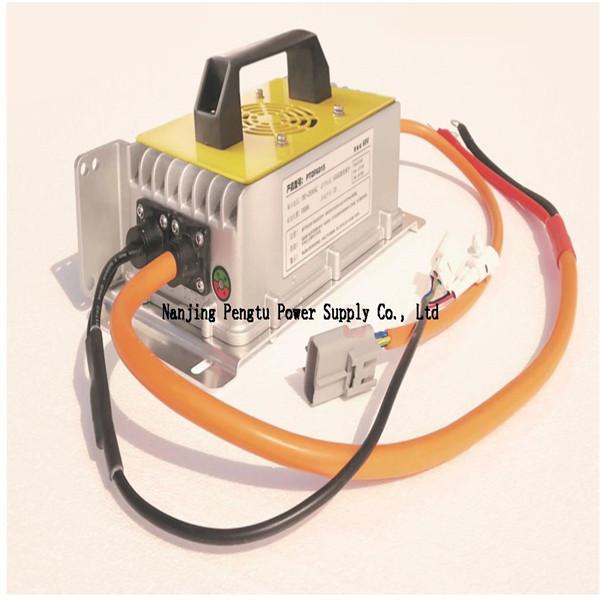

1.3KW Series Sealed Portable charger 1
Img 1
1.3KW Series Sealed Portable charger 2
Img 2
