| Model: | F19613 |
|---|---|
| Brand: | Anxin Intelligent |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | network appliance |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: |  | Last Online:07 Mar, 2024 |
Fanless network Appliance,onboard J1900 CPU, 6 or 10 RJ-45 GbE network ports, one SATA and one mSATA interface, single or redundant power supply
Features
Specifications
Motherboard
| CPU | Onboard Intel Bay Trial J1900 Quad-core CPU |
| System memory | One 204-pin DDR3-L DIMM slots, up to 8GB |
Storage
| Interface | One SATA and one mSATA connectors |
| Hard Drive | One 3.5/2.5" HDD trays |
| CF slot | One CFII slot |
Ethernet
| LAN Port | Six 10/100/1000Mbps RJ-45 ports |
| Ethernet Controller | Six Intel PCIe GbE controllers |
| BYPASS | 2 channels BYPASS |
| Indicator | Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED |
System I/O
| USB | Two USB3.0 |
| COM | One RJ-45 COM |
| Reset Button | One built-in reset button |
| Indicator | One Power LED, one HDD LED |
| Video | Built-in one VGA interface, support hot plug(Internal) |
Power supply
| Power consumption | Built-in 60W power supply |
| Power input | 100 ~ 240V AC input |
| Optional | DC power or Redundant power |
Environmental
| Mounting | Supports rack-mounting or desktop-mounting |
| Operate Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 75°C |
| Operate Humidity | 5% ~ 85% non-condensing @ 40°C |
| Storage Humidity | 5% ~ 95% non-condensing |
Mechanical
| Chassis Color | Black or OEM |
| Front panel | Silver PVC/Aluminum font panel(OEM/Neutral) |
| Construction | 1u chassis, Heavy duty metal |
| Dimensions (D x W x H) | 430x295x44.5mm |
| Weight | 9.6 kg |
Ordering informations
| F19613-B2 | Fanless network appliance, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 60W PSU |

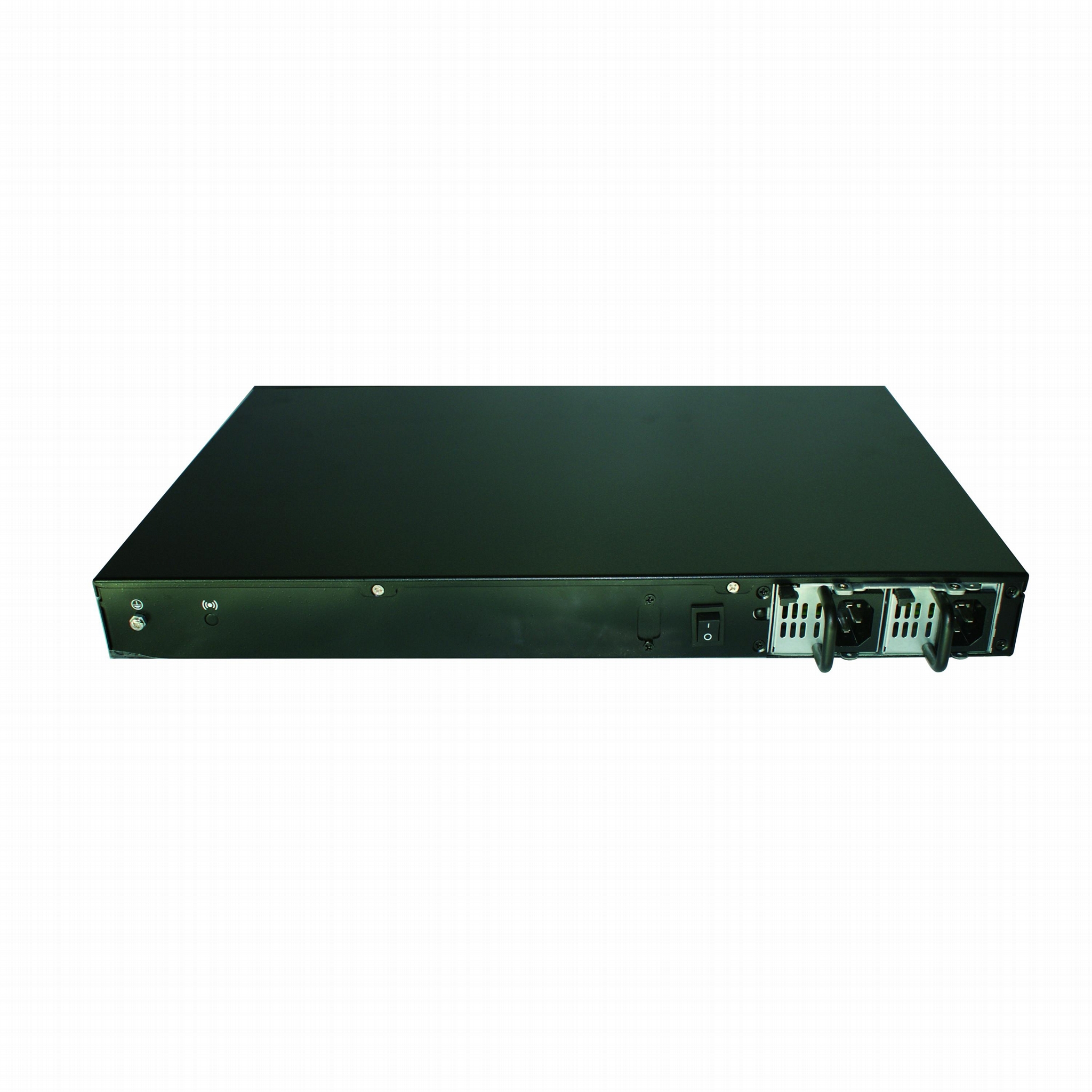

| F19613-B2P2 | Fanless network appliance, J1900 CPU, 6 x GbE RJ45, 2 channels bypass, 70W redundant PSU |
Optional NIC modules
| 58N4 | 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers |
| 58F4 | 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers |
Tags: fanless network appliance 1u with redundant power supply, fanless network appliance
