Feature

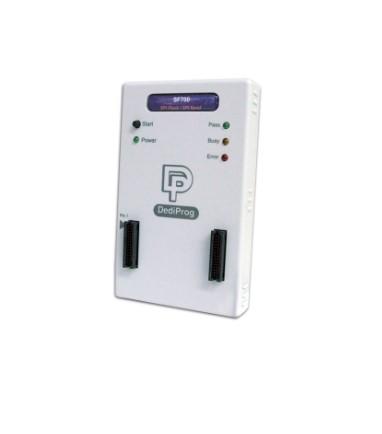

SF700 is an ALL new designed SPI Flash engineering programmer, which supports all SPI NOR Flash and SPI NAND Flash in the market.
SF700 continues to provide strong engineering mode and command line as SF600, DediProg's another programmer, to satisfy the demand for R&D. Apart from the engineering application, SF700 also supports project file for small volume production demand. SF700 can do programming in parallel with multiple programmers or standalone mode.

Highlights

• High-speed programming
  • Built-in high-speed processor to achieve high programming speed.

• Support IC types
  • SPI Octal NOR Flash, SPI NOR Flash, and SPI NAND Flash.

• Support a variety of file formats
  • Binary, Intel Hex, Motorola S19, and ROM, etc.

• Support Command Line
  • Provide Command line for software redevelopment.

• Support Stand-alone mode
  • IC programming without PC.

• ATE Port
  • With ISP adaptor, provide Busy/Pass/Error and Start pins for remote control.

• Support 1.2V low voltage IC.
• Multiple programmers support to program IC in parallel.

ISP-SPI-SF14

ISP-SPI-SF20

Engineering Mode

For engineers and expert to access advanced features for development, repairing etc.

Production Mode

For operators in production to control multiple programmers and improve the throughput.

Command Line

Customer software can control multiple SF700 programmers by command line interface.

Standard Package

• SF700 IC Programmer x 1
• USB Cable x 1
• AC 100~240V to DC 5V/1A Power Adaptor x 1
• ISP-SPI-SF20 ISP Adaptor with ISP cable x 1
• ISP-SPI-SF14 ISP Adaptor with ISP cable x 1
• ISP split cable for SPI Octal NOR Flash x 1
• ATE Split Cable (MA-IDC3B-05F-DUP254-10F-028-A) x 1
• CD-ROM (Include software and user manual) x 1
