Manufacturer Cheap Honeycomb Ceramic as Catalytic Converter Catalyst Substrate

Model:SANHE-CC001
Brand:SANHE
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products
Label:Catalyst Substrate , Honeycomb Ceramic , Catalytic Converter
Price: US $20 / pc
Min. Order:1000 pc
Inquire Now Add to Basket

Member Information

Detail

Pingxiang Sanhe Ceramics Co., Ltd

Free MemberJiang Xi - China
Live Chat:
Last Online:10 Jul, 2023

Product Description

 Honeycomb substrate, also called support, it's one of the components of the supported catalyst. The catalytically active component is supported on the surface of the carrier, the carrier is mainly used to support the active component, so that the catalyst has a specific physical property, and the carrier itself generally does not have catalytic activity.
the honeycomb substrate is mainly used in the automotive and other high-temperature process exhaust. The main material is cordierite, after coated the catalyst, catalytic conversion of the exhaust, so as to achieve the national emission standards. It has characteristics of large surface area, small expansion coefficient, high strength, high water absorption, and good matching with the catalytic active component, heating up fast and so on.
Honeycomb ceramic as a Honeycomb Substrate is an efficient carrier and can achieve good results in specific applications. For example: photo-catalysis, fresh air system, ventilation systems.
Product size can be customized according to customer needs.

Characteristics:
1. Large specific surface area: to ensure full access to the exhaust gas with the catalyst;
2. Stable water absorption: to ensure the catalyst evenly firmly attached to the surface of the honeycomb substrate.
3. Warm-up: after start-up the engine, the temperature of the carrier can reach the catalyst activation temperature in the shortest possible time.
4. Low exhaust resistance: the engine's exhaust resistance is small, to ensure that doesn't affect the engine performance.
5. High strength: the operating environment of the honeycomb substrate is in the bumpy car, so the honeycomb substrate must be high strength without being external damage.
6. Good assembly: the carrier is an exhaust assembly parts, only good appearance and precise dimensions can ensure perfect assembly.

Technical Data Sheet:

Name Index Tolerance Range
Wall Thickness 0.17mm 0.03mm-0.02mm
Volume Weight ≤460G/L ±60G/L
Outside Dimension 25-100mm ±1mm
100-15mm ≤±1%
Perpendicularity   ≤1.0%(height)
Depth of Parallelism   ≤1.0%(height)
Mesh Number 200mesh, 300mesh, 400mesh

Physical and Chemical Properties:

Name Unit Index
Chemical Composition Al2O3 % 35.1±1.6
MgO % 13.5±1.5
SiO2 % 50.0±1.8
Compression Strength A-axis Mpa ≥15.0
B-axis Mpa ≥3.0
C-axis Mpa ≥0.15
Coefficient of Thermal Expansion (20-800ºC) ºC ≤1.5*10-6
Soften Temperature ºC ≤1410
Thermal Shock Resistance ºC ≤550ºC
Water-absorbingrate % 24±4%
Cordierite CrystalContent % ≥90
Open Area % ≥70%

 About us
     Pingxiang Sanhe Ceramics Co., Ltd. lies in Pingxiang city, Jiangxi province, which belongs to one of the five ceramic production export bases in China. The company is a private technology share ceramics manufacturing enterprise founded in 2004. We specialize in honeycomb ceramic plates, honeycomb ceramics heat accumulators, honeycomb ceramic honeycomb substrates, ceramic foam filter and other producing energy conservation and environmental protection series ceramic products.

     Sanhe Ceramics has successfully passed all kinds of certifications such as ISO9001 ISO14001, OHSAS18001 and so on, as well as established perfect quality control system and quality assessment system. Our company has been strictly controlled the whole manufactring system from production planning, processing control to maintenance of equipment as well as from raw material warehousing to quality test of finished products, We offer Stable and qualified products to customers from all over the world. Superiority, uniformity and environmental friendliness of its quality has gained great reputation among all customers. We obey the research and development design production idea of specialization, standardization, internationalization and technicalization, striving to make the products of the company more perfect with stronger customer base.

     Sanhe ceramics Co.,Ltd keeps the faith of "First impression is the last impression" and provides the best quality and comfortable service to all the buyers, No matter the deal is big or small, we are warmly welcome your coorperation. Any inquiries pls contact with us!








Product Image

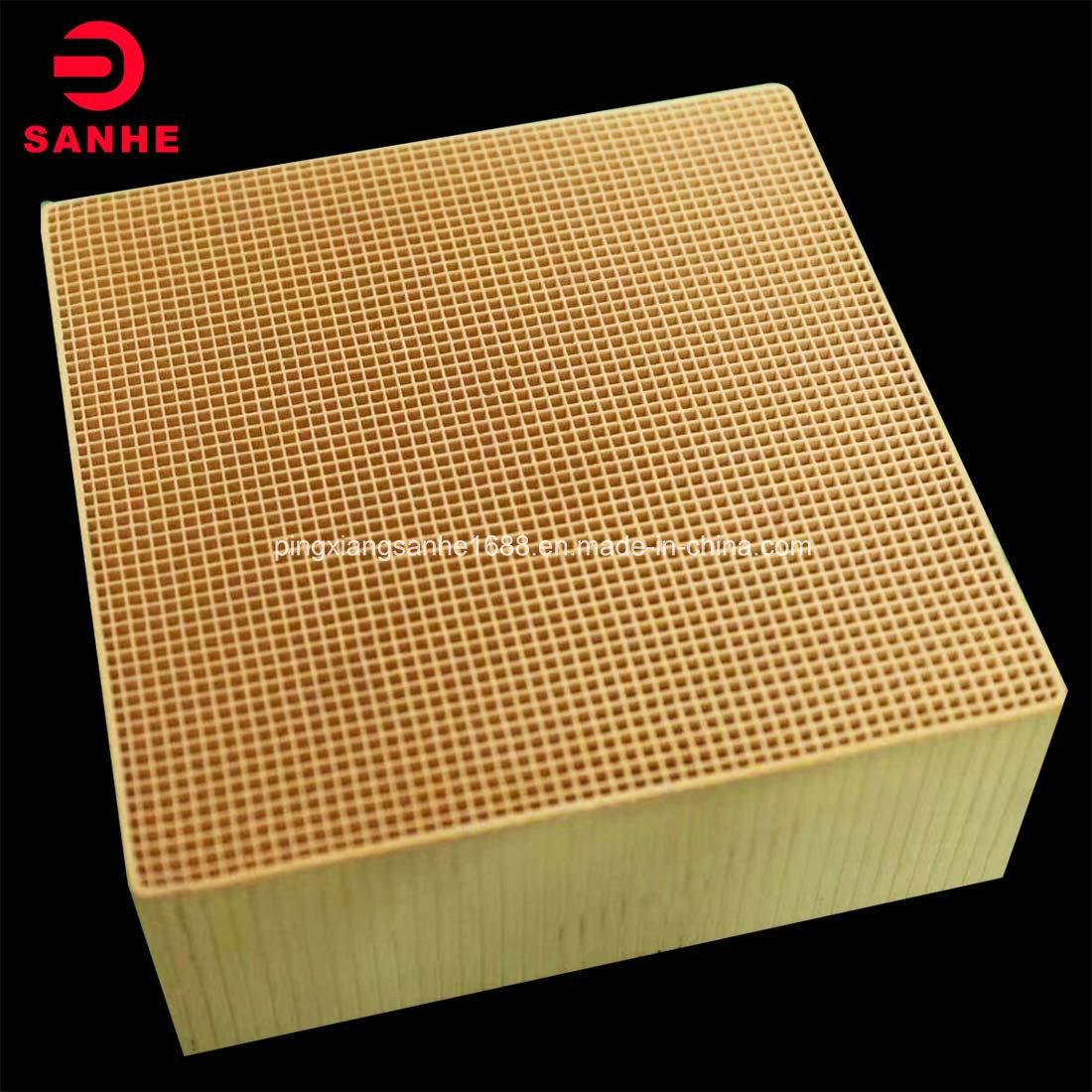

Manufacturer Cheap Honeycomb Ceramic as Catalytic Converter Catalyst Substrate 1
Img 1

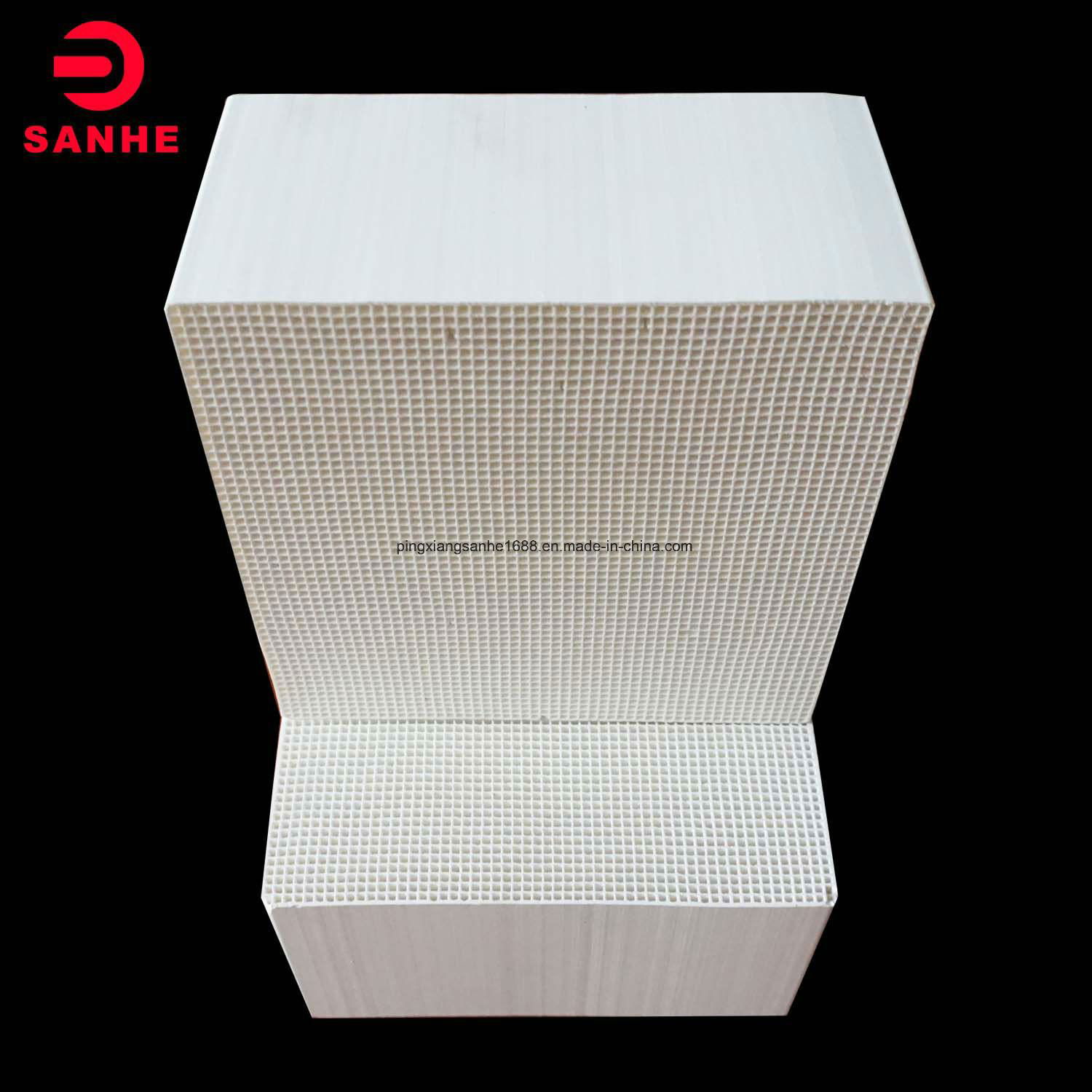

Manufacturer Cheap Honeycomb Ceramic as Catalytic Converter Catalyst Substrate 2
